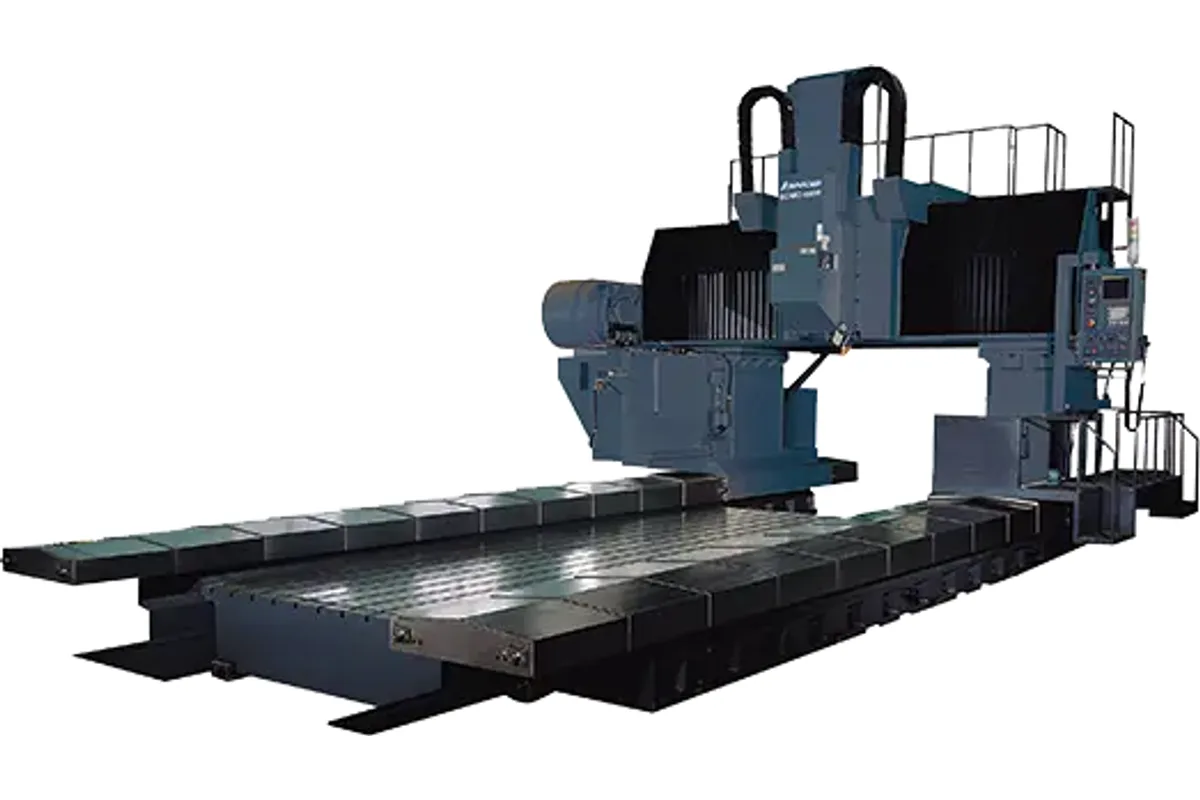

Johnford SDMC-6000x2800x800
Image: johnford.com.tw, Johnford
Key Specifications
Spindle Taper
Tool Capacity
Table Size
Spindle Power
distance between columns
x axis travel
How much does the Johnford SDMC-6000x2800x800 cost?
Price estimate
We do not have a price for the Johnford SDMC-6000x2800x800 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Johnford SDMC-6000x2800x800 is a sliding double column machining center, the portal layout in which the columns travel along X and the workpiece stays on a fixed table. Travels are 6,000 mm (236.2 in) in X, 2,800 mm (110.2 in) in Y and 800 mm (31.5 in) in Z, over a table of 6,000 x 2,200 mm (236.2 x 86.6 in).
A fixed table changes how load is rated. Instead of a total weight, Johnford gives 5,000 kg/m² (1,023 lb/ft²), so a part's weight is limited by the area it rests on and not by what a moving table's drives can accelerate. It also keeps the machine short for its travel: 11,200 mm (441 in) long with six metres of X, where the moving-table DMC-6100SH needs 15,590 mm (613.8 in).
The cutting end matches Johnford's other No.50 double column machines. BT-50 / CAT-50 taper, a Ø90 mm (Ø3.5 in) spindle, 6,000 rpm through a Hi-Lo Gear and 22 / 26 kW (29.5 / 34.9 hp). The magazine holds 40 tools as standard, each up to 20 kg (44 lb).
Two details separate it from the fixed-column range. High-precision linear scales on the X axes are standard, and the external coolant supply is rated 4 bar. Rapids are 10 / 10 / 10 m/min (394 / 394 / 394 ipm). The table lists a W axis of 1,000~2,500 mm (39.4~98.4 in) for the crossbeam, and the maker states that bigger versions of the table and of the X, Y, Z and W axes are all available. For taller parts there is the SDMC-6000x2800x1066 with 1,066 mm (42 in) of Z.
Full Specifications
| Parameter | Value |
|---|---|
| Distance Between Columns | 2,800 mm (110.2 in) |
| Table Size | 6,000 x 2,200 mm (236.2 x 86.6 in) |
| X Axis Travel | 6,000 mm (236.2 in) |
| Y Axis Travel | 2,800 mm (110.2 in) |
| Z Axis Travel | 800 mm (31.5 in) |
| W Axis Travel | 1,000~2,500 mm (39.4~98.4 in) |
| Distance Spindle Nose to Table | 150~950 mm (5.9~37.4 in) |
| Spindle Taper | BT-50 / CAT-50 |
| Spindle Diameter | Ø90 mm (Ø3.5 in) |
| Spindle Speed | 6,000 rpm Hi-Lo Gear |
| Spindle Motor Power | 22 / 26 kW (29.5 / 34.9 hp) |
| Rapid Traverse Xyz | 10 / 10 / 10 m/min (394 / 394 / 394 ipm) |
| Cutting Feed Rate | 1~10,000 mm/min (0.04~394 ipm) |
| Max Tool Diameter Adjacent Pockets | Ø125 mm (Ø4.9 in) |
| Tool Capacity | 40 tools Std. (60, 80, 120 Opt.) |
| Max Tool Diameter (full magazine) | Ø200 mm (Ø7.8 in) |
| Max Tool Length | 400 mm (15.7 in) |
| Max Tool Weight | 20 kg (44 lb) |
| Tool Selection | Bi-direction random type, Shortest path |
| Table Load Capacity | 5,000 kg/m² (1,023 lb/ft²) |
| Machine Length | 11,200 mm (441 in) |
| Machine Width | 6,000 mm (236.2 in) |
| Machine Height | 4,265 mm (167.9 in) |
| Machine Weight | 63,000 kg (138,600 lb) |
Specifications sourced from johnford.com.tw — verified 2026-10-04
Strengths & Limitations
Strengths
- Fixed table rated 5,000 kg/m² (1,023 lb/ft²), so heavy parts do not ride on a moving axis
- 6,000 x 2,800 mm of X and Y travel in a machine 11,200 mm (441 in) long
- High-precision linear scales on the X axes as standard
- 40-tool magazine as standard, with 60, 80 and 120 as options
- 22 / 26 kW (29.5 / 34.9 hp) Hi-Lo Gear spindle, BT-50 / CAT-50
Limitations
- 800 mm (31.5 in) of Z travel; the SDMC-6000x2800x1066 has 1,066 mm (42 in)
- Rapid traverse of 10 m/min (394 ipm) on every axis
- Single spindle speed range to 6,000 rpm in the table
- 63,000 kg (138,600 lb) machine that needs its own foundation
Best For
Frequently Asked Questions
01
A sliding double column (portal) machining center: the columns and crossbeam move along the 6,000 mm (236.2 in) X axis and the table is fixed. Johnford's DMC series is the opposite arrangement, with fixed columns and a moving table.
02
The rating is given per area: 5,000 kg/m² (1,023 lb/ft²) on a 6,000 x 2,200 mm (236.2 x 86.6 in) table. The page gives no total weight, so the limit for a particular part depends on its footprint.
03
Vertical capacity. The SDMC-6000x2800x1066 has 1,066 mm (42 in) of Z travel, a spindle nose to table range of 150~1,216 mm (5.9~47.9 in), a height of 4,531 mm (178.3 in) and weighs 65,000 kg (143,000 lb). The SDMC-6000x2800x800 has 800 mm (31.5 in) of Z, is 4,265 mm (167.9 in) high and weighs 63,000 kg (138,600 lb).
04
5-Face, NC 2-Axis, universal and orthogonal milling heads, a twin spindle 2H version with dual-path control, a B-axis 0.001-degree continuous rotary table in front of the machine table, coolant through the spindle or tool tip at 20 bar, and larger tool magazines.
More from Johnford
Other Vertical Machining Centers (VMC)

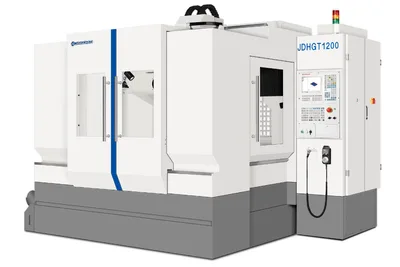

Jingdiao JDHGT1200T(H)
Mazak FJV 5-Face

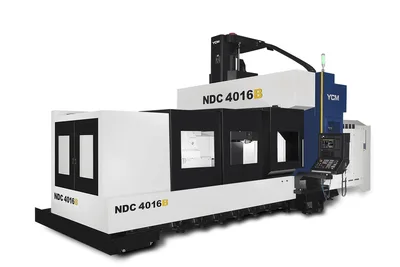

YCM NDC4016B
Hyundai WIA XM2600 Series

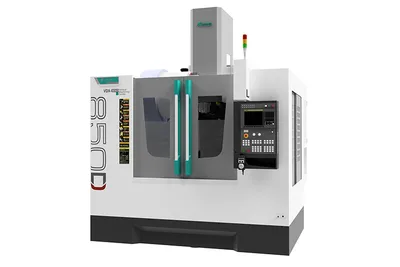

Feeler VDX-850
