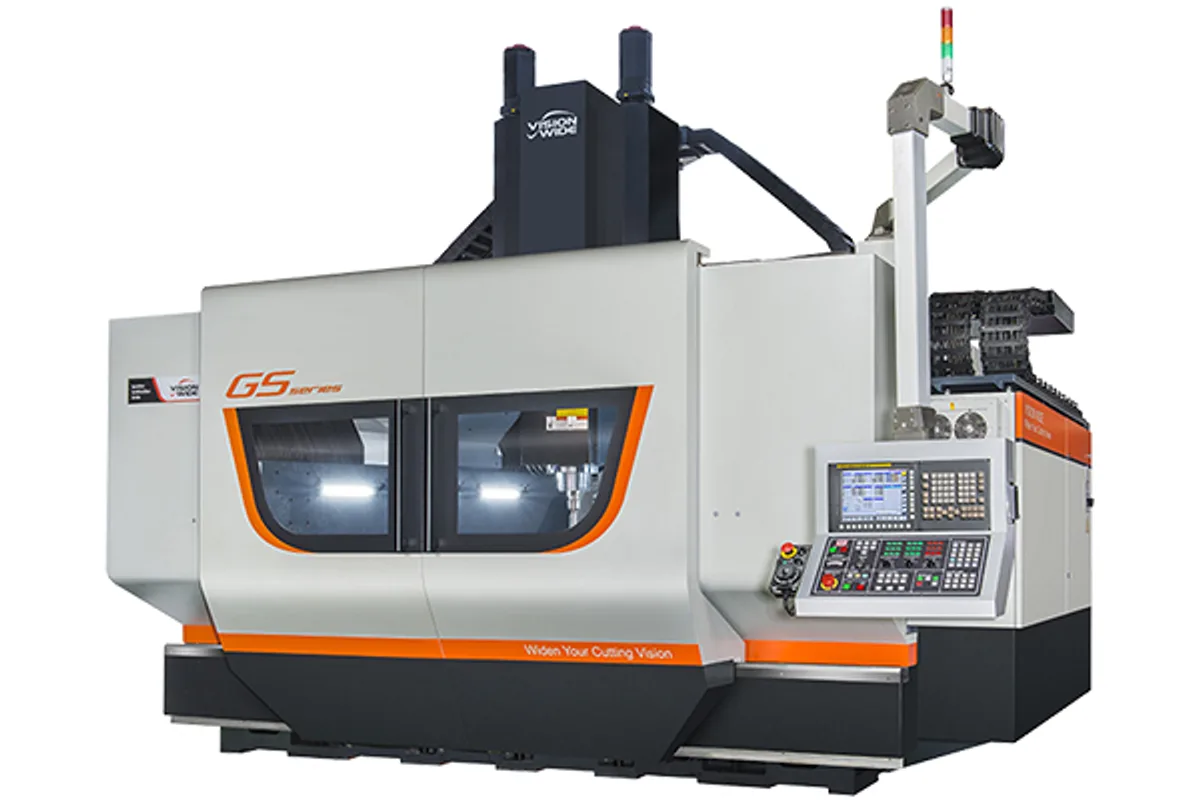

Vision Wide GS-3020
Image: visionwide-tech.com, Vision Wide
Key Specifications
Max Spindle
Table Size
x axis travel
y axis travel
z axis travel
max table load
How much does the Vision Wide GS-3020 cost?
Price estimate
We do not have a price for the Vision Wide GS-3020 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The longest GS is the Vision Wide GS-3020, with 3,000 mm (118.1 in) of X travel, 2,000 mm (78.7 in) of Y and a 3,000 x 2,000 mm (118.1 x 78.7 in) table.
Tooling and measurement need planning on a machine that may run one large part for a full shift. The standard magazine is a 20T tool magazine with arm type ATC, and a 32 tools magazine is the only larger one on the option list. Twenty tools is not many for a mold with roughing, semi-finishing and finishing cutters in several diameters. Auto tool length measurement and auto workpiece coordinate measurement are both optional; on long unattended runs they are what catches a worn or broken cutter before it marks the part.
Chips are dealt with as standard. Vision Wide notes a chain type chip conveyor that removes iron chips efficiently.
Performance figures are the same across the series: 15,000 rpm, 15 / 18.5 kW (20.1 / 24.8 hp), cutting feed of 1-24,000 mm/min and rapids of 24 / 24 / 24 m/min, or 30 / 30 / 24 m/min with the option. Z travel is 800 mm, or 1,000 mm. Table load is 3,000 kg/m2. Beyond three metres, the GSA gantry line starts at a wider 2,700 mm cross travel; the GSA-3027 lists 3,000 mm (118.1 in) of X and 2,700 mm (106.3 in) of Y.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 3,000 mm (118.1 in) |
| Y Axis Travel | 2,000 mm (78.7 in) |
| Z Axis Travel | 800 / 1,000 mm (31.5 / 39.4 in) (Opt.) |
| Table Size | 3,000 x 2,000 mm (118.1 x 78.7 in) |
| Max Table Load | 3,000 kg/m2 |
| Spindle Power Cont 30 Min | L：15 / 18.5 kW (20.1 / 24.8 hp) |
| Max Spindle Speed | 15,000 rpm |
| Cutting Feed Rate | 1-24,000 mm/min |
| Rapid Traverse Xyz | 24 / 24 / 24 m/min; 30 / 30 / 24 m/min (Opt.) |
Specifications sourced from visionwide-tech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 3,000 mm (118.1 in) of X travel, the longest GS
- 3,000 x 2,000 mm (118.1 x 78.7 in) fixed table at 3,000 kg/m2
- Chain type chip conveyor is standard, per the maker
- Optional rapid traverse of 30 / 30 / 24 m/min
Limitations
- Standard magazine is the 20T size and the largest option is the 32 tools magazine
- Tool length and workpiece measurement are options
- Y travel is fixed at 2,000 mm (78.7 in) across the series
Best For
Frequently Asked Questions
01
A 20T tool magazine with arm type ATC is standard, and a 32 tools magazine with arm type ATC is optional. The magazine row of the maker's table is not printed cleanly, so these figures come from the accessory lists.
02
3,000 mm (118.1 in) in X and 2,000 mm (78.7 in) in Y. Z is 800 / 1,000 mm (31.5 / 39.4 in) (Opt.), with the longer stroke as an option.
03
The GSA series is larger. The GSA-3027 has 3,000 mm (118.1 in) of X and 2,700 mm (106.3 in) of Y, and the GSA line continues to 6,000 mm (236.2 in) of X with the GSA-6027.
04
Auto tool length measurement and auto workpiece coordinate measurement are both listed as optional accessories. XYZ axis linear scale feedback is standard.
