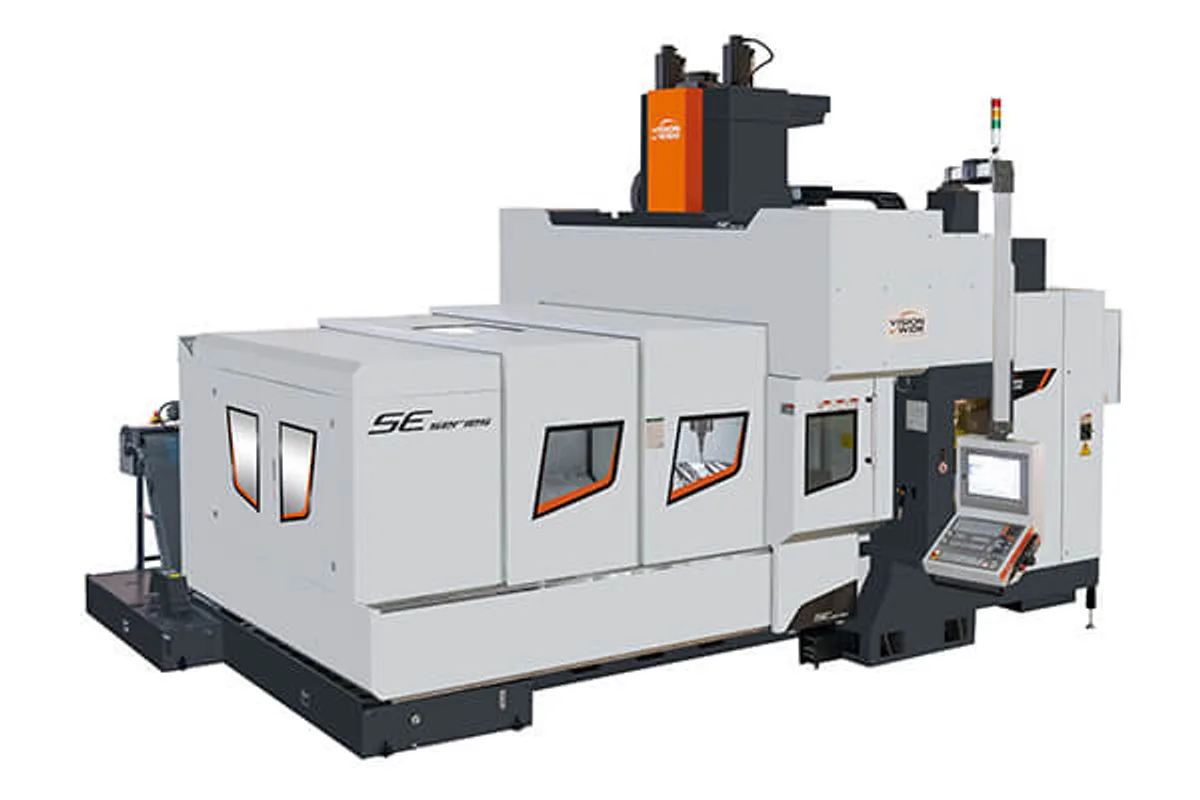

Vision Wide SE-2112
Image: visionwide-tech.com, Vision Wide
Key Specifications
Max Spindle
Tool Capacity
Table Size
x axis travel
y axis travel
z axis travel
How much does the Vision Wide SE-2112 cost?
Price estimate
We do not have a price for the Vision Wide SE-2112 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Scale feedback on all three linear axes comes as standard on the Vision Wide SE-2112, which tells you what the machine is for. This is a high-speed portal machining center for molds and precision plates, with 2,100 mm (82.7 in) of X travel and 1,200 mm (47.2 in) of Y.
Vision Wide states a positioning accuracy P 0.007mm for the SE series. Linear scales read the axis position directly at the slide instead of inferring it from the ballscrew, which is how a machine holds a figure like that while its screws warm up during long finishing passes. The same feature list names delicate surface roughness as a design aim, and on a finishing machine the two go together: a surface is only as even as the positions the axes repeat.
The table is 2,300x1,100 mm (90.6x43.3 in) and takes 10,000 kg (22,046 lb). That is a long, narrow area, a good match for bumper and instrument-panel inserts or rows of smaller cavities.
The spindle turns 15,000 rpm on 15/ 18.5 kW (20.1/ 24.8 hp). Feed reaches 24,000 mm/min in the cut. Twenty-four tools are standard, and the table marks 20, 32 and 40 as optional capacities.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 2,100 mm (82.7 in) |
| Y Axis Travel | 1,200 mm (47.2 in) |
| Z Axis Travel | 800/1,000 mm (31.5/39.4 in) (Opt.) |
| Table Size | 2,300x1,100 mm (90.6x43.3 in) |
| Max Table Load | 10,000 kg (22,046 lb) |
| Spindle Power Cont 30 Min | 15/ 18.5 kW (20.1/ 24.8 hp) |
| Max Spindle Speed | 15,000 rpm |
| Cutting Feed Rate | 1-24,000 mm/min |
| Rapid Traverse Xyz | 24/30 m/min (Opt.) |
| Tool Capacity | 24 pcs (20/32/40 pcs Opt.) |
Specifications sourced from visionwide-tech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- XYZ axis linear scale feedback is standard
- Stated positioning accuracy P 0.007mm for the series
- 2,300x1,100 mm (90.6x43.3 in) table rated for 10,000 kg (22,046 lb)
- 15,000 rpm spindle with cutting feed to 24,000 mm/min
Limitations
- Y travel of 1,200 mm (47.2 in) limits part width
- Standard magazine is 24 pcs; 32 and 40 are options
- Z travel of 1,000 mm is an option over the 800 mm standard
Best For
Frequently Asked Questions
01
Vision Wide's feature list for the SE series gives positioning accuracy P 0.007mm. XYZ axis linear scale feedback is a standard accessory. The page does not state the test standard or the length the figure applies to.
02
The table is 2,300x1,100 mm (90.6x43.3 in) and the maximum table load is 10,000 kg (22,046 lb). X travel is 2,100 mm (82.7 in), so the table is longer than the stroke.
03
The row reads 24 pcs (20/32/40 pcs Opt.). A 24 Tools magazine with arm type ATC is standard, and the option list includes 32 / 40 tools magazine arm type ATC.
04
Yes: the SE-2118 has the same 2,100 mm (82.7 in) of X travel and 10,000 kg (22,046 lb) load, with 1,800 mm (70.9 in) of Y and a 2,300x1,600 mm (90.6x63.0 in) table.
