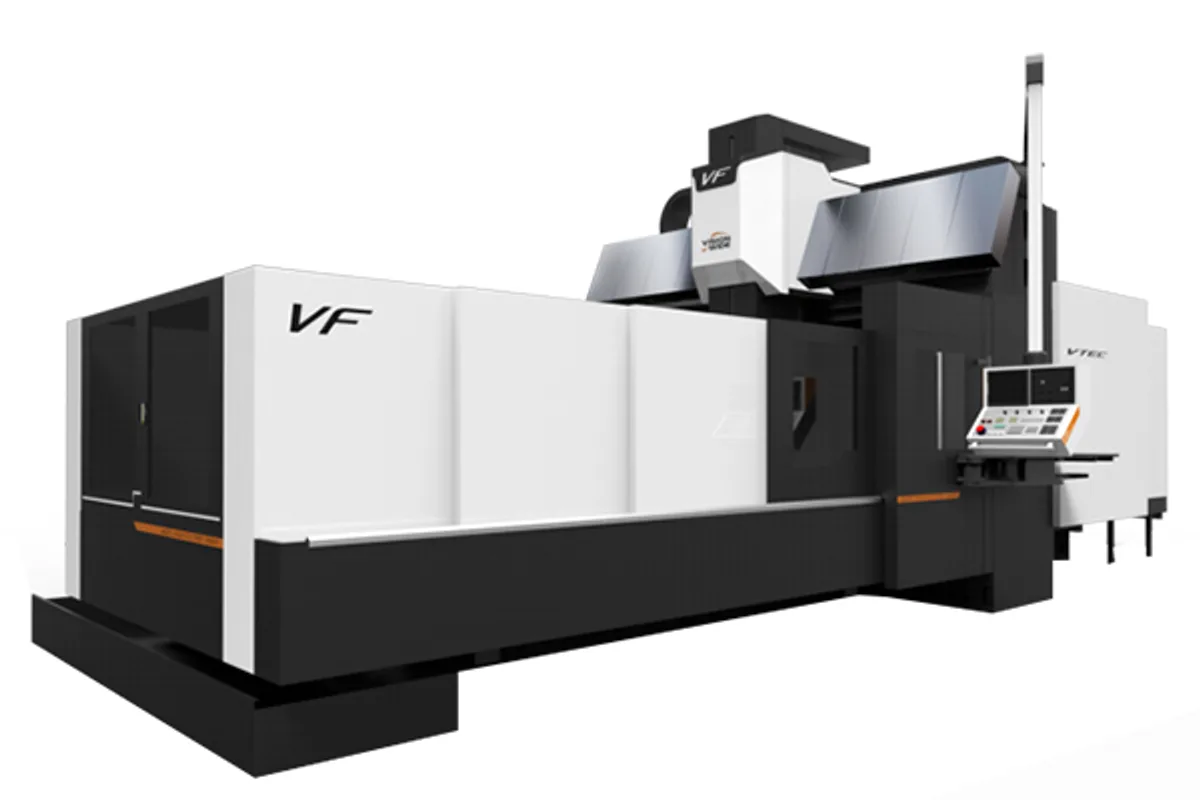

Vision Wide VF-4000
Image: visionwide-tech.com, Vision Wide
Key Specifications
Tool Capacity
Table Size
x axis travel
y axis travel
z axis travel
max table load
How much does the Vision Wide VF-4000 cost?
Price estimate
We do not have a price for the Vision Wide VF-4000 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Vision Wide VF-4000 puts a 4,200x2,050 mm (165.4x80.7 in) table on box ways and rates it for 13,000 kg (28,660 lb). X travel is 4,200 mm (165.4 in) and Y travel 2,300 mm (90.6 in).
Sliding a table of that weight on box ways generates heat in the ways and in the screw that drives it. Two standard items deal with the screw: an X-axis ball screw supporter, fitted where X exceeds 4m, and a ball screw cooling system. Cooled and supported, the screw keeps its length and its straightness, and the axis keeps its position through a long roughing cycle. The X rapid on this length is 10 m/min, with 12 m/min for Y and Z.
The structure is described in terms a heavy-cutting buyer looks for. The main castings are Meehanite grade iron, box shaped with ribs and stress relieved. The guide ways under the table are large and set at what the maker calls an optimal span, on a bed with V-shape reinforcing ribs.
Power starts at 18.5/22 kW (24.8/29.5 hp) through a 4,000 rpm two-step gear spindle. Z travel is 920 mm, or 1,020 mm as an option. Forty tools are standard in an arm type changer.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 4,200 mm (165.4 in) |
| Y Axis Travel | 2,300 mm (90.6 in) |
| Z Axis Travel | 920/1,020 mm (36.2/40.2 in)(Opt.) |
| Table Size | 4,200x2,050 mm (165.4x80.7 in) |
| Max Table Load | 13,000 kg (28,660 lb) |
| Spindle Power Cont 30 Min | 18.5/22 kW (24.8/29.5 hp)(22/26 kW (29.5/34.9 hp) Opt.) (30/37 kW (40.2/49.6 hp) Opt.) |
| Spindle Speed 2 Step Gear | 4,000/6,000 rpm(Opt.) |
| Cutting Feed Rate | 1-7,000 mm/min |
| Rapid Traverse Xyz | X:10 m/min Y/Z:12 m/min |
| Tool Capacity | 40/60 pcs(Opt.) |
Specifications sourced from visionwide-tech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 4,200x2,050 mm (165.4x80.7 in) table for 13,000 kg (28,660 lb)
- X-axis ball screw supporter and ball screw cooling system are standard
- Meehanite castings with stress-relief heat treatment
- 40 tools magazine with arm type ATC as standard
Limitations
- X rapid of 10 m/min, with 12 m/min in Y and Z
- No accuracy figure is published for the VF series
- The 6,000 rpm gear spindle is an option
Best For
Frequently Asked Questions
01
X is 10 m/min and Y and Z are 12 m/min. The shorter VF-3000 lists 12 m/min on all three axes. Cutting feed is 1-7,000 mm/min.
02
An X-axis ball screw supporter is standard for X travels above 4m, and this model has 4,200 mm (165.4 in). A ball screw cooling system is also on the standard accessory list.
03
13,000 kg (28,660 lb) on a 4,200x2,050 mm (165.4x80.7 in) table. The VF-3000 carries 11,000 kg (24,250 lb) and the VF-5000 carries 15,000 kg (33,069 lb).
04
A 4,000 rpm two-step gear spindle as standard, with 18.5/22 kW (24.8/29.5 hp). A 6,000 rpm 2-step gear spindle and motors of 22/26 kW (29.5/34.9 hp) or 30/37 kW (40.2/49.6 hp) are options.
