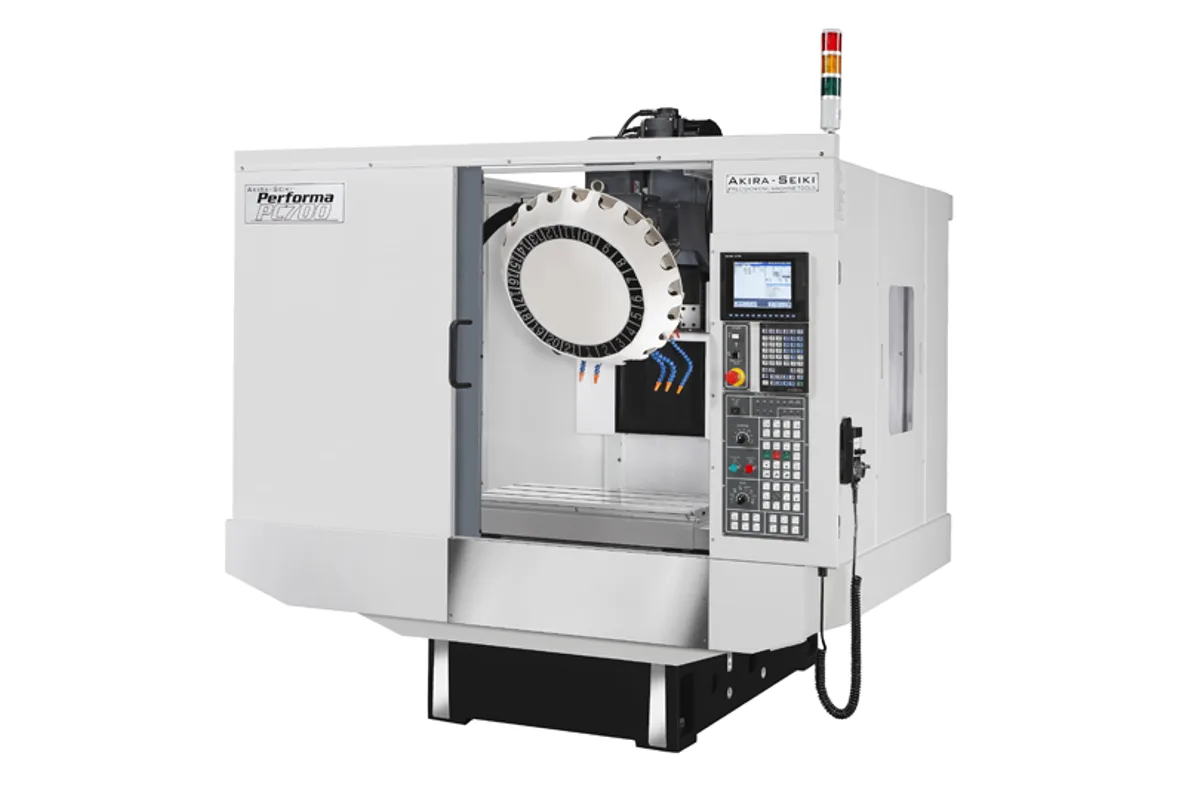

Akira Seiki PC700
Image: akiraseiki.com, Akira Seiki
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
Accuracy
How much does the Akira Seiki PC700 cost?
Price estimate
We do not have a price for the Akira Seiki PC700 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The PC700 stretches Akira Seiki's standard tapping center to 700 mm (27.56 in) of X travel. Y and Z stay at 400 mm (15.75 in) and 330 mm (12.99 in), and the table becomes 850 x 400 mm (33.46 x 15.75 in), long enough for two fixtures or a rotary indexer with a tailstock.
Nothing is given up in speed for the longer bed. Rapids remain 60 / 60 / 60 m/min (2,362 / 2,362 / 2,362 ipm), and the tool change is still 1.7 s tool to tool and 2.0 s chip to chip. The weight difference is small as well: 2,600 kg (5,732 lb), against 2,450 kg (5,401 lb) for the PC500.
Spindle data are the PC series standard, a BT30 air-cooled unit with 9 HP (6.7 kW) peak, 12,000 rpm, and an optional 24,000 rpm. Tools can be 200 mm (7.87 in) long and 3 kg (6.61 lb), from a 21T servo magazine.
Two rows of the maker's table for this model are left out here. Table load and maximum tool diameter are each printed with metric and inch values that do not match, so ask Akira Seiki for both. Floor space is 2,100 x 2,530 mm (82.68 x 99.61 in), coolant capacity 200 L (52.83 gal), power requirement 15 kVA.
Full Specifications
| Parameter | Value |
|---|---|
| CNC Control | AKIRA Mi:845 / (FANUC G code compatible) |
| X Axis Travel | 700 mm (27.56 in) |
| Y Axis Travel | 400 mm (15.75 in) |
| Z Axis Travel | 330 mm (12.99 in) |
| Distance Spindle Nose to Table | 150~480 mm (5.91~18.9 in) |
| Table Size | 850 x 400 mm (33.46 x 15.75 in) |
| Spindle Motor Power | 9 HP (6.7 kW) |
| Max Spindle Speed | 12,000 rpm / 24,000 rpm (OPT) |
| Spindle Taper | BT30 |
| Spindle Cooling | Air Cooling |
| Rapid Traverse Xyz | 60 / 60 / 60 m/min (2,362 / 2,362 / 2,362 ipm) |
| Cutting Feed Rate | 10 / 10 / 10 m/min (394 / 394 / 394 ipm) |
| Positioning Accuracy | 0.01 mm (0.00039 in) |
| Repeatability | ±0.003 mm (±0.00012 in) |
| Tool Capacity | Servo 21T |
| Max Tool Length | 200 mm (7.87 in) |
| Max Tool Weight | 3 kg (6.61 lb) |
| Tool Change Time | T-T: 1.7 s; C-C: 2.0 s |
| Coolant Tank Capacity | 200 L (52.83 gal) |
| Power Requirement | 15 kVA |
| Air Pressure Requirement | 0.5 MPa (72.5 psi) |
| Floor Space | 2,100 x 2,530 mm (82.68 x 99.61 in) |
| Machine Weight | 2,600 kg (5,732 lb) |
Specifications sourced from akiraseiki.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 700 mm (27.56 in) of X travel in a tapping center
- 60 / 60 / 60 m/min (2,362 / 2,362 / 2,362 ipm) rapids
- 850 x 400 mm (33.46 x 15.75 in) table for two fixtures
- Only 2,600 kg (5,732 lb) and 15 kVA
Limitations
- Table load and tool diameter rows on the maker's page are inconsistent and could not be used
- BT30 spindle with 9 HP (6.7 kW) peak
- Z travel of 330 mm (12.99 in)
- The magazine is limited to 21T
Best For
Frequently Asked Questions
01
700 mm (27.56 in) in X, 400 mm (15.75 in) in Y and 330 mm (12.99 in) in Z. The table is 850 x 400 mm (33.46 x 15.75 in).
02
The PC700HSC has the same travels and table with a 15,000 rpm, 10 HP (7.5 kW) spindle, rapids of 40 / 40 / 40 m/min (1,575 / 1,575 / 1,575 ipm) and a 1.6 s tool change. The PC700 is the faster-moving machine; the HSC is the one aimed at harder cutting.
03
T-T: 1.7 s and C-C: 2.0 s with the servo-type changer. The magazine holds 21T, and tools may be up to 200 mm (7.87 in) long and 3 kg (6.61 lb).
04
A power requirement of 15 kVA and air at 0.5 MPa (72.5 psi). Floor space is 2,100 x 2,530 mm (82.68 x 99.61 in) and weight 2,600 kg (5,732 lb).
