Vision Wide HF-6035 / HF-6042

Q: How much does the Vision Wide HF-6035 / HF-6042 cost?

The price estimate for the Vision Wide HF-6035 / HF-6042 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/vision-wide-hf-6035-hf-6042#price; the request is passed to Vision Wide or an authorised dealer.

Specs verified 2026-10-04 · visionwide-tech.com Updated 2026-10-04

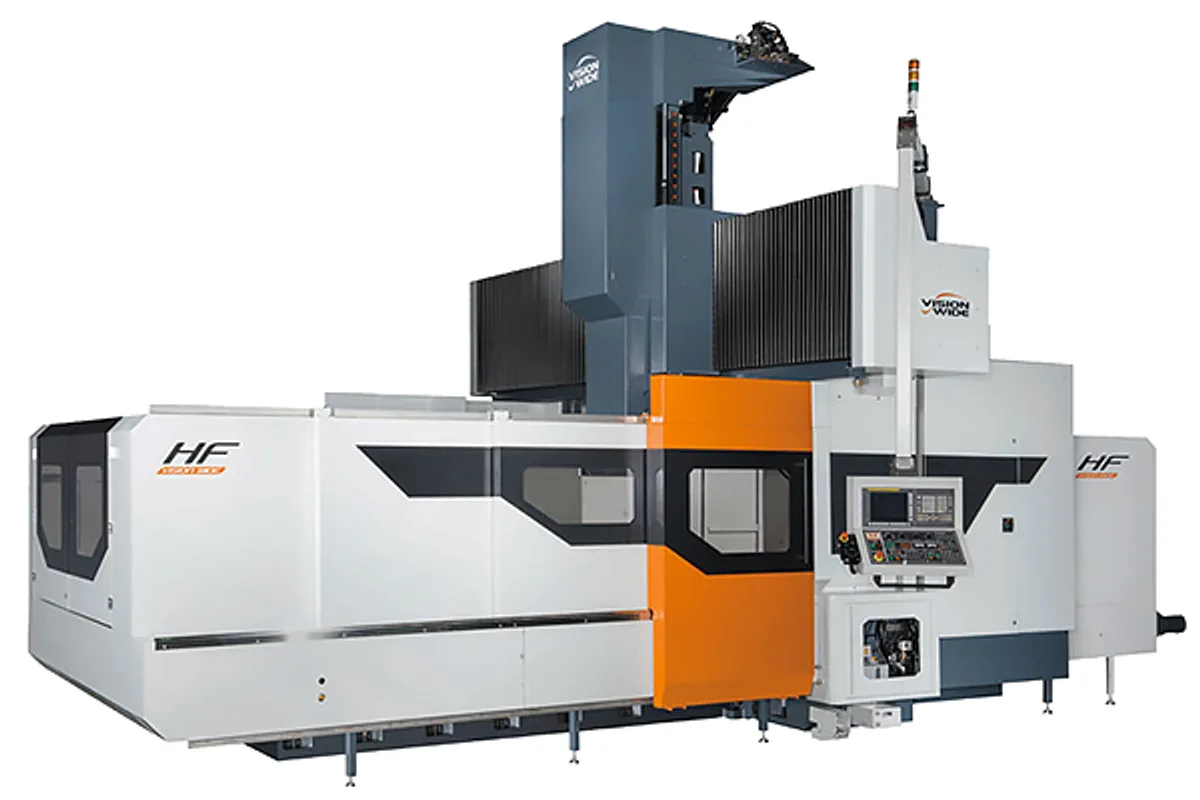

Image: visionwide-tech.com, Vision Wide

Key Specifications

Table Size

6,000×3,000 mm (236.2×118.1 in)

x axis travel

6,100 mm (240.2 in)

y axis travel

3,500/ 4,200 mm (137.8/ 165.4 in)

z axis travel box way single ballscrew

920 / 1,020 mm (36.2 / 40.2 in)(Opt.)

z axis travel linear way enclosed box ram dual ballscrews

1,000 mm (39.4 in)(Opt.) / 1,200 mm (47.2 in)(Opt.) / 1,400 mm (55.1 in)(Opt.)

max table load

28,000 kg (61,728 lb)

How much does the Vision Wide HF-6035 / HF-6042 cost?

Price estimate

Uncertain

We do not have a price for the Vision Wide HF-6035 / HF-6042 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

Both horizontal axes of the Vision Wide HF-6035 / HF-6042 are long enough to need supported ballscrews. X travel is 6,100 mm (240.2 in), and Y travel is 3,500 mm (137.8 in) on the HF-6035 or 4,200 mm (165.4 in) on the HF-6042. Vision Wide's standard list includes an X, Y-axis ballscrew support device for an X axis of 4 m or more and a Y axis of 3 m or more, so every HF has it on both.

The X/Y rapid falls to 8 m/min at this length; the HF-5035 lists 10 m/min. Cutting feed is unchanged at 1-7,000 mm/min.

What rises is capacity. The table is 6,000×3,000 mm (236.2×118.1 in) and takes 28,000 kg (61,728 lb). Eighteen square metres of table under a bridge with five-face heads covers most large die, mold and machine-frame work in one clamping.

Vision Wide attributes the dynamic accuracy of the design to a high rigidity box base and wide-span worktable guideways, and its heavy cutting ability to a square-section beam with the head's center close to the beam center. Standard equipment includes the box way 4,000 rpm gear spindle, a 32 tool vertical type magazine and a FANUC 0iMF PLUS controller.

Full Specifications

Parameter	Value
X Axis Travel	6,100 mm (240.2 in)
Y Axis Travel	3,500/ 4,200 mm (137.8/ 165.4 in)
Z Axis Travel Box Way Single Ballscrew	920 / 1,020 mm (36.2 / 40.2 in)(Opt.)
Z Axis Travel Linear Way Enclosed Box Ram Dual Ballscrews	1,000 mm (39.4 in)(Opt.) / 1,200 mm (47.2 in)(Opt.) / 1,400 mm (55.1 in)(Opt.)
Table Size	6,000×3,000 mm (236.2×118.1 in)
Max Table Load	28,000 kg (61,728 lb)
Spindle Power Cont 30 Min	22/26 kW (29.5/34.9 hp)(30/37 kW (40.2/49.6 hp) Opt.)
Spindle Speed Box Way 2 Step Gear	4,000 / 6,000 rpm(Opt.)
Spindle Speed Linear Way Enclosed Box Ram 2 Step Gear	4,000 / 6,000 rpm(Opt.)
Spindle Speed Linear Way Enclosed Box Ram Direct Driven	10,000 rpm (Opt.)
Cutting Feed Rate	1-7,000 mm/min
Rapid Traverse Xy	8 m/min
Rapid Traverse Z Box Way or Linear Way	15 m/min
Rapid Traverse Z Enclosed Box Ram	12 m/min
Tool Capacity Vertical Tool Change	32 / 40 pcs (Opt.) / 60 pcs (Opt.)
Tool Capacity Floor Standing Vertical Tool Change	32 pcs(Opt.) / 40 pcs (Opt.) / 60 pcs (Opt.)
Tool Capacity Floor Standing Vertical Horizontal Tool Change	32 pcs(Opt.) / 40 pcs (Opt.) / 60 pcs (Opt.)

Specifications sourced from visionwide-tech.com — verified 2026-10-04

Strengths & Limitations

Strengths

6,000×3,000 mm (236.2×118.1 in) table for 28,000 kg (61,728 lb)
Ballscrew support device standard on both X and Y
Square-section beam and box base described by the maker
22/26 kW (29.5/34.9 hp) spindle motor

Limitations

X/Y rapid of 8 m/min, down from 10 m/min on the HF-5035
Cutting feed of 1-7,000 mm/min
Standard magazine holds 32 tools

Best For

Large dies and machine frames in one clamping Workpieces up to 28,000 kg (61,728 lb) Heavy five-face machining at moderate feed rates

Frequently Asked Questions

01 What is the rapid traverse of the Vision Wide HF-6035?

8 m/min in X/Y. The Z axis is 15 m/min with the box way or linear way head and 12 m/min with the enclosed box ram. The HF-5035, one size shorter, lists 10 m/min in X/Y.

02 What are the table size and load of the HF-6035 / HF-6042?

The table is 6,000×3,000 mm (236.2×118.1 in) and the maximum load is 28,000 kg (61,728 lb). X travel is 6,100 mm (240.2 in).

03 Which Y travel do the HF-6035 and HF-6042 have?

3,500 mm (137.8 in) on the HF-6035 and 4,200 mm (165.4 in) on the HF-6042, printed together as 3,500/ 4,200 mm (137.8/ 165.4 in).

04 Are the ballscrews supported on the HF-6035?

Yes. The standard accessory list has an X, Y-axis ballscrew support device where the X axis is 4 m or more and the Y axis 3 m or more, and both axes of this model exceed those lengths.
