Nicolas Correa FENIX

Specs verified 2026-10-05 · nicolascorrea.com Updated 2026-10-05

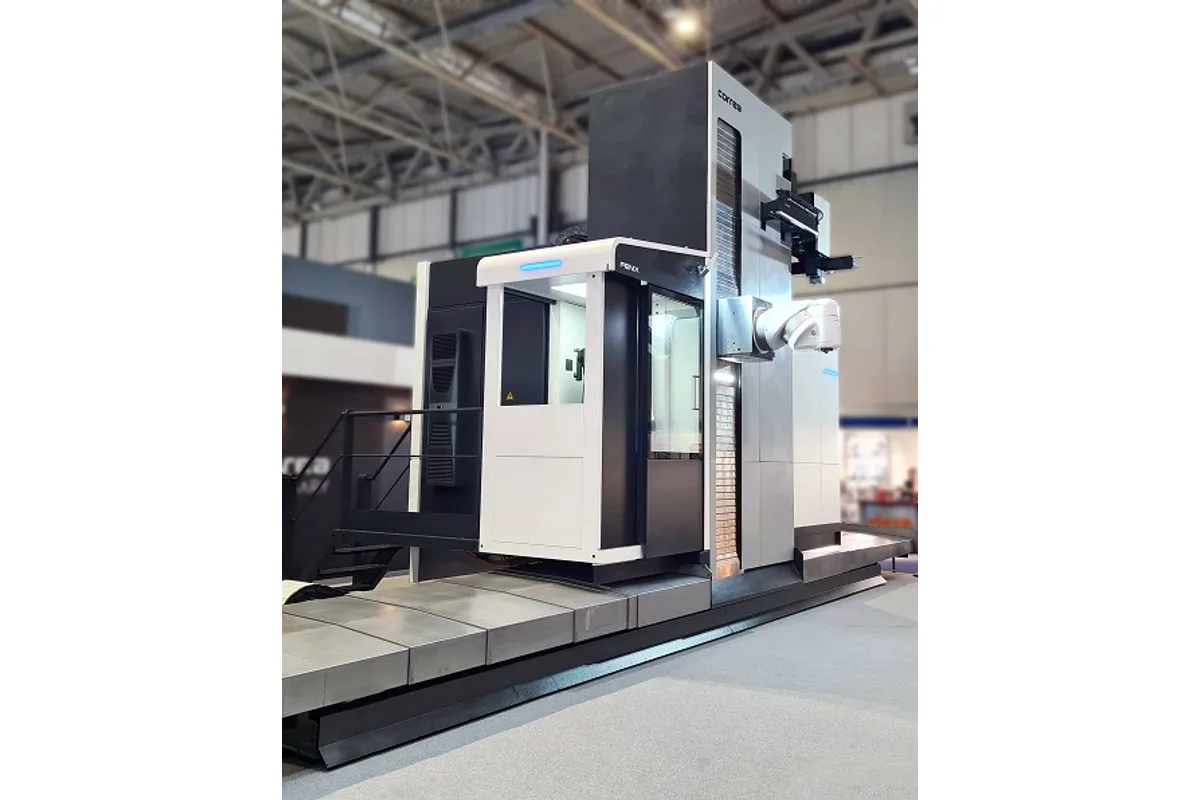

Image: nicolascorrea.com, Nicolas Correa

Key Specifications

Max Spindle

10,000 / 6,000 rpm

Spindle Taper

ISO-50 Big Plus / HSK-100

Table Size

4,800 x 1,000 / 23,000 x 3,000 mm

Spindle Power

42 / 33 / 43 kW

max table load

10,000 / 15,000 kg/m2

x axis travel

4,500 - 25,500 mm

How much does the Nicolas Correa FENIX cost?

Price estimate

Uncertain

We do not have a price for the Nicolas Correa FENIX that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Nicolas Correa FENIX is a travelling column milling machine with a lateral ram: the column runs along the bed on X for 4,500 - 25,500 mm while the workpiece stays still on a table or floor plates. Cross travel is 1,250 - 1,500 mm and the vertical axis comes in five heights, from 1,500 to 3,000 mm.

Length is what this layout sells. The table surface runs from 4,800 x 1,000 mm to 23,000 x 3,000 mm, loaded at 10,000 / 15,000 kg/m2, so a long fabrication is clamped once and the column does the travelling. The price of a side-mounted ram is reach: with at most 1,500 mm of Y, the FENIX machines the face it stands in front of, not the far side of a wide part. For more cross travel in the same family, the AXIA lists Y of 1,500 / 1,750 mm.

Nicolas Correa guides the ram on an L-shaped system with 3 guide-ways and corrects ram droop mechanically, with pulling bars for fine adjustment. The vertical axis has a direct drive transmission. All three axes feed at 25 m/min on linear guides.

The spindle rows list 10,000 / 6,000 rpm, power of 42 / 33 / 43 kW and torque of 620 / 990 / 1291 Nm on an ISO-50 Big Plus or HSK-100 taper. An automatic universal head is standard, as is a Heidenhain or Siemens control. Tool changers for 30, 40, 60 or 120 tools, rotary tables, turning tables and floor plates are all options, so the quoted configuration decides what the machine can do unattended.

Full Specifications

Parameter	Value
Table Size	4,800 x 1,000 / 23,000 x 3,000 mm
Max Table Load	10,000 / 15,000 kg/m2
X Axis Travel	4,500 - 25,500 mm
Y Axis Travel	1,250 - 1,500 mm
Z Axis Travel	1,500 / 2,000 / 2,300 / 2,500 / 3,000 mm
Max Feed X	25 m/min
Max Feed Y	25 m/min
Max Feed Z	25 m/min
Spindle Taper	ISO-50 Big Plus / HSK-100
Max Spindle Speed	10,000 / 6,000 rpm
Spindle Motor Power	42 / 33 / 43 kW
Spindle Torque	620 / 990 / 1291 Nm

Specifications sourced from nicolascorrea.com — verified 2026-10-05

Strengths & Limitations

Strengths

X travel of 4,500 - 25,500 mm with the workpiece stationary, so part weight does not load the moving axis
Five vertical travels, 1,500 / 2,000 / 2,300 / 2,500 / 3,000 mm, to match the height of the work
L-shaped ram guide system with 3 guide-ways and mechanical ram droop compensation by pulling bars
25 m/min feed in X, Y and Z on linear guides
Automatic universal head and Heidenhain or Siemens control are standard equipment

Limitations

Cross travel stops at 1,250 - 1,500 mm, which limits how deep into a wide part the spindle reaches
The automatic tool changer (30, 40, 60 or 120 tools) is optional equipment, not part of the standard machine
The speed row lists two values against three for power and torque, so the pairing of each spindle has to be confirmed
Floor plates, rotary tables and turning tables are all extras

Best For

Long fabrications and beams within 4,500 - 25,500 mm of X travel Tall side faces needing up to 3,000 mm of vertical travel Pendulum-style setups along a table up to 23,000 x 3,000 mm Roughing and finishing in one setup with the automatic universal head

Frequently Asked Questions

01 What type of machine is the Correa FENIX?

A travelling column milling machine with a lateral ram. The column moves along X, 4,500 - 25,500 mm, while the part sits on a fixed table or on floor plates. The ram is guided on an L-shaped system and carries an automatic universal head as standard.

02 How large a workpiece does the FENIX take?

The table surface is listed from 4,800 x 1,000 mm to 23,000 x 3,000 mm with a load of 10,000 / 15,000 kg/m2. Travels are 4,500 - 25,500 mm in X, 1,250 - 1,500 mm in Y and 1,500 / 2,000 / 2,300 / 2,500 / 3,000 mm in Z. The Y figure is the one to check first on a deep part.

03 Which spindles are listed for the FENIX?

The table gives programmable speeds of 10,000 / 6,000 rpm, maximum power of 42 / 33 / 43 kW and maximum torque of 620 / 990 / 1291 Nm, on an ISO-50 Big Plus or HSK-100 taper. Ask which power and torque figure belongs to which speed, because the rows do not have the same number of entries.

04 Does the FENIX come with a tool changer?

Not as standard. Nicolas Correa lists an automatic changer for 30, 40, 60 or 120 tools and a pick up station for 8 and 12 tools under optional equipment, next to probes, chip conveyors and coolant through the spindle.
