TOS Kuřim FUT 200-125

Q: How much does the TOS Kuřim FUT 200-125 cost?

The price estimate for the TOS Kuřim FUT 200-125 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/tos-kurim-fut-200-125#price; the request is passed to TOS Kuřim or an authorised dealer.

Specs verified 2026-10-04 · tos-kurim.cz Updated 2026-10-04

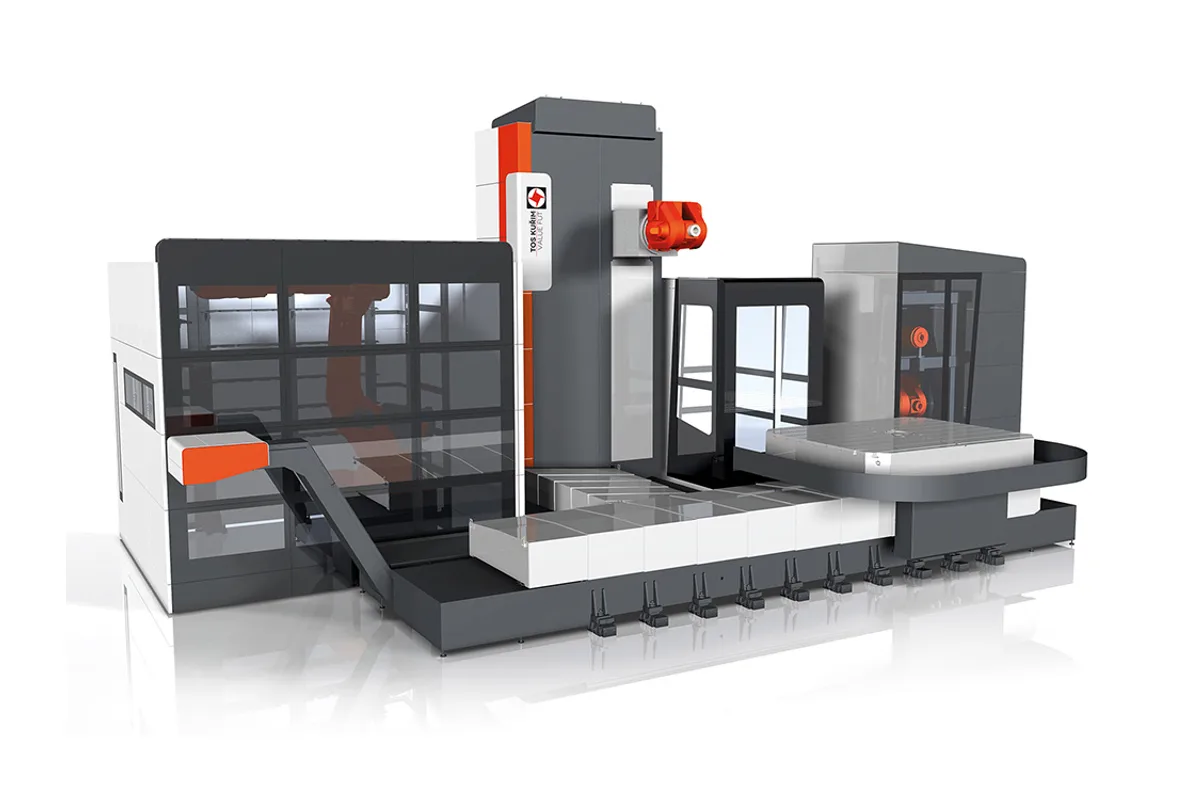

TOS Kuřim FUT series horizontal machining centre

Image: tos-kurim.cz, TOS Kuřim

Key Specifications

Max Spindle

4,000/6,000 rpm

x axis travel

3,000/4,000/5,000 mm (118.1/157.5/196.9 in)

y axis travel

2,000/2,500/3,000 mm (78.7/98.4/118.1 in)

z axis travel

2,000 mm (78.7 in)

w axis travel headstock extension

1,250/1,500 mm (49.2/59.1 in)

feed range x

1 - 20,000 mm/min (1 - 30,000 mm/min)

How much does the TOS Kuřim FUT 200-125 cost?

Price estimate

Uncertain

We do not have a price for the TOS Kuřim FUT 200-125 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The TOS Kuřim FUT 200-125 is the fully equipped FUT: the long 2,000 mm (78.7 in) column travel in Z and, on top of it, a W axis of 1,250/1,500 mm (49.2/59.1 in) for headstock extension. No other model in the series reaches as far toward the part.

Both strokes act along the spindle axis, and they do different jobs. Use Z to place the column for a setup and W to feed into the bore, or run them one after the other for a deep face. In practice the machine covers work that would otherwise go to a horizontal borer, while keeping the feed rates of a machining centre. Every axis, W included, is listed at 1 - 20,000 mm/min with 1 - 30,000 mm/min in brackets.

The workpiece rides on a rotary table that travels 3,000/4,000/5,000 mm (118.1/157.5/196.9 in) in X. Table sizes run from 1,600 x 1,800 mm to 2,000 x 2,400 mm. The headstock climbs 2,000/2,500/3,000 mm (78.7/98.4/118.1 in) in Y.

At the spindle the figures are those of the whole series: 4,000/6,000 rpm and 30/37/45 kW (40/50/60 hp). That is worth weighing. The envelope has grown to boring-mill size while the drive has stayed in the 45 kW class, so the FUT 200-125 is a reach and versatility machine. For heavier cutting the catalogue's gantry series go up to 113 kW on the FRUF-C 300-800.

Full Specifications

Parameter	Value
X Axis Travel	3,000/4,000/5,000 mm (118.1/157.5/196.9 in)
Y Axis Travel	2,000/2,500/3,000 mm (78.7/98.4/118.1 in)
Z Axis Travel	2,000 mm (78.7 in)
W Axis Travel Headstock Extension	1,250/1,500 mm (49.2/59.1 in)
Feed Range X	1 - 20,000 mm/min (1 - 30,000 mm/min)
Feed Range Y	1 - 20,000 mm/min (1 - 30,000 mm/min)
Feed Range Z	1 - 20,000 mm/min (1 - 30,000 mm/min)
Feed Range W	1 - 20,000 mm/min (1 - 30,000 mm/min)
Max Spindle Speed	4,000/6,000 rpm
Rotary Table Size	1,600 x 1,800 / 1,800 x 2,200 / 2,000 x 2,400 mm (63.0 x 70.9 / 70.9 x 86.6 / 78.7 x 94.5 in)
Drive Power	30/37/45 kW (40/50/60 hp)

Specifications sourced from tos-kurim.cz — verified 2026-10-04

Strengths & Limitations

Strengths

Longest reach in the series: Z of 2,000 mm (78.7 in) plus W of 1,250/1,500 mm (49.2/59.1 in)
All four axes feed at 1 - 20,000 mm/min, with 1 - 30,000 mm/min in brackets
Rotary table from 1,600 x 1,800 mm to 2,000 x 2,400 mm
Automatic exchange of spindle heads and tools, axial tool cooling
Rapid feed up to 30 m/min on the feature list

Limitations

Drive power stays at 30/37/45 kW (40/50/60 hp) despite the larger envelope
X travel is 5,000 mm at most, short for a machine with this much reach
Linear roller guideways only; no hydrostatic option is listed for the FUT
No torque or table load figures are published

Best For

Deep boring of large housings and frames from several sides Jobs that would otherwise need a horizontal borer and a machining centre Parts up to 3,000 mm tall on the rotary table

Frequently Asked Questions

01 What is the total reach of the FUT 200-125 along the spindle axis?

The column travels 2,000 mm (78.7 in) in Z and the headstock extends 1,250/1,500 mm (49.2/59.1 in) in W. The catalogue lists the two strokes separately and does not state a combined working depth, which depends on the table and part position.

02 How does the FUT 200-125 differ from the FUT 150-125?

Only in Z. The FUT 150-125 has 1,500 mm (59.1 in) of column travel; this model has 2,000 mm (78.7 in). Both list the same W axis, X and Y options, rotary tables, feeds, spindle speeds and drive power.

03 What spindle speed and power does the FUT 200-125 have?

4,000/6,000 rpm and 30/37/45 kW (40/50/60 hp), as alternatives. The maker describes the spindle as high torque without giving a figure. Heads are exchangeable and thermally stabilized together with the headstock.

04 Does the FUT 200-125 need a foundation pit?

The feature list says the FUT can be installed directly on the load-bearing floor of the hall. No weight or floor loading is given, so the statement has to be checked against the installation drawing for the configuration ordered.
