Johnford FBMC-X14

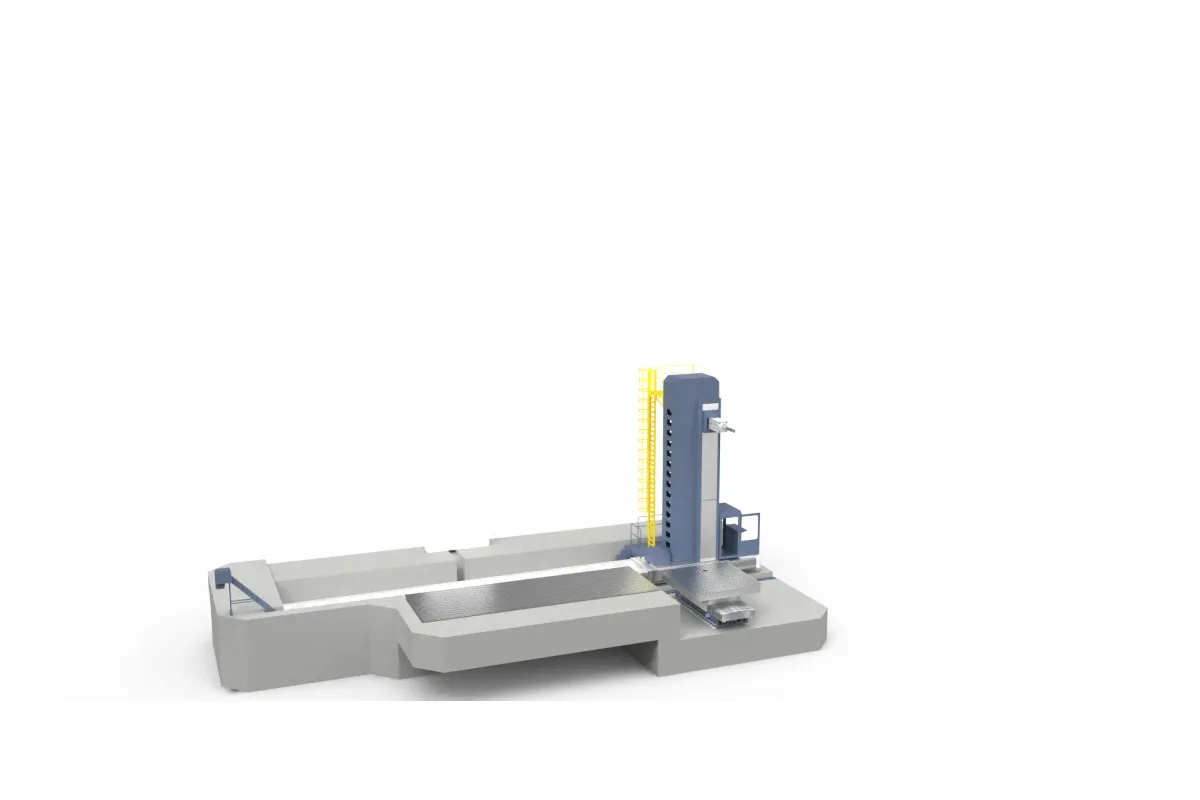

Image: johnford.com.tw, Johnford
Key Specifications
Spindle Taper
Tool Capacity
Rapid Traverse
Spindle Power
floor plate length
floor plate width
How much does the Johnford FBMC-X14 cost?
Price estimate
We do not have a price for the Johnford FBMC-X14 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Sixty kilowatts continuous at the spindle: the Johnford FBMC-X14 is a floor-type boring machining center with a 60 / 75 kW (80.5 / 100.6 hp) drive, rated S1 / S6-60%, and 14,000 mm (551.2 in) of X travel.
No other Johnford machining center with a published table has a motor this size. It turns a BT-50 spindle between 10 and 2,200 rpm, and the low end of that range is the point. Large facing heads, long boring bars and big insert drills cut at a few hundred rpm and need torque, and they need it at the end of an extended ram.
The ram measures 480 x 550 mm (18.9 x 21.7 in) in section and travels 1,200 mm (47.2 in). The quill inside it is Ø160 mm (Ø6.3 in). Tooling limits are generous: Ø250 mm (Ø9.8 in) in diameter, 400 mm (15.7 in) in length and 25 kg (55 lb), with a 60-tool magazine as standard and 80, 100, 120 or more as options. If every pocket is filled, diameter drops to Ø125 mm (Ø4.9 in).
Supporting equipment is on the standard list where smaller machines make it optional. Linear scales on X, Y and Z, hydrostatic systems on those axes, an oil cooler for spindle and gearbox, automatic gearbox lubrication and a hydraulic counterbalance for the headstock are all included. Coolant through the spindle, at 20 bar or 70 bar, remains an option.
The X14 carries a 9,000 x 2,500 mm (354.3 x 98.4 in) floor plate, weighs 151,000 kg (332,200 lb) and is 22,300 mm (878 in) long.
Full Specifications
| Parameter | Value |
|---|---|
| Floor Plate Length | 9,000 mm (354.3 in) |
| Floor Plate Width | 2,500 mm (98.4 in) |
| Table Load Capacity | 5,000 kg/m² |
| Rotary Table Size | 2,500 x 3,000 mm (98.4 x 118.1 in) |
| X Axis Travel | 14,000 mm (551.2 in) |
| Y Axis Travel | 3,500~5,000 mm (137.8~196.9 in) |
| Z Axis Travel | 1,200 mm (47.2 in) |
| W Axis Travel | 1,000 mm (39.4 in) |
| V Axis Travel | 2,000 mm (78.7 in) |
| Ram Cross Section | 480 x 550 mm (18.9 x 21.7 in) |
| Spindle Quill Diameter | Ø160 mm (Ø6.3 in) |
| Spindle Taper | BT-50 |
| Spindle Speed | 10-2,200 rpm |
| Spindle Motor Power | 60 / 75 kW (80.5 / 100.6 hp) (S1/S6-60%) |
| Rapid Traverse Rate | X/Y, Z, V/W = 16/12/6 m/min |
| Cutting Feed Rate | 1~6,000 mm/min (0.04~236 ipm) |
| Axis Servo Motors | X/Y/Z, W, V = 9/6/7 kW |
| Tool Shank | BT-50 |
| Tool Capacity | 60 tools |
| Max Tool Diameter (full magazine) | Ø250 mm (Ø9.8 in) |
| Max Tool Length | 400 mm (15.7 in) |
| Max Tool Weight | 25 kg (55 lb) |
| Max Tool Diameter Adjacent Pockets | Ø125 mm (Ø4.9 in) |
| Tool Selection | Bi-direction random type, shortest path |
| Pneumatic Pressure | 6 kg/cm² |
| Machine Length | 22,300 mm (878 in) |
| Machine Width | 14,350 mm (565 in) |
| Machine Height | 5,850~7,350 mm (230.3~289.4 in) |
| Machine Weight | 151,000 kg (332,200 lb) |
Specifications sourced from johnford.com.tw — verified 2026-10-04
Strengths & Limitations
Strengths
- 60 / 75 kW (80.5 / 100.6 hp) spindle motor (S1/S6-60%)
- 14,000 mm (551.2 in) of X travel with a 9,000 x 2,500 mm (354.3 x 98.4 in) floor plate
- BT-50 tools up to Ø250 mm (Ø9.8 in) and 25 kg (55 lb)
- Linear scales and hydrostatic systems on X, Y and Z as standard
- Hydraulic counterbalance for the headstock
Limitations
- 2,200 rpm maximum spindle speed
- Cutting feed limited to 6,000 mm/min (236 ipm)
- Through-spindle coolant at 20 bar or 70 bar is optional
- 151,000 kg (332,200 lb) machine weight
Best For
Frequently Asked Questions
01
The spindle drive motor is 60 / 75 kW (80.5 / 100.6 hp), given as S1 / S6-60% ratings, with a speed range of 10-2,200 rpm and a BT-50 spindle nose taper.
02
BT-50 shank tools up to Ø250 mm (Ø9.8 in), 400 mm (15.7 in) long and 25 kg (55 lb). The standard magazine holds 60 tools; with a full magazine the maximum diameter is Ø125 mm (Ø4.9 in). Selection is bi-directional random by the shortest path.
03
22,300 mm (878 in) long and 14,350 mm (565 in) wide. Height is listed as 5,850~7,350 mm (230.3~289.4 in), which follows the Y travel chosen between 3,500 and 5,000 mm (137.8~196.9 in).
04
Johnford lists as an option one extra machine bed, vertical column and spindle headstock for mirror or independent machining, sharing the same rotary table and floor plate.
