Johnford FBMC-X13

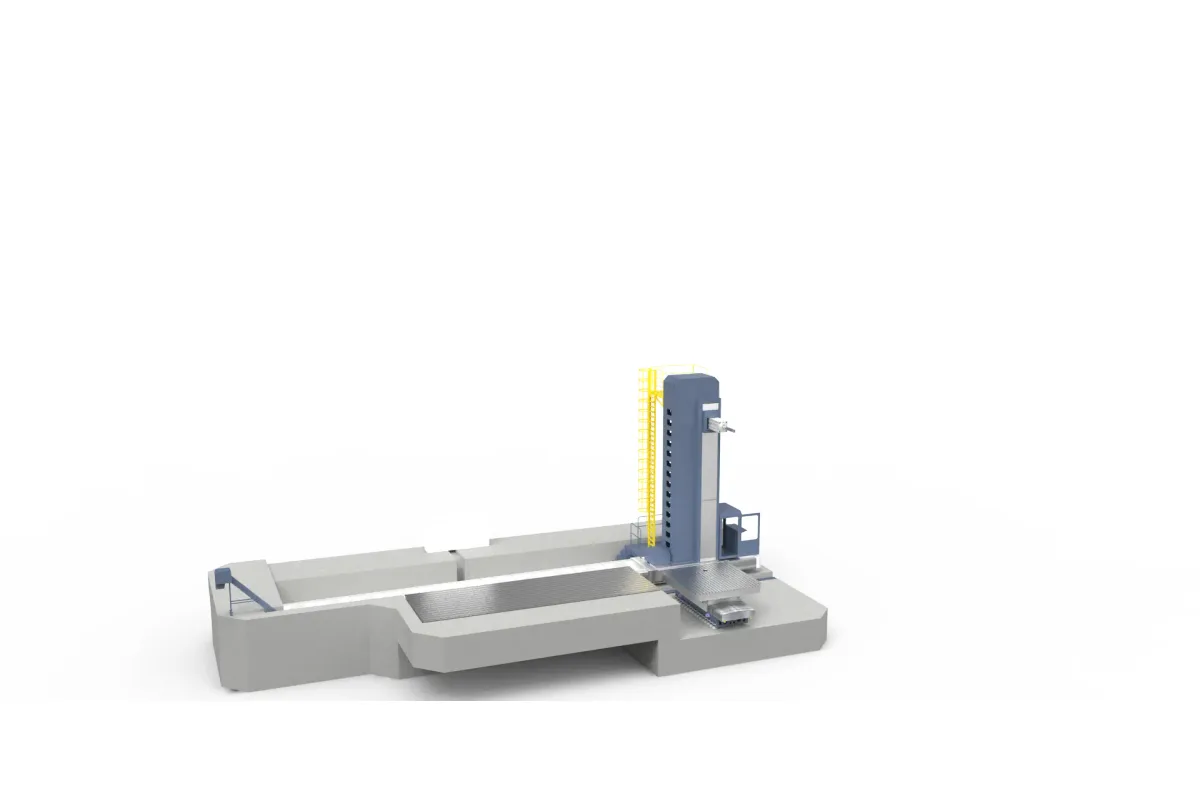

Image: johnford.com.tw, Johnford
Key Specifications
Spindle Taper
Tool Capacity
Rapid Traverse
Spindle Power
floor plate length
floor plate width
How much does the Johnford FBMC-X13 cost?
Price estimate
We do not have a price for the Johnford FBMC-X13 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
With 13,000 mm (511.8 in) of column travel and an 8,000 mm (315 in) floor plate, the Johnford FBMC-X13 is the second length of the floor-type FBMC boring machining centers.
How the X travel is shared out is the practical question on any floor-type machine. Here the floor plate is 8,000 x 2,500 mm (315 x 98.4 in), and a rotary table of 2,500 x 3,000 mm (98.4 x 118.1 in) takes up further length. The column therefore serves two stations. An operator can set up a long weldment on the plate while a casting is being indexed and bored on the rotary table, and the machine walks from one to the other at an X rapid of 16 m/min.
The rotary table is a 0.001° B axis with precision locating holes at every 90°, an absolute encoder and a hydrostatic system. Hydrostatic support matters at this scale: the table and the plate are both rated 5,000 kg/m², and turning tens of tonnes on rolling elements would wear them quickly.
Vertically the headstock covers 3,500~5,000 mm (137.8~196.9 in), a range that depends on the column ordered. An operator's platform that moves up and down is a standard accessory, since the spindle may be working several metres above the floor.
Spindle data are common to the series: BT-50, 10-2,200 rpm, 60 / 75 kW (80.5 / 100.6 hp), Ø160 mm (Ø6.3 in) quill. The FBMC-X13 weighs 143,000 kg (314,600 lb) and is 21,300 mm (838.6 in) long.
Full Specifications
| Parameter | Value |
|---|---|
| Floor Plate Length | 8,000 mm (315 in) |
| Floor Plate Width | 2,500 mm (98.4 in) |
| Table Load Capacity | 5,000 kg/m² |
| Rotary Table Size | 2,500 x 3,000 mm (98.4 x 118.1 in) |
| X Axis Travel | 13,000 mm (511.8 in) |
| Y Axis Travel | 3,500~5,000 mm (137.8~196.9 in) |
| Z Axis Travel | 1,200 mm (47.2 in) |
| W Axis Travel | 1,000 mm (39.4 in) |
| V Axis Travel | 2,000 mm (78.7 in) |
| Ram Cross Section | 480 x 550 mm (18.9 x 21.7 in) |
| Spindle Quill Diameter | Ø160 mm (Ø6.3 in) |
| Spindle Taper | BT-50 |
| Spindle Speed | 10-2,200 rpm |
| Spindle Motor Power | 60 / 75 kW (80.5 / 100.6 hp) (S1/S6-60%) |
| Rapid Traverse Rate | X/Y, Z, V/W = 16/12/6 m/min |
| Cutting Feed Rate | 1~6,000 mm/min (0.04~236 ipm) |
| Axis Servo Motors | X/Y/Z, W, V = 9/6/7 kW |
| Tool Shank | BT-50 |
| Tool Capacity | 60 tools |
| Max Tool Diameter (full magazine) | Ø250 mm (Ø9.8 in) |
| Max Tool Length | 400 mm (15.7 in) |
| Max Tool Weight | 25 kg (55 lb) |
| Max Tool Diameter Adjacent Pockets | Ø125 mm (Ø4.9 in) |
| Tool Selection | Bi-direction random type, shortest path |
| Pneumatic Pressure | 6 kg/cm² |
| Machine Length | 21,300 mm (838.6 in) |
| Machine Width | 14,350 mm (565 in) |
| Machine Height | 5,850~7,350 mm (230.3~289.4 in) |
| Machine Weight | 143,000 kg (314,600 lb) |
Specifications sourced from johnford.com.tw — verified 2026-10-04
Strengths & Limitations
Strengths
- 13,000 mm (511.8 in) of X travel serving an 8,000 x 2,500 mm (315 x 98.4 in) floor plate and a rotary table
- Hydrostatic 0.001° B-axis rotary table of 2,500 x 3,000 mm (98.4 x 118.1 in)
- Operator's platform that moves up and down is standard
- X and Y rapid traverse of 16 m/min
- 60-tool ATC for BT-50 tools up to Ø250 mm (Ø9.8 in)
Limitations
- Tools limited to Ø125 mm (Ø4.9 in) when the magazine is fully loaded
- Quill and V-axis rapid of 6 m/min
- Overall length of 21,300 mm (838.6 in) and width of 14,350 mm (565 in)
- Needs a pneumatic supply of 6 kg/cm² and a deep foundation for 143,000 kg (314,600 lb)
Best For
Frequently Asked Questions
01
8,000 mm (315 in) long and 2,500 mm (98.4 in) wide, with a loading capacity of 5,000 kg/m². The X-axis travel of the column is 13,000 mm (511.8 in).
02
A 2,500 x 3,000 mm (98.4 x 118.1 in) rotary table. The accessory list describes it as a 0.001° B-axis table with precision locating holes at every 90° and an absolute encoder, with a hydrostatic system as standard.
03
The table gives rapid traverse as X/Y, Z, V/W = 16/12/6 m/min and a cutting feed range of 1~6,000 mm/min (0.04~236 ipm). Axis servo motors are listed as X/Y/Z, W, V = 9/6/7 kW.
04
By one metre. The FBMC-X12 has 12,000 mm of X travel, a 7,000 mm (275.6 in) floor plate and weighs 135,000 kg (297,000 lb). The FBMC-X13 has 13,000 mm (511.8 in), an 8,000 mm (315 in) plate and weighs 143,000 kg (314,600 lb). Spindle, ram and rotary table are the same.
