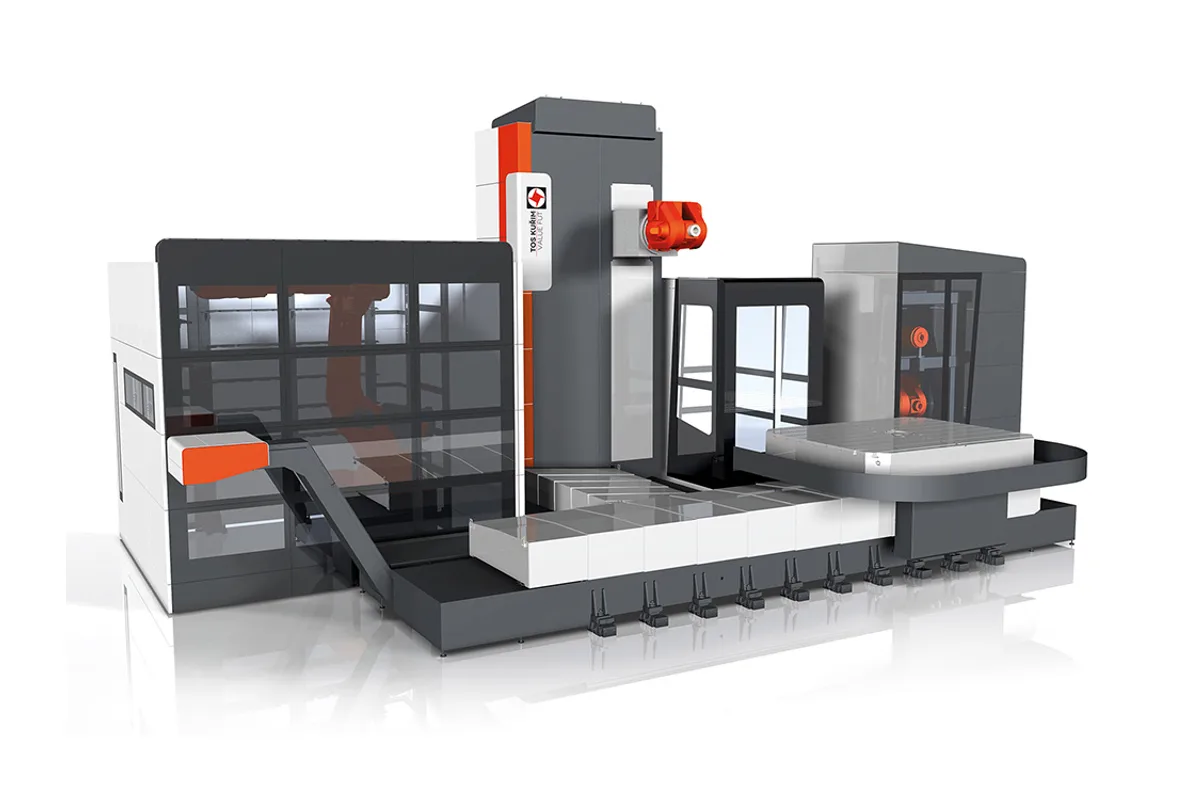

TOS Kuřim FUT 150
Image: tos-kurim.cz, TOS Kuřim
Key Specifications
Max Spindle
x axis travel
y axis travel
z axis travel
feed range x
feed range y
How much does the TOS Kuřim FUT 150 cost?
Price estimate
We do not have a price for the TOS Kuřim FUT 150 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The TOS Kuřim FUT 150 is a horizontal machining centre with a column that moves transversely and a rotary table that travels in X. It is the base model of four: Z, the column's cross travel, is 1,500 mm (59.1 in), and there is no extending headstock axis.
The catalogue labels X as "longitudinal axis - rotary table", with three lengths, 3,000/4,000/5,000 mm (118.1/157.5/196.9 in). Y is the vertical travel of the headstock, 2,000/2,500/3,000 mm (78.7/98.4/118.1 in). The table comes in three sizes, 1,600 x 1,800 / 1,800 x 2,200 / 2,000 x 2,400 mm (63.0 x 70.9 / 70.9 x 86.6 / 78.7 x 94.5 in). Indexing the part on that table is how the spindle reaches four sides in one clamping.
Speed is the selling point in the feature list: rapid feed up to 30 m/min. The table agrees, giving 1 - 20,000 mm/min on X, Y and Z with 1 - 30,000 mm/min in brackets. Linear roller guideways are listed on the linear axes, and the machine can be installed directly on the load-bearing floor of the hall.
Spindle speed is 4,000/6,000 rpm with drive power of 30/37/45 kW (40/50/60 hp). Heads and tools are exchanged automatically. Without a W axis, depth into the part is limited to what the column travel and the fitted head can reach, so the FUT 150 fits work whose features are on or near the outer faces. Deep bores are the case for the FUT 150-125.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 3,000/4,000/5,000 mm (118.1/157.5/196.9 in) |
| Y Axis Travel | 2,000/2,500/3,000 mm (78.7/98.4/118.1 in) |
| Z Axis Travel | 1,500 mm (59.1 in) |
| Feed Range X | 1 - 20,000 mm/min (1 - 30,000 mm/min) |
| Feed Range Y | 1 - 20,000 mm/min (1 - 30,000 mm/min) |
| Feed Range Z | 1 - 20,000 mm/min (1 - 30,000 mm/min) |
| Max Spindle Speed | 4,000/6,000 rpm |
| Rotary Table Size | 1,600 x 1,800 / 1,800 x 2,200 / 2,000 x 2,400 mm (63.0 x 70.9 / 70.9 x 86.6 / 78.7 x 94.5 in) |
| Drive Power | 30/37/45 kW (40/50/60 hp) |
Specifications sourced from tos-kurim.cz — verified 2026-10-04
Strengths & Limitations
Strengths
- Rapid feed up to 30 m/min; feed rows of 1 - 20,000 mm/min with 1 - 30,000 mm/min in brackets
- Rotary table in three sizes, from 1,600 x 1,800 mm to 2,000 x 2,400 mm
- Vertical travel of 2,000/2,500/3,000 mm (78.7/98.4/118.1 in)
- Automatic exchange of spindle heads and tools
- Can be installed directly on the load-bearing floor of the hall
Limitations
- No W axis: the headstock does not extend, unlike the FUT 150-125 with 1,250/1,500 mm (49.2/59.1 in)
- Z travel of 1,500 mm (59.1 in) is the shorter of the two column strokes in the series
- X travel stops at 5,000 mm
- Table load is not stated for the FUT rotary table
Best For
Frequently Asked Questions
01
X, the rotary table's longitudinal travel, is 3,000/4,000/5,000 mm (118.1/157.5/196.9 in). Y, vertical, is 2,000/2,500/3,000 mm (78.7/98.4/118.1 in). Z, the transverse travel of the column, is 1,500 mm (59.1 in). The W row is blank for this model.
02
A rotary table offered as 1,600 x 1,800 / 1,800 x 2,200 / 2,000 x 2,400 mm (63.0 x 70.9 / 70.9 x 86.6 / 78.7 x 94.5 in). The table carries the X axis. Its load capacity and rotation speed are not in the catalogue table.
03
Column travel. The FUT 200 has a Z of 2,000 mm (78.7 in) where this model has 1,500 mm (59.1 in). X, Y, table sizes, feeds, spindle speeds and drive power are printed once for both.
04
The table gives 4,000/6,000 rpm and 30/37/45 kW (40/50/60 hp). The features add thermal stabilization of the headstock and exchangeable spindle heads, automatic exchange of heads and tools, and axial tool cooling. Taper and torque are not stated.
