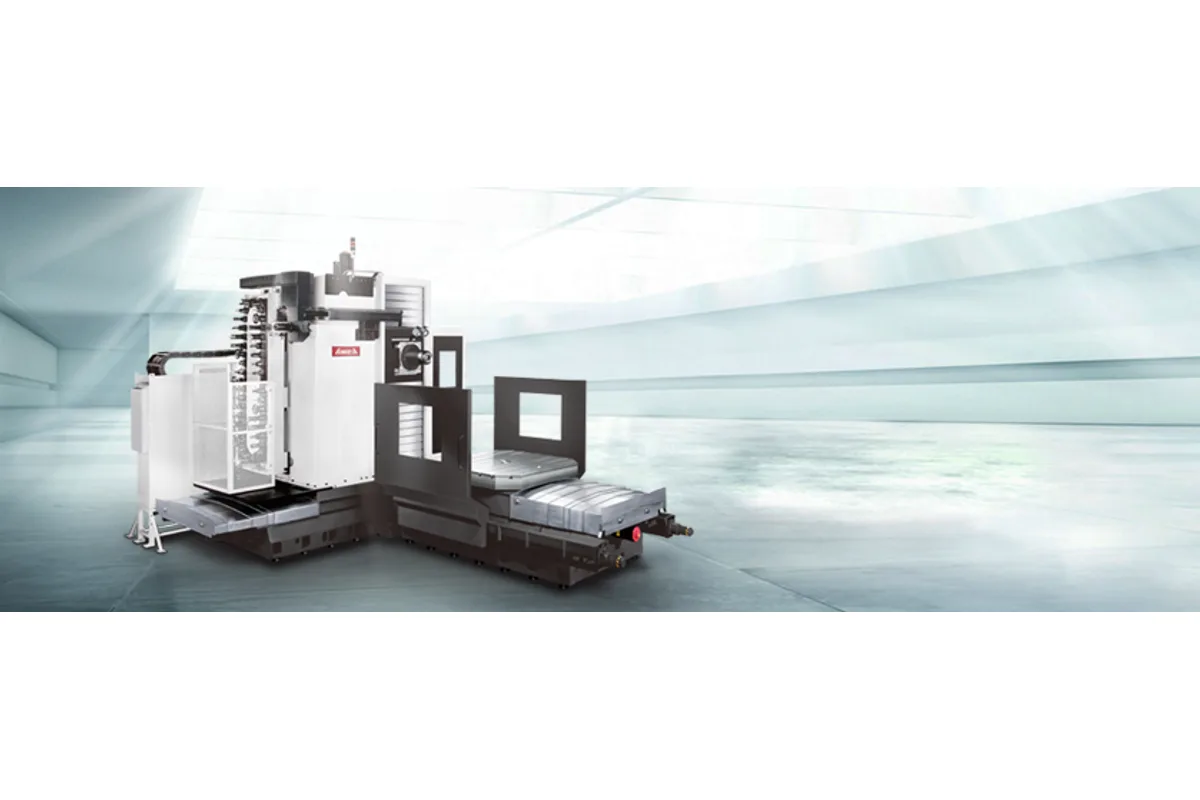

AWEA BL-2018S
Image: awea.com, AWEA
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
x axis travel
How much does the AWEA BL-2018S cost?
Price estimate
We do not have a price for the AWEA BL-2018S that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Boring comes first on the AWEA BL-2018S. Its spindle is a Ø120 mm quill driven through a 2-step gear box, good for 1,308 Nm (965 lb-ft) and topping out at 2,400 rpm, and the quill feeds 600 mm (23.6 in) along W. Axis travels are 2,000 mm (78.7 in) in X, 1,800 mm (70.9 in) in Y and 1,300 mm (51.2 in) in Z.
According to AWEA's spindle page the peak torque is available under 189 rpm. That is the range where large boring bars, face mills and big taps run in steel and cast iron, so the gear box is doing the job a larger motor would otherwise have to. The motor is 22 / 26 kW (30 / 35 HP), identical to the ram-type BL-2018FM, which trades the torque for 6,000 rpm.
At 30,000 kg (66,138 lb) this is the lightest of the twelve BL machines. Its coolant tank is 400 liter. If the part outgrows the X stroke, the BL-3018S and BL-4018S carry the same quill head on longer beds, and the BL-2024S raises Y to 2,400 mm (94.5 in).
Chips fall away from a horizontal spindle, and AWEA fits two augers plus a caterpillar type chip conveyor as standard to carry them out. A splash guard enclosure is an option, not part of the base machine.
The S models list a 70 kVA, 3 phase power requirement.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 2,000 mm (78.7 in) |
| Y Axis Travel | 1,800 mm (70.9 in) |
| Z Axis Travel | 1,300 mm (51.2 in) |
| W Axis Travel | 600 mm (23.6 in) |
| Table Size | 1,600 x 1,800 mm (63.0 x 70.9 in) |
| Max Table Load | 15,000 kg (33,069 lb) |
| Distance Spindle Nose to Table | 885 mm (34.8 in) |
| Boring Spindle Size | Quill with Ø120 mm |
| Spindle Motor Power | 22 / 26 kW (30 / 35 HP) |
| Max Spindle Speed | 2,400 rpm |
| Spindle Torque | 1,308 Nm (965 lb-ft) |
| Spindle Taper | BT50 |
| Rapid Traverse Xyz | 12,000 mm/min (472 ipm) |
| Rapid Traverse W | 5,000 mm/min (197 ipm) |
| Cutting Feed Rate | 1 ~ 5,000 mm/min (0.04 ~ 197 ipm) |
| Tool Capacity | 40T |
| Max Tool Diameter (full magazine) | Ø125 / Ø250 mm (Ø4.9 / Ø9.8 in) |
| Max Tool Length | 400 mm (15.7 in) |
| Max Tool Weight | 25 kg (55 lb) |
| Positioning Accuracy Jis B 6338 | ± 0.01 mm / Full Travel |
| Positioning Accuracy VDI 3441 | P= 0.016 mm / Full Travel |
| Repeatability Jis B 6338 | ± 0.003 mm |
| Repeatability VDI 3441 | Ps= 0.012 mm |
| Power Requirement | 70 kVA, 220±10%, 3 phase, 50 / 60 Hz |
| Air Pressure Requirement | 5 ~ 8 (5) kg/cm² |
| Lubrication Tank Capacity | 4.6 liter |
| Coolant Tank Capacity | 400 liter |
| Machine Weight | 30,000 kg (66,138 lb) |
| Machine Height | 4,515 mm (177.8 in) |
Specifications sourced from awea.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 1,308 Nm (965 lb-ft) from a 2-step gear box, with peak torque under 189 rpm
- Quill of Ø120 mm that extends 600 mm (23.6 in) on W for deep bores
- Two augers and a caterpillar type chip conveyor come standard
- 30,000 kg (66,138 lb), the lowest machine weight in the BL series
- Positioning of ± 0.01 mm over full travel under JIS
Limitations
- Spindle speed ends at 2,400 rpm; the BL-2018FM reaches 6,000 rpm
- Shortest X of the series at 2,000 mm (78.7 in)
- Enclosure splash guard is an option
- Tools above Ø125 mm (Ø4.9 in) need the adjacent magazine pockets left empty
Best For
Frequently Asked Questions
01
1,308 Nm (965 lb-ft). AWEA states that the 2-step gear box provides this maximum under 189 rpm, and that top speed is 2,400 rpm. The motor behind it is rated 22 / 26 kW (30 / 35 HP).
02
The BL-2018S. It has the Ø120 mm quill and 1,308 Nm (965 lb-ft), and AWEA labels the S spindle for parts processing. The BL-2018FM uses a ram with a built-in 6,000 rpm spindle and 600 Nm (443 lb-ft), which the maker labels for mold processing. Travels, table and magazine match.
03
W is the quill extension: 600 mm (23.6 in) of travel at a rapid rate of 5,000 mm/min (197 ipm). Its feed system combines a ball screw with linear guide ways. AWEA notes that the extension can be set to suit the kind of processing.
04
Two augers and a caterpillar type chip conveyor are standard, and the coolant tank holds 400 liter. A splash guard enclosure is offered as an option. The operator room is fully enclosed as standard and moves with the column.
05
Yes. The rotary table is 1,600 x 1,800 mm (63.0 x 70.9 in) and its B-axis has a closed loop rotary encoder with an indexing resolution of 0.001˚. A disc type holding mechanism locks the position, per AWEA's feature page.
