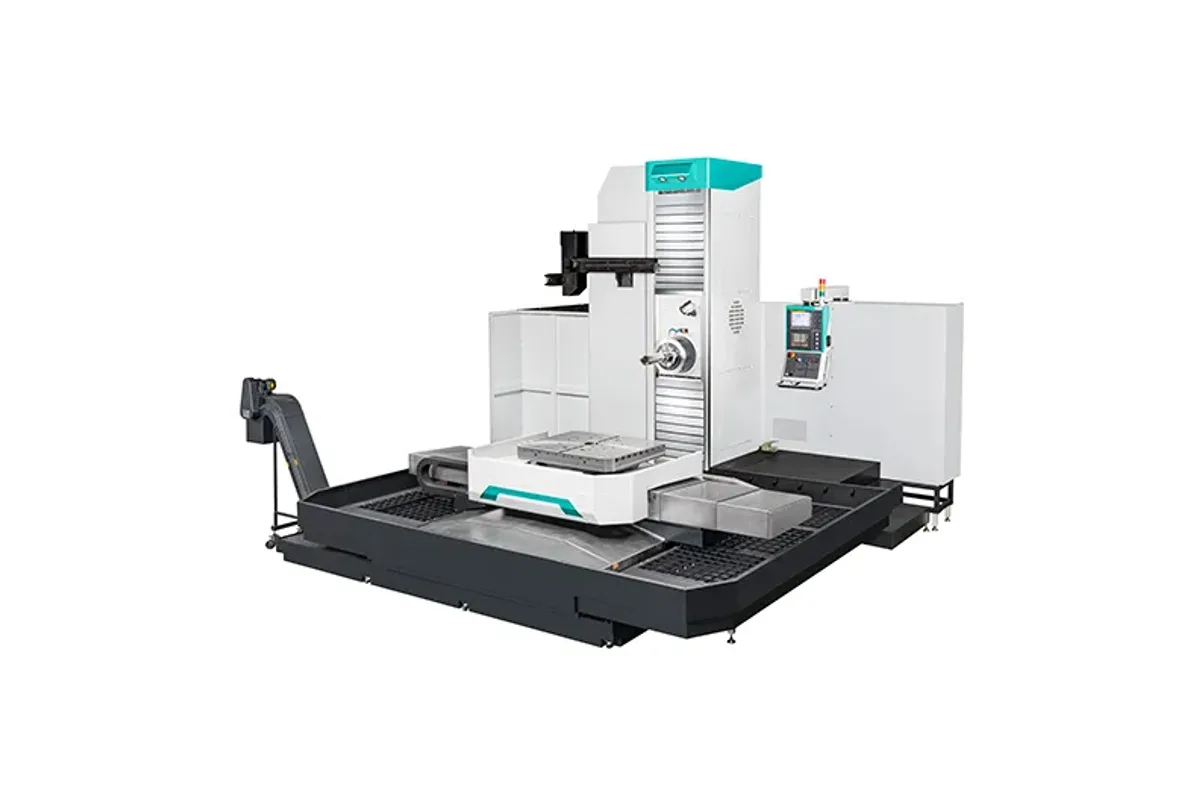

Feeler SHM-630L
Image: feeler.com, Feeler
Key Specifications
Max Spindle
Tool Capacity
Table Size
max table load
x axis travel
y axis travel
How much does the Feeler SHM-630L cost?
Price estimate
We do not have a price for the Feeler SHM-630L that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Feeler SHM-630L is a table-type horizontal boring and milling machine with a 630 x 630 mm (24.8 x 24.8 in) indexing table and a gear-driven spindle. It is the smallest of the three SHM models, though its travels are large for the table: 1,400 mm (55.1 in) in X, 1,150 mm (45.3 in) in Y and 1,000 mm (39.4 in) in Z.
Those proportions tell you what the machine is for. A horizontal machining center with a 630 mm pallet typically has around a metre of X; here the column and table cover much more, so a workpiece far larger than the table, a gearbox case or a welded frame overhanging on all sides, can still be reached on each face. The table carries 1,500 kg (3,307 lb) and indexes in 1° steps, listed as 1°/360.
Feeler describes the SHM series as a high-rigidity design on a box-type base, with a fully supported three-axis configuration that eliminates overhang. The spindle head is hydraulically balanced and driven through gears for high torque. Maximum speed is 4,000 rpm. The Y-axis runs on hard ways coated with Turcite-B and hand-scraped, with a dual hard-way span of 570 mm.
Rapid traverse is 15/15/15 m/min on X/Y/Z. The magazine holds 40 tools, with 60 as the bracketed larger option. Unlike the SHB series, the SHM table shows no W-axis quill travel and no spindle diameter or taper, so confirm the spindle type and tooling interface with the maker.
Full Specifications
| Parameter | Value |
|---|---|
| Table Size | 630 x 630 mm (24.8 x 24.8 in) |
| Max Table Load | 1,500 kg (3,307 lb) |
| X Axis Travel | 1,400 mm (55.1 in) |
| Y Axis Travel | 1,150 mm (45.3 in) |
| Z Axis Travel | 1,000 mm (39.4 in) |
| Table Indexing | 1°/360 |
| Max Spindle Speed | 4,000 rpm |
| Rapid Traverse Xyz | 15/15/15 m/min (591/591/591 ipm) |
| Tool Capacity | 40 (60) |
Specifications sourced from feeler.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Travels of 1,400 x 1,150 x 1,000 mm around a 630 mm table
- Gear-driven, hydraulically balanced spindle head for high torque
- Hand-scraped Y-axis hard ways with Turcite-B and a 570 mm way span
- 1,500 kg (3,307 lb) table load with 1° indexing
- 40 tools as listed, with 60 as the bracketed alternative
Limitations
- Table indexes in 1° steps only, so no continuous fourth-axis contouring
- Spindle speed of 4,000 rpm
- No spindle taper, diameter, power or torque is published
- Rapids of 15 m/min are modest for a machine of this stroke
Best For
Frequently Asked Questions
01
1,400 mm (55.1 in) in X, 1,150 mm (45.3 in) in Y and 1,000 mm (39.4 in) in Z. Rapid traverse is listed as 15/15/15 m/min.
02
A 630 x 630 mm (24.8 x 24.8 in) table rated for 1,500 kg (3,307 lb). The indexing angle is printed as 1°/360, that is 360 positions of 1°.
03
Feeler says the hydraulically balanced spindle head is combined with a gear-driven system that delivers high torque output. Maximum speed is 4,000 rpm. The spindle is described as premium alloy steel on high-precision, high-rigidity bearings for fine boring.
04
The SHM-800L has an 800 x 800 mm table rated 3,000 kg and travels of 1,500 x 1,600 x 1,200 mm, with rapids of 24/24/24 m/min. Spindle speed, indexing and tool capacity are the same as on the SHM-630L.
