Feeler SHB-130XXRS

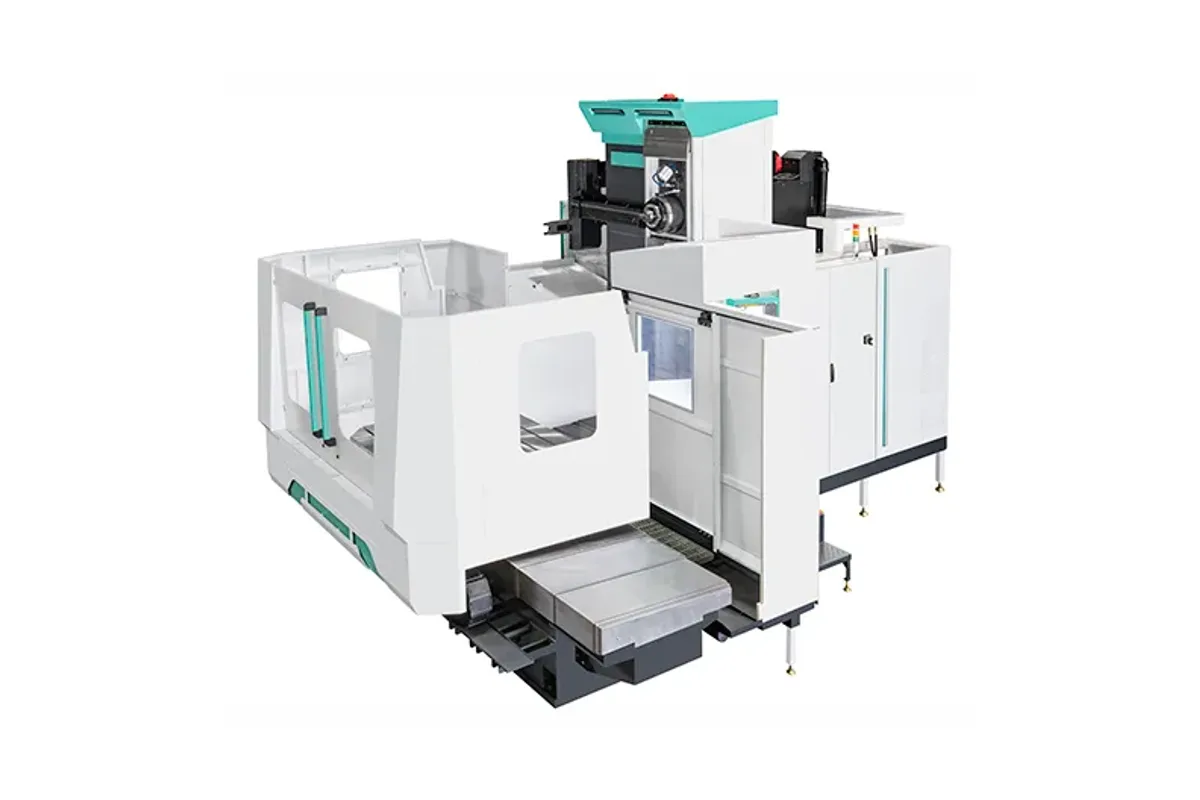

Image: feeler.com, Feeler
Key Specifications
Max Spindle
Tool Capacity
Table Size
max table load
x axis travel
y axis travel
How much does the Feeler SHB-130XXRS cost?
Price estimate
We do not have a price for the Feeler SHB-130XXRS that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Feeler SHB-130XXRS pairs the heavier 130 mm (5.1 in) boring spindle of the SHB series with the compact 1,400 x 1,600 mm (55.1 x 63.0 in) rotary table. Table load is 10 ton and X travel is chosen between 2,500 and 4,000 mm.
Spindle diameter is the main lever on boring performance. A thicker quill deflects less when extended, so it holds size and roundness deeper into the part and tolerates larger boring heads and heavier cuts. The cost is speed: this spindle is listed at 2,000 rpm, with 2,700 rpm optional, where the SHB-110XXRS reaches 2,500 rpm with its 110 mm spindle. For cast iron and steel housings bored to tight tolerances, the trade favours the bigger spindle.
This configuration makes sense for parts that are dense and compact, not sprawling. Think of a valve block, a mill stand chock or a thick-walled gear case of a few tonnes that fits a 1.4 metre table but needs serious boring. W-axis travel is 500 mm (19.7 in), with 700 mm in brackets.
Y travel is 1,800 mm as standard, with 2,000, 2,300 or 2,500 mm in brackets, and Z is 1,500 mm, or 1,700 mm. Rapids are 10/12/12/5 m/min. Feeler fits optical scale feedback to all three axes and the rotary table and uses a dual-lead worm and gear drive on the table to eliminate backlash. The magazine takes 40 tools, or 60. The page publishes no spindle power, torque or taper, and for a 130 mm boring spindle those should be the first questions.
Full Specifications
| Parameter | Value |
|---|---|
| Table Size | 1,400 x 1,600 mm (55.1 x 63.0 in) |
| Max Table Load | 10 ton |
| X Axis Travel | 2,500-4,000 mm (98.4-157.5 in) |
| Y Axis Travel | 1,800 (2,000/2,300/2,500) mm (70.9 (78.7/90.6/98.4) in) |
| Z Axis Travel | 1,500 (1,700) mm (59.1 (66.9) in) |
| W Axis Travel | 500 (700) mm (19.7 (27.6) in) |
| Boring Spindle Diameter | 130 mm (5.1 in) |
| Max Spindle Speed | 2,000 (2,700) rpm |
| Rapid Traverse Xyzw | 10/12/12/5 m/min (394/472/472/197 ipm) |
| Tool Capacity | 40 (60) |
Specifications sourced from feeler.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 130 mm (5.1 in) boring spindle for stiffness at extension
- 10 ton table load on a 1,400 x 1,600 mm rotary table
- X travel selectable from 2,500 to 4,000 mm
- Optical scales on all three axes and the rotary table
- Y travel options up to 2,500 mm
Limitations
- Spindle speed of 2,000 rpm, or 2,700 rpm optional, is lower than on the SHB-110XXRS
- W travel of 500 mm, or 700 mm, is shorter than on the larger-table models
- Smallest table of the 130 mm models
- No spindle power, torque or taper is published
Best For
Frequently Asked Questions
01
The spindle. The SHB-110XXRS has a 110 mm spindle at 2,500 (3,200) rpm. The SHB-130XXRS has a 130 mm spindle at 2,000 (2,700) rpm. Table, load, travels, rapids and tool capacity are identical in Feeler's table.
02
A 1,400 x 1,600 mm (55.1 x 63.0 in) table carrying 10 ton. Feeler says each joint surface of the table is hand-scraped and the table is driven by a dual-lead worm and gear.
03
X from 2,500 to 4,000 mm. Y of 1,800 mm, or 2,000/2,300/2,500 mm in brackets. Z of 1,500 mm, or 1,700 mm. W of 500 mm, or 700 mm.
04
Rapid traverse is listed as 10/12/12/5 m/min for X/Y/Z/W. That is 10 m/min on X, 12 m/min on Y and Z, and 5 m/min on the boring spindle's W axis.
