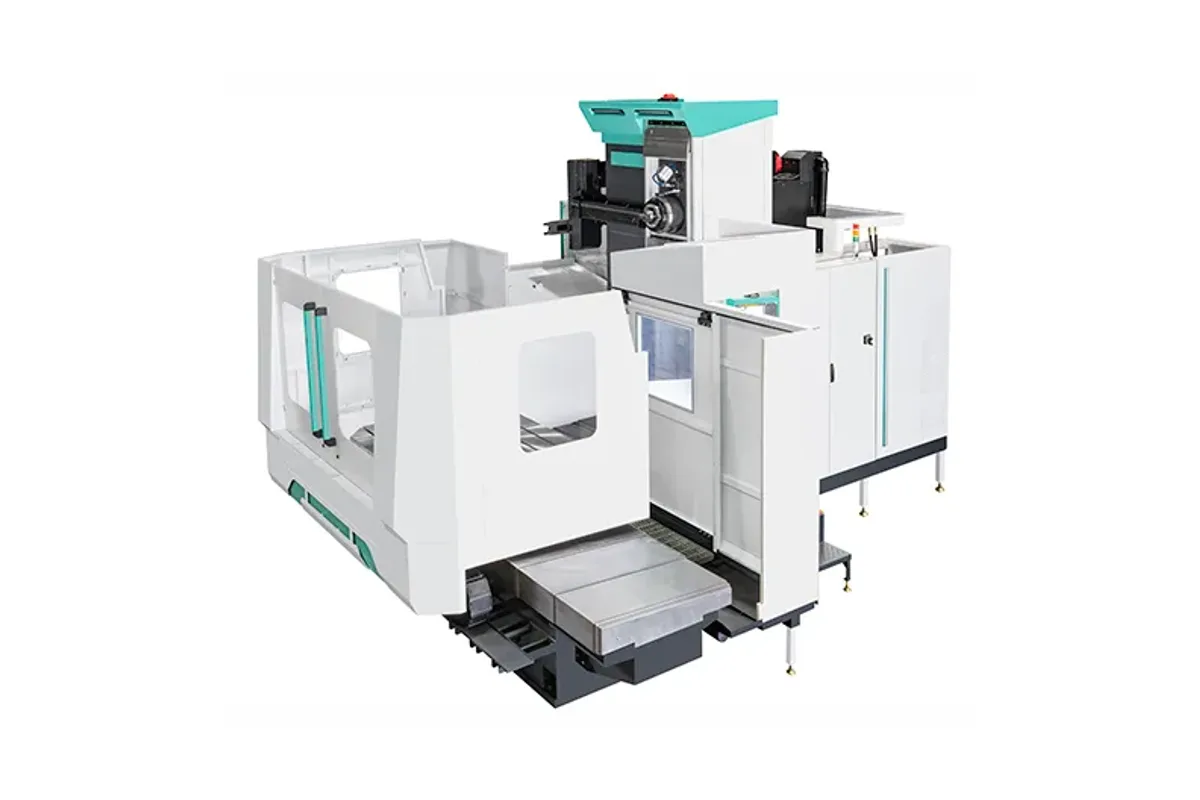

Feeler SHB-110XXRM
Image: feeler.com, Feeler
Key Specifications
Max Spindle
Tool Capacity
Table Size
max table load
x axis travel
y axis travel
How much does the Feeler SHB-110XXRM cost?
Price estimate
We do not have a price for the Feeler SHB-110XXRM that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Take the 110 mm spindle of the SHB range and put it in front of a bigger table, and the result is the Feeler SHB-110XXRM. Its rotary table measures 1,800 x 2,000 mm (70.9 x 78.7 in) and carries 15 ton, half as much again as the RS version with the same spindle.
The quill is longer too. W-axis travel is 700 mm (27.6 in), with 900 mm in brackets. On a table two metres across, the centre of a large part is a long way from the column, and quill reach decides whether a bore in the middle of a casing can be machined from one side or needs the part turned and the bore picked up again from the other.
X travel is selected from 3,000-4,000 mm. Y is 1,800 mm with longer options of 2,000, 2,300 and 2,500 mm in brackets, and Z is 1,500 mm, or 1,700 mm. Spindle speed is 2,500 rpm, or 3,200 rpm as the option. Rapid traverse is 10/12/12/5 m/min on X/Y/Z/W.
Accuracy on a part this large depends on the table as much as on the axes. Feeler says the rotary table has a dual-lead worm and gear drive that eliminates backlash and holds angular precision under heavy load, that each joint surface of the table is hand-scraped, and that optical scales give feedback on all three axes and the table. When a housing is bored from two opposite sides, it is the table's indexing error that determines how well the two bores line up. Tool capacity is 40, with 60 optional.
Full Specifications
| Parameter | Value |
|---|---|
| Table Size | 1,800 x 2,000 mm (70.9 x 78.7 in) |
| Max Table Load | 15 ton |
| X Axis Travel | 3,000-4,000 mm (118.1-157.5 in) |
| Y Axis Travel | 1,800 (2,000/2,300/2,500) mm (70.9 (78.7/90.6/98.4) in) |
| Z Axis Travel | 1,500 (1,700) mm (59.1 (66.9) in) |
| W Axis Travel | 700 (900) mm (27.6 (35.4) in) |
| Boring Spindle Diameter | 110 mm (4.3 in) |
| Max Spindle Speed | 2,500 (3,200) rpm |
| Rapid Traverse Xyzw | 10/12/12/5 m/min (394/472/472/197 ipm) |
| Tool Capacity | 40 (60) |
Specifications sourced from feeler.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 1,800 x 2,000 mm rotary table rated for 15 ton
- W-axis travel of 700 mm (27.6 in), or 900 mm in brackets
- 110 mm spindle with a 3,200 rpm optional speed
- Hand-scraped table joint surfaces and optical scale feedback
- X travel selectable from 3,000 to 4,000 mm
Limitations
- 110 mm spindle is the lighter of the two SHB spindle sizes for a 15 ton table
- Rapids of 10/12/12/5 m/min
- Z travel of 1,500 mm, or 1,700 mm, is the same as on the smaller-table model
- Spindle taper, power and torque are not given
Best For
Frequently Asked Questions
01
1,800 x 2,000 mm (70.9 x 78.7 in) with a maximum loading weight of 15 ton. The rotary table uses a dual-lead worm and gear drive, according to Feeler.
02
W-axis travel is listed as 700(900): 700 mm (27.6 in), with 900 mm in brackets as the alternative. The W-axis spindle diameter is 110 mm and its rapid rate 5 m/min.
03
They share the table, load and travels. The SHB-130XXRM has a 130 mm spindle at 2,000 (2,700) rpm, the stiffer choice for heavy boring. The SHB-110XXRM has the 110 mm spindle at 2,500 (3,200) rpm, better where speed for milling matters.
04
Feeler describes the SHB series as a solution for multi-surface and multi-process machining of medium and large parts, supporting milling, drilling, boring, threading and contour machining.
