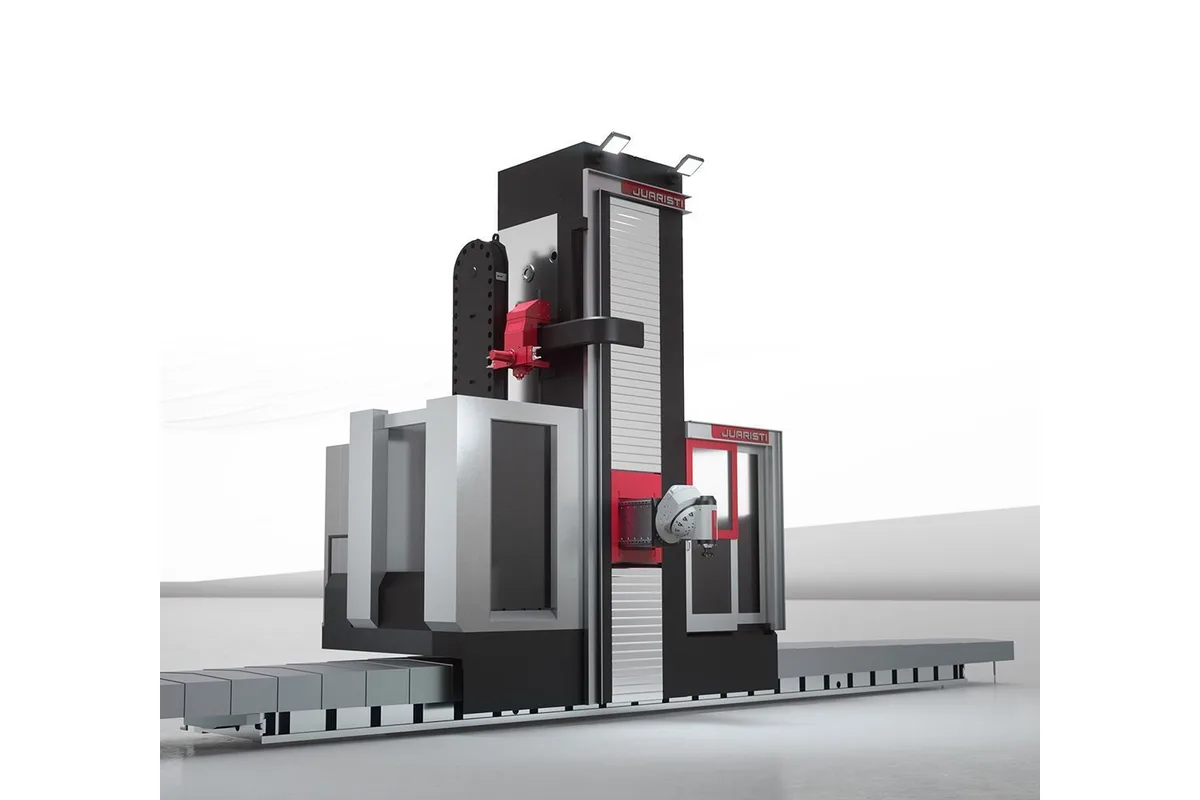

Juaristi MX9
Image: juaristi.com, Juaristi
Key Specifications
Max Spindle
Rapid Traverse
Spindle Power
x axis travel
y axis travel
z axis travel
How much does the Juaristi MX9 cost?
Price estimate
We do not have a price for the Juaristi MX9 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
With a 520 x 580 mm (20.5 x 22.8 in) RAM and 2,000 mm (78.7 in) of Z stroke, the Juaristi MX9 is the largest of the MX floor type milling machines. Vertical travel is listed from 2,000 mm in 500 mm steps up to 7,000 mm, and X as 4,000 mm plus N x 2,000 mm.
The RAM is the real difference. The MX5 and MX7 share a 460 x 520 mm section; only this model gets the heavier one, and with it the longest cross stroke of the three. Juaristi's claim of machining parts up to 7 m high belongs to this size, since no other MX milling column reaches that height.
Spindle figures rise at the top end only. Head power is 40/64 kW and torque 1,300 / 2,500 Nm (959 / 1,844 lb-ft), while the lower value of each pair and the 5,000 – 6,000 min-1 speed row are common to the whole range. So an MX9 with the lighter head cuts like its smaller siblings; the gain comes with the stronger head, and the offer should state which one is included.
Mass has a cost in motion. The feed row reads 30-20-20 m/min, the slowest of the MX milling machines. For long roughing passes that hardly matters. For work with many short repositioning moves it will show in cycle time.
An operator platform with three independent movements in X, Y and Z is part of the maker's description, a practical point on a column this tall.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 4,000 + N x 2,000 mm |
| Y Axis Travel | 2,000 + N x 500 …. 7,000 mm |
| Z Axis Travel | 2,000 mm (78.7 in) |
| Ram Section | 520 x 580 mm (20.5 x 22.8 in) |
| Fixed Horizontal Head | D 200 x L 550 mm |
| Universal Head 45 Indexing | 1ºx1º – 0.001ºx0.001º |
| Spindle Motor Power | 40/64 kW (53.6/85.8 hp) |
| Max Spindle Speed | 5,000 – 6,000 min-1 |
| Spindle Torque | 1,300 / 2,500 Nm (959 / 1,844 lb-ft) |
| Speed Ranges | 2 |
| Rapid Traverse Rate | 30-20-20 m/min |
Specifications sourced from juaristi.com — verified 2026-10-05
Strengths & Limitations
Strengths
- Largest RAM of the MX milling range: 520 x 580 mm section with 2,000 mm of Z stroke
- Vertical travel up to 7,000 mm
- Top head rating of 64 kW and 2,500 Nm
- Bed length built from 4,000 mm plus 2,000 mm sections
- Works with rotary tables of 8 to 180 tonne capacity, per the maker
Limitations
- Feeds of 30-20-20 m/min, the lowest feed row in the MX milling table
- Speed range stays at 5,000 – 6,000 min-1 regardless of size
- The lower power and torque values, 40 kW and 1,300 Nm, are no higher than on the MX5
- No accuracy, weight or foundation data in the table
Best For
Frequently Asked Questions
01
Vertical head travel is listed as 2,000 mm plus N x 500 mm, up to 7,000 mm, and the maker's text speaks of parts up to 7 m high and 5 m wide. The usable height on a given job also depends on the head fitted and on how the part is supported.
02
The RAM and the height. The MX9 has a 520 x 580 mm RAM with 2,000 mm of stroke and Y up to 7,000 mm; the MX7 uses a 460 x 520 mm RAM with 1,650 – 1,800 mm of stroke and Y up to 6,000 mm. Top head power is 64 kW on the MX9 against 60 kW on the MX7.
03
Head power 40/64 kW (53.6/85.8 hp), torque 1,300 / 2,500 Nm, rotation speed 5,000 – 6,000 min-1 and 2 speed ranges. Juaristi notes a cooled gearbox transmission. The table does not label which head carries which rating.
04
The feed row gives 30-20-20 m/min under the heading X, Y, Z, W. Three values are printed for four letters, so ask Juaristi which axis each belongs to. The first figure matches the 30 m/min the maker quotes for the series.
More from Juaristi
Other CNC Boring Machines
TOS Varnsdorf W 100 A
HNK HKDB-130F(1.1Mx16M)
Mitsui Seiki J6CN

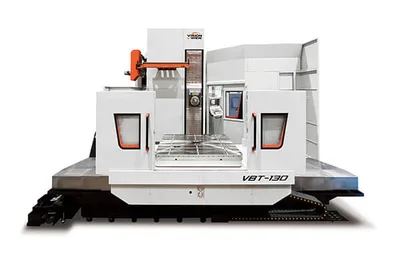

Vision Wide VBT-130-1822
