Vision Wide VHT-1416

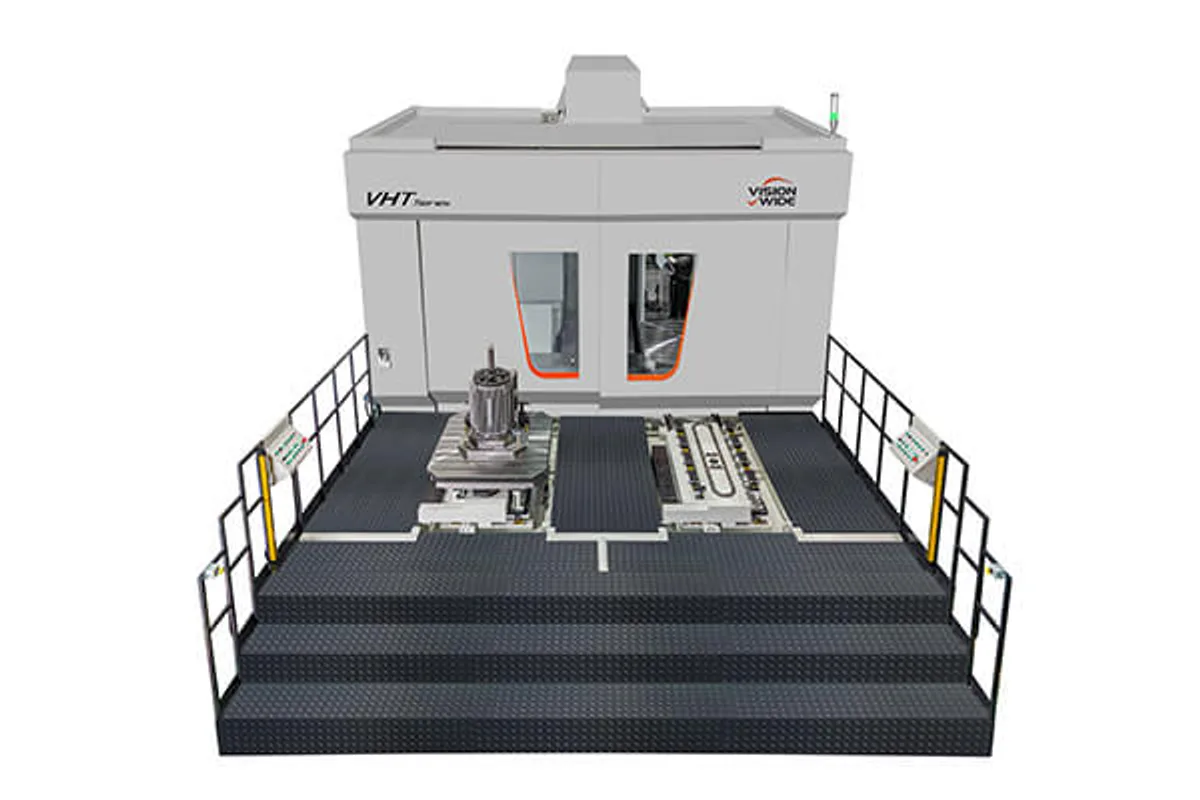

Image: visionwide-tech.com, Vision Wide
Key Specifications
Max Spindle
Tool Capacity
Table Size
x axis travel
y axis travel
z axis travel
How much does the Vision Wide VHT-1416 cost?
Price estimate
We do not have a price for the Vision Wide VHT-1416 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Vision Wide VHT-1416 carries the most weight of any Vision Wide horizontal machining center: 8,000 kg (17,637 lb) in the central area of a rectangular 1,400 x 1,600 mm (55.1 x 63.0 in) table.
That table is the reason to look closely at the options. Base Y travel is 1,300 mm (51.2 in), which is less than either side of the table, while the optional Y is 1,600 mm (63.0 in). Base X is 2,000 mm (78.7 in) with 2,500 mm (98.4 in) optional, both printed in one row as 2,000 / 2,500 mm (78.7 / 98.4 in) (Opt.). Z is 1,300 mm (51.2 in). A buyer who intends to fill this table should treat the longer strokes as part of the machine.
The same table size and the same 8,000 kg (17,637 lb) rating appear on the VBE-110-1416, Vision Wide's boring mill of this size. The difference is the spindle. The VHT-1416 has a 6,000 rpm machining center spindle on a 22 / 26 kW (29.5 / 34.9 hp) motor and an automatic tool magazine of 40 pcs with up to 240 optional; the VBE-110-1416 is listed at 3,500 rpm with a 550 mm (21.7 in) W axis for deep boring.
Rapids of 20 / 15 / 20 m/min and a cutting feed rate of 10 m/min are shared with the VHT-1000 and VHT-1250, which carry 3,500 kg (7,716 lb) and 5,000 kg (11,023 lb).
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 2,000 / 2,500 mm (78.7 / 98.4 in) (Opt.) |
| Y Axis Travel | 1,300 / 1,600 mm (51.2 / 63.0 in) (Opt.) |
| Z Axis Travel | 1,300 mm (51.2 in) |
| Table Size | 1,400 x 1,600 mm (55.1 x 63.0 in) |
| Max Table Load Central Area | 8,000 kg (17,637 lb) |
| Max Spindle Speed | 6,000 rpm |
| Spindle Power Cont 30 Min | 22 / 26 kW (29.5 / 34.9 hp) |
| Cutting Feed Rate | 10 m/min |
| Rapid Traverse Xyz | 20 / 15 / 20 m/min |
| Tool Capacity | 40 pcs / (60 / 90 / 120 / 180 / 240 pcs Opt.) |
Specifications sourced from visionwide-tech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 8,000 kg (17,637 lb) table load in the central area, the highest in the VHT series
- 1,400 x 1,600 mm (55.1 x 63.0 in) table
- 6,000 rpm spindle with 22 / 26 kW (29.5 / 34.9 hp)
- 40 pcs magazine with 60 / 90 / 120 / 180 / 240 optional
- X travel up to 2,500 mm (98.4 in) with the option
Limitations
- Base Y travel of 1,300 mm (51.2 in) is shorter than the table dimensions; 1,600 mm (63.0 in) is an option
- 20 / 15 / 20 m/min rapids and 10 m/min cutting feed
- No W axis; the VBE-110-1416 offers 550 mm (21.7 in) of W on the same table size
- Z travel is 1,300 mm (51.2 in) as on the smaller VHT models
Best For
Frequently Asked Questions
01
The table is 1,400 x 1,600 mm (55.1 x 63.0 in), the only rectangular table in the VHT series, and its maximum load in the central area is 8,000 kg (17,637 lb).
02
Only with the options. The table lists X as 2,000 / 2,500 mm (78.7 / 98.4 in) (Opt.) and Y as 1,300 / 1,600 mm (51.2 / 63.0 in) (Opt.), and Z is 1,300 mm (51.2 in). The base Y travel is below the table's dimensions, so tall work needs the optional stroke.
03
Both list a 1,400 x 1,600 mm (55.1 x 63.0 in) table and 8,000 kg (17,637 lb). The VHT-1416 has a 6,000 rpm spindle with 22 / 26 kW (29.5 / 34.9 hp) and a tool magazine row. The VBE-110-1416 is a boring mill with 3,500 rpm, 18.5 / 22 kW (24.8 / 29.5 hp) and a 550 mm (21.7 in) W axis.
04
The tool magazine capacity is listed as 40 pcs. Larger magazines of 60 / 90 / 120 / 180 / 240 tools are marked as options in the specification table.
