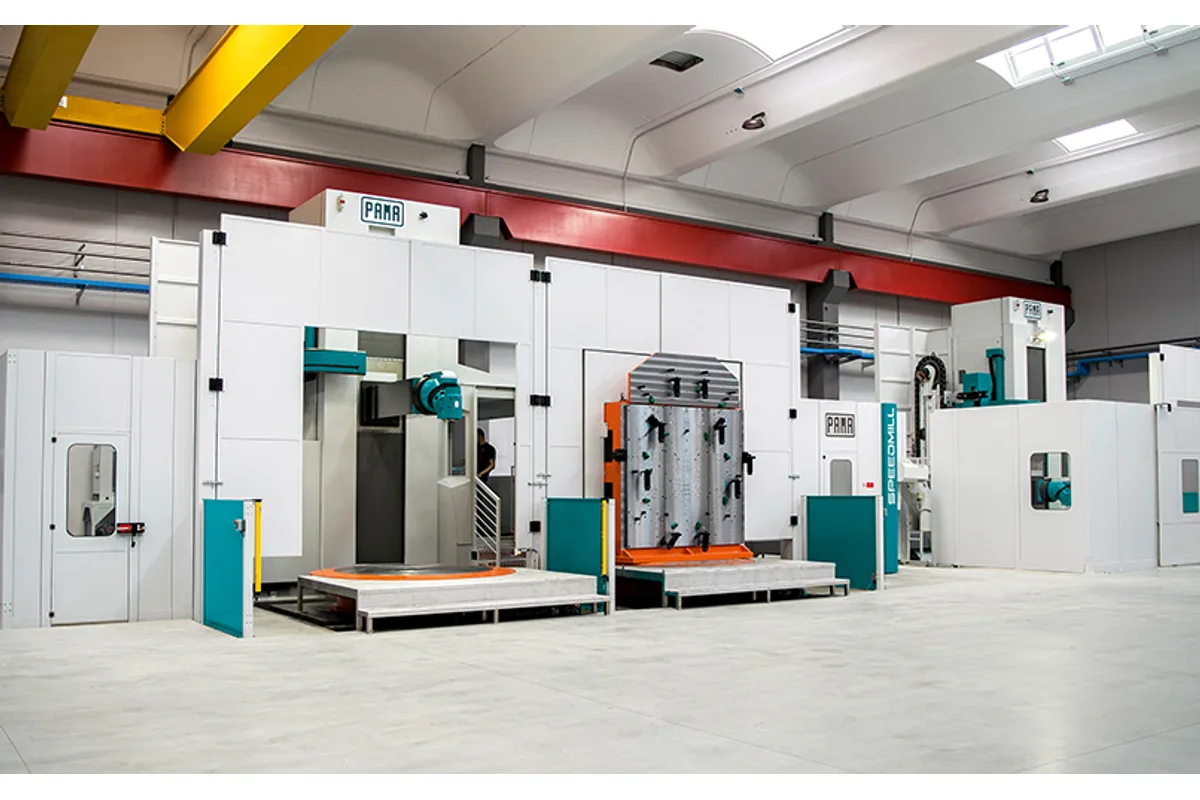

PAMA Speedmill
Image: pamamachinetools.com, PAMA
Key Specifications
Max Spindle
x axis travel
y axis travel
z axis travel
ram section
spindle transmission
How much does the PAMA Speedmill cost?
Price estimate
We do not have a price for the PAMA Speedmill that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
There is no boring bar on the PAMA Speedmill. It is a horizontal floor type milling machine whose ram carries either a driver for attachment heads or a spindle, both with Direct Drive, and the work is done by the heads. That makes it the milling specialist among PAMA's floor-type machines.
PAMA names the two ram versions MDD, a headstock-ram equipped with a driver, and FDD, a headstock-ram equipped with a spindle. The table gives the ram spindle as 66 - 82 kW and 822 - 2,494 Nm (S1) at 4,000 - 6,000 rpm. A universal head is listed separately at 37 / 50 kW and 1,000 / 1,200 Nm with a spindle speed of 6,000 rpm, and its A and C axes index to 360,000 positions. With that resolution the head can be set to practically any angle for five-sided machining.
The structure favours speed. X and Y run on roller guideways, the column is thermally symmetric with a central headstock, and rapid feed is up to 35,000 mm/min on X, Y and Z. The ram, 430 x 430 - 500 x 500 mm in section, is guided by hydrostatic pads and has real-time compensation for thermal elongation.
Travels match the Speedmill B: Y of 2,000 - 5,000 mm, Z of 1,200 - 2,000 mm, and X of 5,000 mm plus extensions of 1,000 mm. The series has four sizes, 1000 to 4000.
Attachment heads are thermally stabilised by fluid at controlled temperature. Tables, tool magazines and head magazines are selected per order, with Siemens, Heidenhain or Fanuc CNC.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 5,000 + N x 1,000 mm |
| Y Axis Travel | 2,000 - 5,000 mm |
| Z Axis Travel | 1,200 - 2,000 mm |
| Ram Section | 430 x 430 - 500 x 500 mm |
| Spindle Transmission | Direct Drive |
| Spindle Power S1 | 66 - 82 kW |
| Spindle Torque S1 | 822 - 2,494 Nm |
| Max Spindle Speed | 4,000 - 6,000 rpm |
| Universal Head Spindle Power S1 | 37 / 50 kW |
| Universal Head Spindle Torque S1 | 1,000 / 1,200 Nm |
| Universal Head Spindle Speed | 6,000 rpm |
| Universal Head A C Axis Positioning | 360,000 positions |
| Rapid Traverse Xyz | up to 35,000 mm/min |
Specifications sourced from pamamachinetools.com — verified 2026-10-05
Strengths & Limitations
Strengths
- Direct Drive ram spindle at 4,000 - 6,000 rpm with 66 - 82 kW (S1)
- Universal head whose A and C axes index to 360,000 positions, with 37 / 50 kW and 1,000 / 1,200 Nm
- Roller guideways on X and Y; rapids up to 35,000 mm/min
- Ram guided by hydrostatic pads with real-time thermal compensation
- Choice of driver (MDD) or spindle (FDD) ram
Limitations
- No boring bar and no W axis; boring depth is limited to ram travel and tool length
- Y travel ends at 5,000 mm
- Ram travel is 1,200 - 2,000 mm
- Published figures are series ranges; the per-size values come with the quotation
Best For
Frequently Asked Questions
01
No. The Speedmill is a milling machine with a ram that carries a driver (MDD) or a spindle (FDD), both Direct Drive. The version with a boring bar and a W axis is the Speedmill B, which lists a boring spindle of 120 - 160 mm.
02
The ram headstock is listed with 66 - 82 kW and 822 - 2,494 Nm in S1 and a spindle speed of 4,000 - 6,000 rpm. The universal head is listed with 37 / 50 kW, 1,000 / 1,200 Nm and 6,000 rpm.
03
PAMA lists A/C axis positioning as 360,000 positions. Attachment heads are thermally stabilised with fluid recirculated at a controlled temperature, and lubrication is by air-oil or climatised oil recirculation, according to the maker.
04
X travel of the column is 5,000 mm plus 1,000 mm extensions, Y travel of the headstock 2,000 - 5,000 mm and Z travel of the ram 1,200 - 2,000 mm. Rapid feed on all three is up to 35,000 mm/min. Four sizes are listed, 1000 to 4000.
