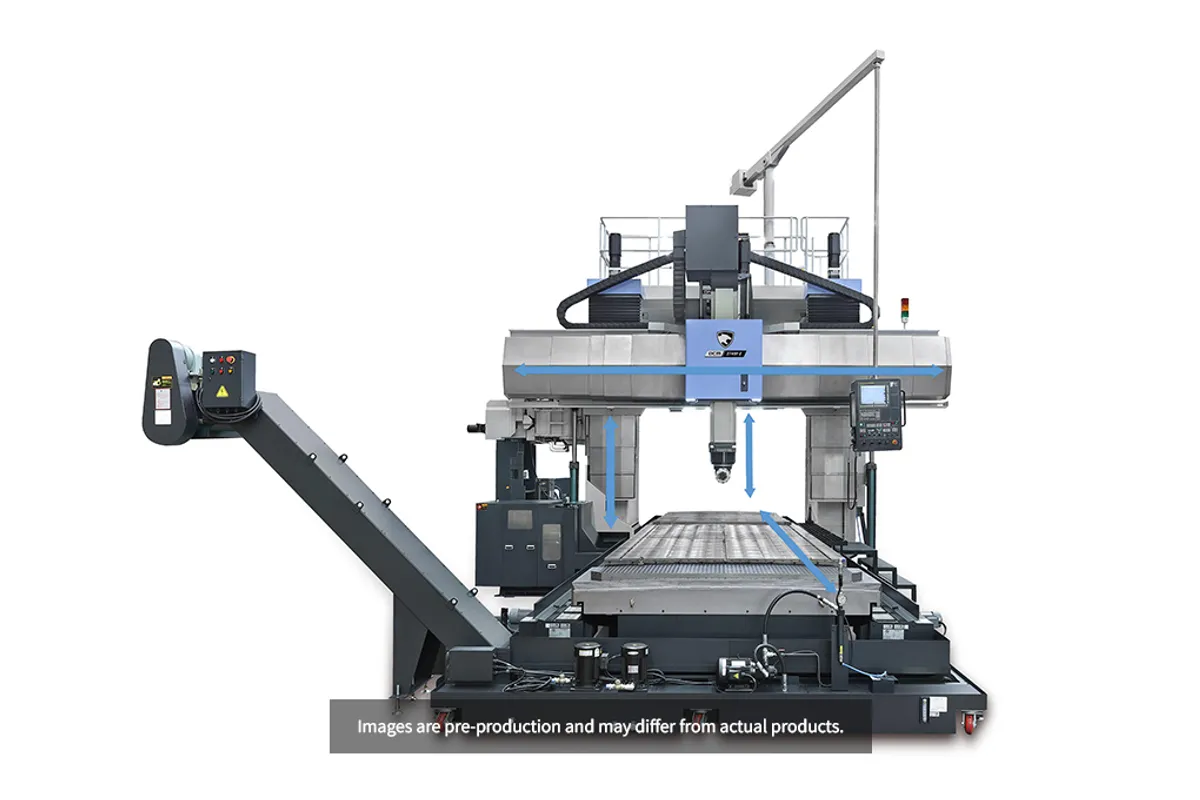

DN Solutions DCM 2750 F II
Key Specifications
Table Size
x axis travel
y axis travel
z axis travel
table load capacity
rapid traverse x
Overview
The DN Solutions DCM 2750 F II extends the DCM 27-series platform with additional X-axis reach, stepping up to 5,250 x 3,200 x 700 mm of travel. The table grows to 5,100 x 2,200 mm with a 25,000 kg load capacity — five tons more than the 2740 F II, accommodating even heavier mold blocks and structural castings. At 68,000 kg machine weight, it's got the mass to stay stable during the heaviest cutting operations.
The DCM platform's core strengths carry over: W-axis crossrail for independent depth positioning, auto-change head attachments for switching between roughing and finishing configurations, ram-type spindle options, and DSQ I/II/III functions for die-spotting and precision contouring. Rapids are the same as the 2740 F II at 16/20/15 m/min on X/Y/Z.
The extra meter of X-travel (5,250 vs 4,250 mm) is what separates the 2750 from the 2740. That difference matters when you're machining full-size car body panel molds, large structural weldments, or long die blocks that overhang the smaller machine's table. The 13,375 mm machine length versus 11,200 mm for the 2740 means you need more floor space, but the working envelope expansion is proportional. For shops that regularly bump up against the 2740 F II's X-travel limit, the 2750 F II avoids the compromise of repositioning parts or splitting operations across multiple setups.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 5,250 mm (207 in) |
| Y Axis Travel | 3,200 mm (126 in) |
| Z Axis Travel | 700 mm (28 in) |
| Table Size | 5,100 x 2,200 mm (201 x 87 in) |
| Table Load Capacity | 25,000 kg (55,116 lb) |
| Rapid Traverse X | 16 m/min (630 in/min) |
| Rapid Traverse Y | 20 m/min (787 in/min) |
| Rapid Traverse Z | 15 m/min (591 in/min) |
| Machine Length | 13,375 mm (527 in) |
| Machine Height | 6,700 mm (264 in) |
| Machine Width | 7,730 mm (304 in) |
| Machine Weight | 68,000 kg (149,914 lb) |
| X Axis Travel Distance | 5250 mm |
| Y Axis Travel Distance | 3200 mm |
| Z Axis Travel Distance | 700 mm |
| Metric | IMPERIAL |
| Capacity | Table to spindle nose |
| Travels | X-Axis Travel DistanceY-Axis Travel DistanceZ-Axis Travel Distance |
| Feed Rates | X-Axis Rapid TraverseY-Axis Rapid TraverseZ-Axis Rapid Traverse |
| Table | Table LengthTable WidthMaximum Workpiece weight |
| Dimensions | LengthHeightWidthWeight |
| Favorites | DCM 4280F |
Specifications sourced from dn-solutions.com — verified 2026-03-28
Strengths & Limitations
Strengths
- 5,250 mm X-travel covers full-size automotive body panel molds and long die blocks in a single setup
- 25,000 kg table capacity handles the heaviest mold blocks and castings without accuracy compromise
- 68,000 kg machine mass delivers outstanding vibration damping during heavy material removal
- W-axis crossrail extends effective depth beyond the 700 mm Z-stroke for deep-cavity applications
- Auto-change head system and DSQ functions provide comprehensive die/mold machining capability
- Same rapid traverse rates as the smaller 2740 F II despite the larger envelope
Limitations
- 13.4-meter machine length requires substantial dedicated floor space
- 68,000 kg weight demands heavy-duty foundation engineering
- 700 mm Z-stroke alone may be limiting without the W-axis — verify total Z+W reach for your applications
- Significant capital investment requiring consistent large-part volume to justify
Best For
Frequently Asked Questions
01
New DCM 2750 F II machines typically run $900,000-$1,300,000 depending on head attachments, spindle configuration, and accessories. The price premium over the 2740 F II reflects the additional X-travel and table capacity.
02
The 2750 adds 1,000 mm of X-travel (5,250 vs 4,250 mm), a 1,000 mm longer table (5,100 vs 4,100 mm), and 5,000 kg more table capacity (25,000 vs 20,000 kg). Machine weight goes from 65,000 to 68,000 kg. Y, Z, and rapid rates are identical. Choose the 2750 when your parts regularly exceed 4 meters.
03
Yes, the DCM 2750 U adds a universal head for 5-axis machining capability. The U version can do simultaneous 5-axis contouring for complex mold surfaces that require continuous multi-axis toolpath control.
04
The DCM series offers multiple ram-type spindle configurations that vary by application. Options typically range from high-speed spindles for finishing to high-torque spindles for roughing. The auto-change system can switch between head types during operation.
