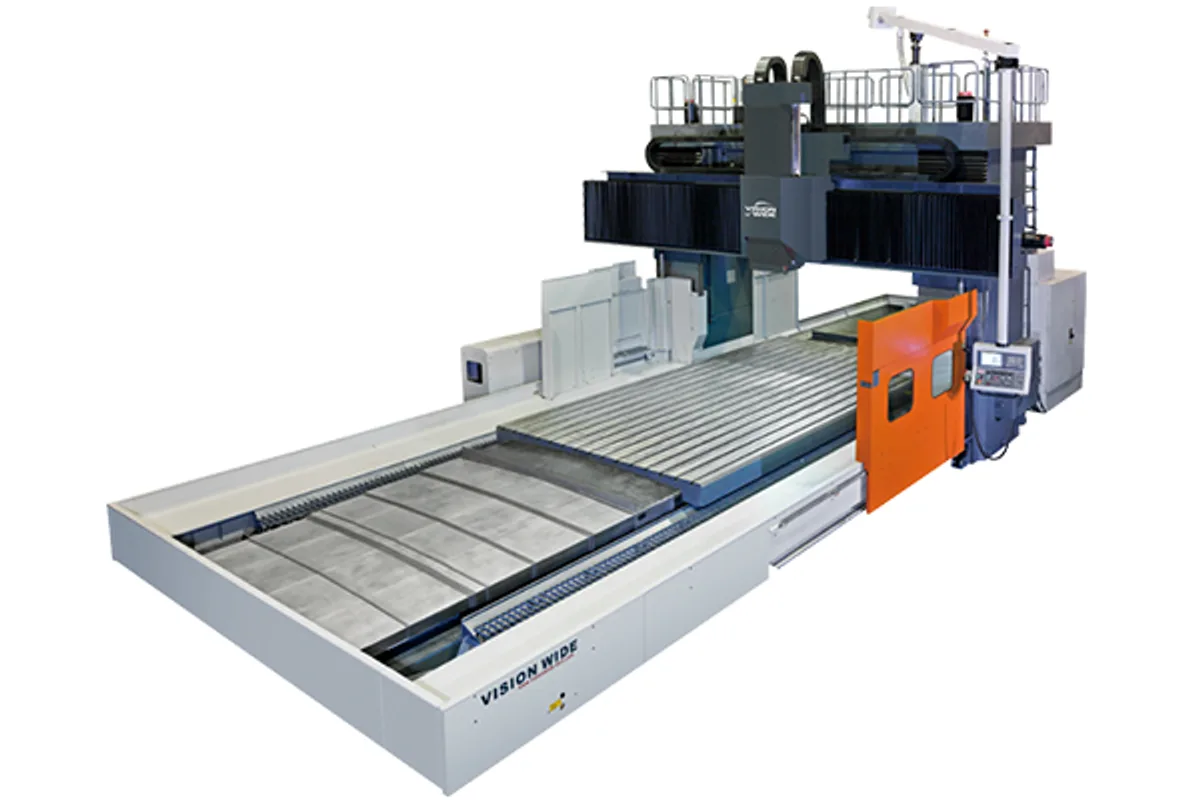

Vision Wide BM-10030 / 10037
Image: visionwide-tech.com, Vision Wide
Key Specifications
Table Size
x axis travel
y axis travel
z axis travel
w axis travel
max table load
How much does the Vision Wide BM-10030 / 10037 cost?
Price estimate
We do not have a price for the Vision Wide BM-10030 / 10037 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Vision Wide BM-10030 / 10037 is a ten-metre machine in four linear axes. X travel is 10,100 mm (397.6 in), Y travel 3,000 mm or 3,700 mm, and both Z and the W-axis cross rail start at 1,000 mm. The table is 10,000×2,450 mm (393.7×96.5 in) and carries 26,000 kg (57,319 lb).
Compare it with the NF-10026, a fixed-rail machine with the same table and the same load. The NF-10026 has 920 mm of Z on its standard head. The BM adds the W axis on top of its Z, and with the options, 1,400 mm of Z and 1,500 mm of W, the tool can work over a much greater height. Vision Wide puts the maximum workpiece height for the BM at 2,450mm.
The cost is time in the vertical direction. W rapids at 2 m/min, so raising the rail fully is a slow move, done once per setup or per operation and not between cuts. X rapid is 8 m/min, Y 10 m/min and Z 12 m/min.
The ball screws on X and Y are supported as standard at these lengths. Spindle power is 22/26 kW (29.5/34.9 hp), the standard spindle a 4,000 rpm 2-step gear type, and chips leave by table-side screw conveyors and a steel belt conveyor.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 10,100 mm (397.6 in) |
| Y Axis Travel | 3,000/ 3,700 mm (118.1/ 145.7 in) |
| Z Axis Travel | 1,000/ 1,200 mm (39.4/ 47.2 in)(Opt.)/1,400 mm (55.1 in)(Opt.) |
| W Axis Travel | 1,000/ 1,200 mm (39.4/ 47.2 in)(Opt.)/1,500 mm (59.1 in)(Opt.) |
| Table Size | 10,000×2,450 mm (393.7×96.5 in) |
| Max Table Load | 26,000 kg (57,319 lb) |
| Spindle Power Cont 30 Min | 22/26 kW (29.5/34.9 hp) (30/37 kW (40.2/49.6 hp) Opt.) |
| Spindle Speed Direct Driven | 8,000 rpm(Opt.)/ 10,000 rpm(Opt.) |
| Cutting Feed Rate | XYZ:1-7,000 mm/min W:1,000 mm/min |
| Rapid Traverse Xyzw | 8 / 10 / 12 / 2 m/min |
| Tool Capacity Floor Standing Vertical Tool Change | 40/60 pcs(Opt.)/90 pcs(Opt.) |
| Tool Capacity Floor Standing Vertical Horizontal Fixed | 40 pcs(Opt.)/60 pcs(Opt.)/90 pcs(Opt.) |
| Tool Capacity Floor Standing Vertical Horizontal Random | 40 pcs(Opt.)/60 pcs(Opt.)/90 pcs(Opt.) |
Specifications sourced from visionwide-tech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 10,100 mm (397.6 in) of X travel with a movable cross rail
- Z up to 1,400 mm and W up to 1,500 mm with options
- 26,000 kg (57,319 lb) table load
- X/Y axis ball screw supporting device is standard
Limitations
- W rapid of 2 m/min makes rail moves slow
- X rapid of 8 m/min on the table axis
- Longer Z and W strokes are options
Best For
Frequently Asked Questions
01
Both have a 10,000×2,450 mm (393.7×96.5 in) table for 26,000 kg (57,319 lb). The BM-10030 has a movable cross rail with a W axis of 1,000 mm or more in addition to Z; the NF-10026 has a fixed rail.
02
Rapid traverse is 8 / 10 / 12 / 2 m/min for X, Y, Z and W. Cutting feed is 1-7,000 mm/min for X, Y and Z and 1,000 mm/min for W.
03
Z: 1,000 mm standard, 1,200 mm or 1,400 mm optional. W: 1,000 mm standard, 1,200 mm or 1,500 mm optional. The maker gives a maximum workpiece height of 2,450mm for the series.
04
3,000 mm on the BM-10030 and 3,700 mm on the second model of the pair, printed as 3,000/ 3,700 mm (118.1/ 145.7 in). The longer travel goes with the AH five-face attachment.
More from Vision Wide
Other Vertical Machining Centers (VMC)
Roku-Roku HC-658

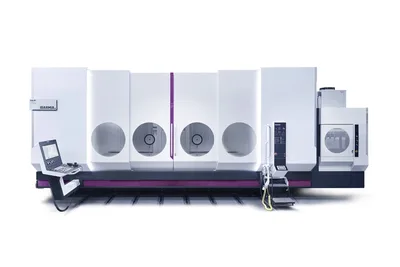

Ibarmia ZMV5
