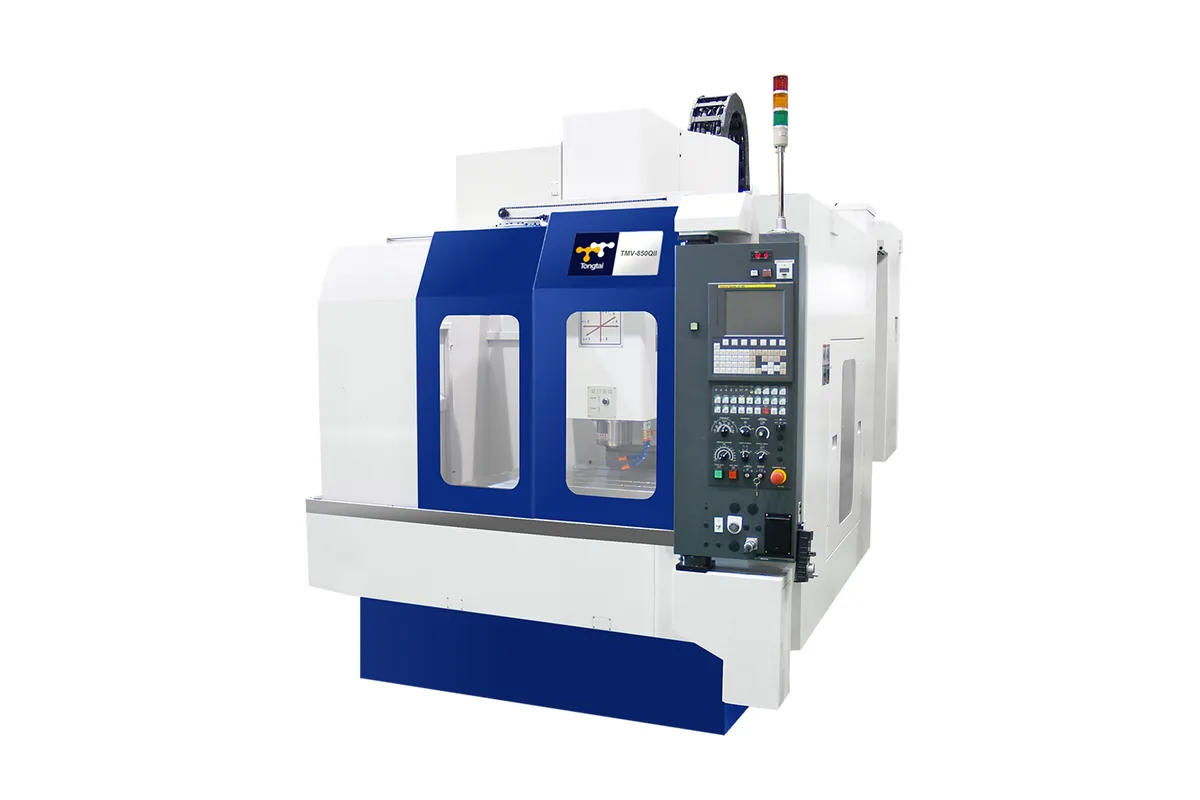

Tongtai TMV-850QII
Image: tongtaimachinetool.com, Tongtai
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
x axis travel
y axis travel
How much does the Tongtai TMV-850QII cost?
Price estimate
We do not have a price for the Tongtai TMV-850QII that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Tongtai TMV-850QII is a 40-taper vertical machining center with 850 mm (33.5 in) of X travel, 600 mm (23.6 in) of Y and 530 mm (20.9 in) of Z. Its table measures 950 x 600 mm (37.4 x 23.6 in) and carries 800 kg (1,764 lb). All three axes rapid at 48 m/min (1,890 ipm).
Spindle selection is the main decision on this model. The belt type runs at 10,000 rpm as standard, with an 8,000 rpm version as an option. The direct-drive type is an option in its own right and is offered at 10,000, 12,000 or 15,000 rpm. A belt spindle at 8,000 or 10,000 rpm suits general steel and cast iron work. The 12,000 and 15,000 rpm direct-drive versions are the ones to look at for aluminium and small-diameter tools. Tongtai's table states no spindle power or torque for any version, so ask for the power curve of the spindle you intend to buy.
The tool magazine holds 24 tools, or 30 as an option, with a 7 kg (15 lb) limit per tool. That weight limit rules out large face mills and long boring bars in heavy holders, which fits a machine aimed at general 40-taper work.
Controls are the Fanuc 0i-MF Plus, Fanuc 31i-MB or Mitsubishi M80VA, each with a 10.4 in display. The machine occupies 2,200 x 3,518 x 2,932 mm (86.6 x 138.5 x 115.4 in) in width, depth and height and weighs 5,500 kg (12,125 lb).
The TMV-1050QII shares the spindle options, magazine and controls but has a longer table, 1,100 x 600 mm (43.3 x 23.6 in), and weighs 5,900 kg (13,007 lb). Table load is 800 kg (1,764 lb) on both, so the larger model buys length, not load capacity.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 850 mm (33.5 in) |
| Y Axis Travel | 600 mm (23.6 in) |
| Z Axis Travel | 530 mm (20.9 in) |
| Rapid Traverse Xyz | 48 / 48 / 48 m/min (1,890 / 1,890 / 1,890 ipm) |
| Spindle Taper | 7/24 Taper No.40 |
| Max Spindle Speed | Belt type: 10,000 (opt. 8,000) rpm; direct-drive type: opt. 10,000/12,000/15,000 rpm |
| Table Size | 950 x 600 mm (37.4 x 23.6 in) |
| Max Table Load | 800 kg (1,764 lb) |
| Tool Capacity | 24 (opt. 30) pcs |
| Max Tool Weight | 7 kg (15 lb) |
| Machine Dimensions | 2,200 x 3,518 x 2,932 mm (86.6 x 138.5 x 115.4 in), W x D x H |
| Machine Weight | 5,500 kg (12,125 lb) |
| CNC Control | Fanuc 0i-MF Plus, Fanuc 31i-MB or Mitsubishi M80VA (10.4 in display) |
Specifications sourced from tongtaimachinetool.com — verified 2026-10-03
Strengths & Limitations
Strengths
- 48 m/min (1,890 ipm) rapids on X, Y and Z
- Five spindle versions: belt type at 10,000 or 8,000 rpm, direct-drive type at 10,000, 12,000 or 15,000 rpm
- 800 kg (1,764 lb) table load on a 950 x 600 mm (37.4 x 23.6 in) table
- 600 mm (23.6 in) of Y travel covers the full depth of the table
- Three control choices: Fanuc 0i-MF Plus, Fanuc 31i-MB or Mitsubishi M80VA
Limitations
- No spindle power or torque figure is given for any spindle version
- Tools are limited to 7 kg (15 lb)
- Direct-drive spindles and the 30-tool magazine are options; the standard machine has the belt spindle and 24 tools
- Z travel of 530 mm (20.9 in) has to cover the fixture, the part and the tool length together
Best For
Frequently Asked Questions
01
Two types. The belt type is standard at 10,000 rpm, with 8,000 rpm as an option. The direct-drive type is optional and listed at 10,000, 12,000 or 15,000 rpm. All use a 7/24 taper No.40. Tongtai's table gives no power or torque for any of them, so those figures have to be requested for the spindle you choose.
02
Table length and machine size. The TMV-850QII has a 950 x 600 mm (37.4 x 23.6 in) table and weighs 5,500 kg (12,125 lb). The TMV-1050QII has a 1,100 x 600 mm (43.3 x 23.6 in) table and weighs 5,900 kg (13,007 lb). Spindle options, the 24-tool standard magazine, the controls and the 800 kg (1,764 lb) table load are the same on both.
03
800 kg (1,764 lb) on a 950 x 600 mm (37.4 x 23.6 in) table. That figure includes vises, fixture plates and any rotary table, so add those up before committing a heavy workpiece to the machine.
04
Tongtai lists three: the Fanuc 0i-MF Plus, the Fanuc 31i-MB and the Mitsubishi M80VA, each with a 10.4 in display. The table does not list differences in spindle or axis performance between them, so the choice can follow the programming and operator experience already in the shop.
05
24 tools as standard, with a 30-tool magazine as an option. Each tool can weigh up to 7 kg (15 lb). The table does not state a maximum tool diameter or length, so check those limits if you run large face mills or long drills.
More from Tongtai
Other Vertical Machining Centers (VMC)
Vision Wide HF-6035 / HF-6042
Johnford DMC-3100P

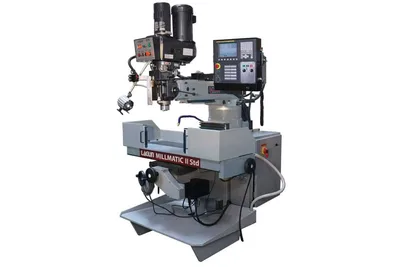

Republic Lagun Millmatic II
