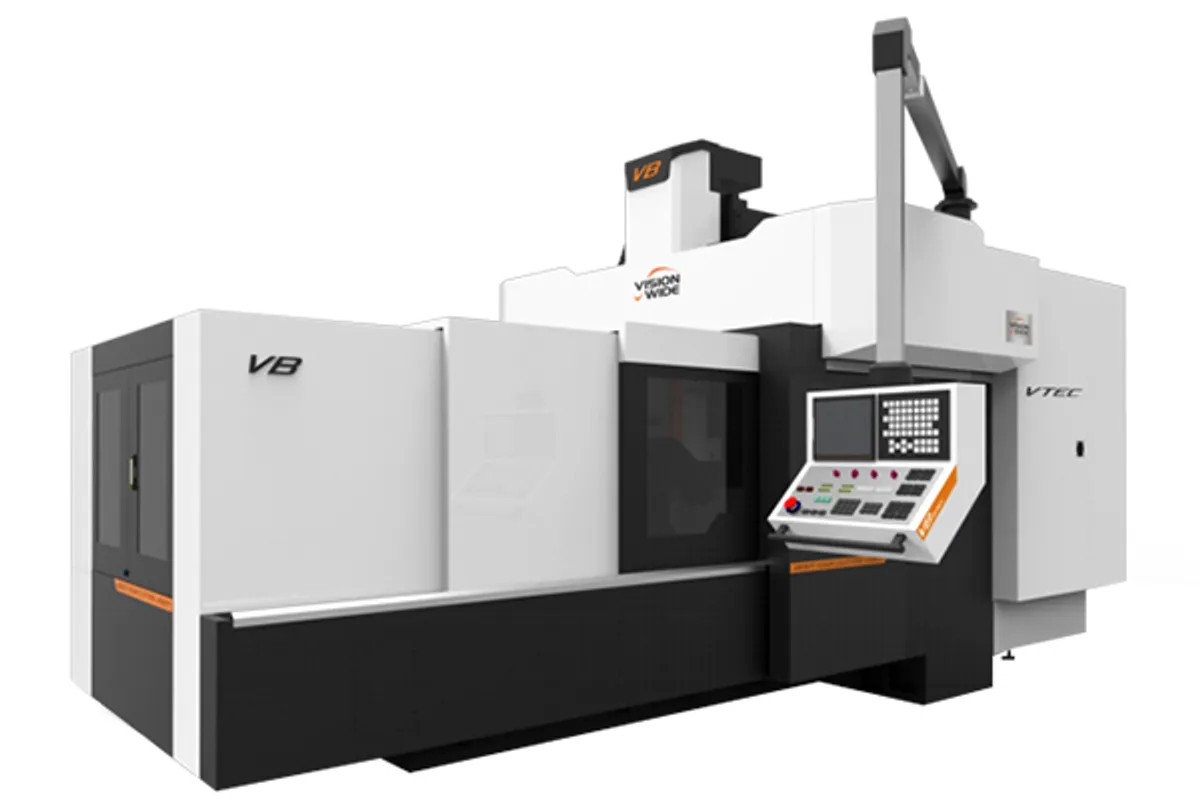

Vision Wide VB-3020
Image: visionwide-tech.com, Vision Wide
Key Specifications
Tool Capacity
Table Size
x axis travel
y axis travel
z axis travel
max table load
How much does the Vision Wide VB-3020 cost?
Price estimate
We do not have a price for the Vision Wide VB-3020 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Vision Wide VB-3020 has 3,100 mm (122.0 in) of X travel, 2,000 mm (78.7 in) of Y and a 3,100×1,700 mm (122.0×66.9 in) table for 11,000 kg (24,250 lb). It is a plain, heavy three-axis machine as delivered, and the option list is where it can be extended.
Four options change what it can do. A rotary table adds a fourth axis for indexing a part to several faces. X/Y/Z axis linear scale replaces motor-side feedback with direct measurement. Auto workpiece measurement lets the machine locate a casting before cutting it. And the coolant options, through-spindle at 20 / 70 bar, through the tool holder at 5 / 20 bar, or oil mist (MQL), decide how well it drills deep holes.
None of those is standard. The base machine is a 4,000 rpm two-step gear spindle, 18.5/22 kW (24.8/29.5 hp), a Fanuc 0iMF PLUS control, a ball screw cooling system, and screw and caterpillar chip conveyors.
Rapids are 12 m/min in X and Y and 15 m/min in Z, and cutting feed is 1-7,000 mm/min. Z travel is 800 mm, with 1,020 mm optional. For a shop that knows what it will cut, the right two or three options make this a much more capable machine than the base specification suggests.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 3,100 mm (122.0 in) |
| Y Axis Travel | 2,000 mm (78.7 in) |
| Z Axis Travel | 800/1,020 mm (31.5/40.2 in)(OPT..) |
| Table Size | 3,100×1,700 mm (122.0×66.9 in) |
| Max Table Load | 11,000 kg (24,250 lb) |
| Spindle Power Cont 30 Min | 18.5/22 kW (24.8/29.5 hp) (22/26 kW (29.5/34.9 hp) OPT.)(30/37 kW (40.2/49.6 hp) OPT.) |
| Spindle Speed 2 Step Gear | 4,000/6,000 rpm(OPT.) |
| Cutting Feed Rate | 1-7,000 mm/min |
| Rapid Traverse Xyz | X/Y：12 m/min，Z：15 m/min |
| Tool Capacity | 32/40 pcs(OPT.) |
Specifications sourced from visionwide-tech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Rotary table available as an option
- Optional X/Y/Z axis linear scale and auto workpiece measurement
- 3,100×1,700 mm (122.0×66.9 in) table for 11,000 kg (24,250 lb)
- Ball screw cooling system is standard
Limitations
- Scales, probing, rotary table and through-tool coolant are all options
- X and Y rapids of 12 m/min
- Spindle speed tops out at 6,000 rpm with the optional gear spindle
Best For
Frequently Asked Questions
01
A rotary table is on the optional accessory list for the VB series. The page gives no size or load for it, so those details come from the maker.
02
Coolant through spindle system 20 / 70 bar, a coolant through tool holder interface with a 5 / 20 bar cutting fluid interface, an oil mist cooling device (MQL) and a spindle ring cutting coolant device for machines with no head attachment.
03
Table 3,100×1,700 mm (122.0×66.9 in), load 11,000 kg (24,250 lb). Travels are 3,100 mm (122.0 in) in X, 2,000 mm (78.7 in) in Y and 800 mm in Z.
04
A Fanuc 0iMF PLUS Controller, a 4,000 rpm two-step gear spindle, a ball screw cooling system, a cutting fluid cooling system, a screw type chip conveyor on the table sides and a caterpillar type chip conveyor with water tank.
