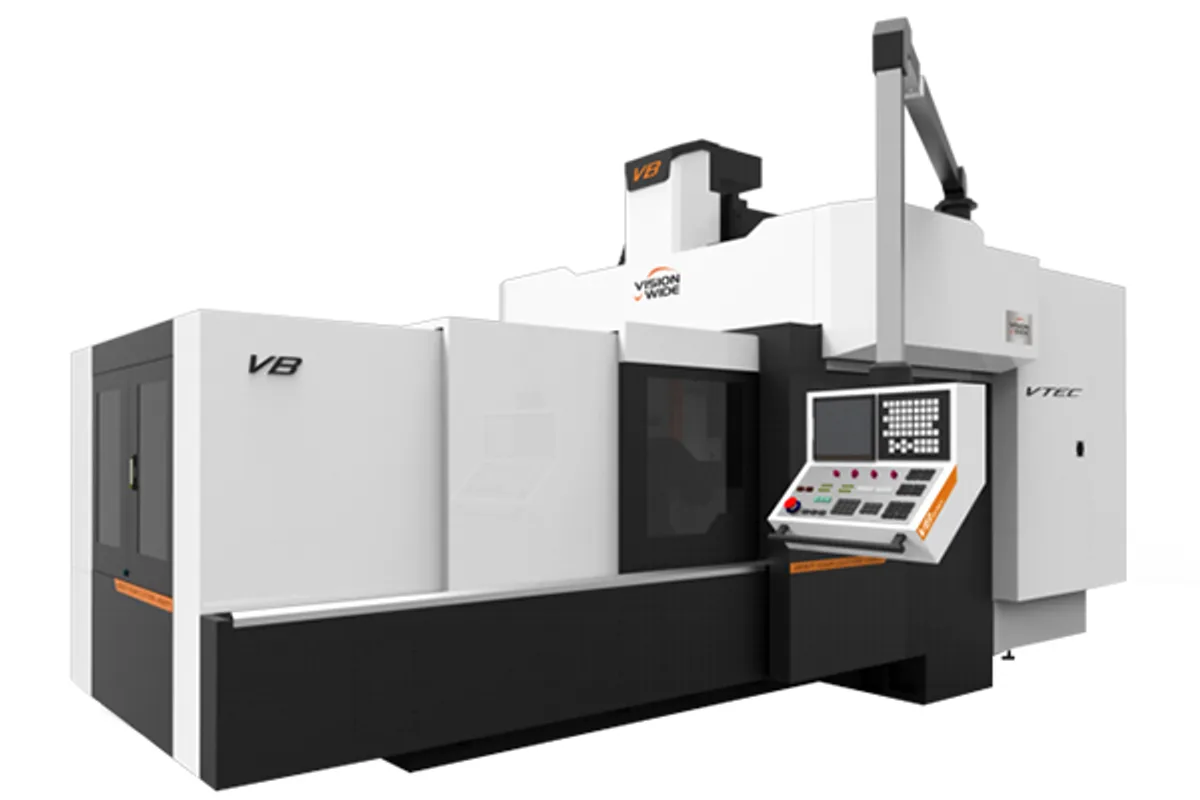

Vision Wide VB-2020
Image: visionwide-tech.com, Vision Wide
Key Specifications
Tool Capacity
Table Size
x axis travel
y axis travel
z axis travel
max table load
How much does the Vision Wide VB-2020 cost?
Price estimate
We do not have a price for the Vision Wide VB-2020 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Vision Wide VB-2020 is the square member of the VB box way series, with 2,000 mm (78.7 in) of travel in both X and Y. Its table measures 2,000×1,700 mm (78.7×66.9 in) and carries 9,000 kg (19,841 lb).
A detail of the head layout matters more on the wider frame. Vision Wide describes a center-line layout of the spindle system in which the spindle sits close to the Y box way, reducing the unbalanced cutting moment and keeping the offset from thermal expansion to a minimum. On any bridge machine the cutting force acts at the tool, some distance in front of the beam. The shorter that distance, the less the head twists the beam in a heavy cut, and the less the tool point moves as the head warms.
Compared with the VB-2016, which has the same X travel, this model adds Y travel and table width and carries more: 9,000 kg against 8,000 kg (17,637 lb).
Z travel is 800 mm, or 1,020 mm as an option. Rapid traverse is 15 m/min on X, Y and Z and cutting feed 1-7,000 mm/min. The spindle is the 4,000 rpm gear type with 18.5/22 kW (24.8/29.5 hp).
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 2,000 mm (78.7 in) |
| Y Axis Travel | 2,000 mm (78.7 in) |
| Z Axis Travel | 800/1,020 mm (31.5/40.2 in)(OPT..) |
| Table Size | 2,000×1,700 mm (78.7×66.9 in) |
| Max Table Load | 9,000 kg (19,841 lb) |
| Spindle Power Cont 30 Min | 18.5/22 kW (24.8/29.5 hp) (22/26 kW (29.5/34.9 hp) OPT.)(30/37 kW (40.2/49.6 hp) OPT.) |
| Spindle Speed 2 Step Gear | 4,000/6,000 rpm(OPT.) |
| Cutting Feed Rate | 1-7,000 mm/min |
| Rapid Traverse Xyz | X/Y/Z：15 m/min |
| Tool Capacity | 32/40 pcs(OPT.) |
Specifications sourced from visionwide-tech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Square 2,000 mm (78.7 in) travels in X and Y
- 2,000×1,700 mm (78.7×66.9 in) table for 9,000 kg (19,841 lb)
- Spindle set close to the Y box way to limit cutting moment, per the maker
- 15 m/min rapids on all three axes
Limitations
- X travel of 2,000 mm (78.7 in) is the shortest in the series
- Cutting feed of 1-7,000 mm/min
- Standard Z travel is 800 mm
Best For
Frequently Asked Questions
01
2,000 mm (78.7 in) in X, 2,000 mm (78.7 in) in Y and 800 mm in Z, with 1,020 mm of Z as an option. The table is 2,000×1,700 mm (78.7×66.9 in).
02
The VB-2016 has 1,600 mm (63.0 in) of Y, a 2,000×1,300 mm (78.7×51.2 in) table and an 8,000 kg (17,637 lb) load. The VB-2020 has 2,000 mm (78.7 in) of Y, a 2,000×1,700 mm (78.7×66.9 in) table and 9,000 kg (19,841 lb).
03
That the spindle system has a center-line layout with the spindle close to the Y box way, reducing the unbalanced cutting moment and the offset of thermal expansion to a minimum.
04
18.5/22 kW (24.8/29.5 hp), with 22/26 kW (29.5/34.9 hp) and 30/37 kW (40.2/49.6 hp) as options. The gear spindle runs 4,000 rpm, or 6,000 rpm optionally.
