Vision Wide MN-10023 / MN-10030
Image: visionwide-tech.com, Vision Wide
Key Specifications
Table Size
x axis travel
y axis travel
z axis travel box way single ballscrew
z axis travel linear way enclosed box ram dual ballscrews
max table load
How much does the Vision Wide MN-10023 / MN-10030 cost?
Price estimate
We do not have a price for the Vision Wide MN-10023 / MN-10030 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Setting up a ten-metre part is slow work, and the Vision Wide MN-10023 / MN-10030 has an option aimed at it: an auto measurement system. X travel is 10,100 mm (397.6 in) and the table is 10,000×2,050 mm (393.7×80.7 in), rated for 26,000 kg (57,319 lb).
A long casting or weldment never lies exactly straight on the table. Aligning it by hand means indicating along its length, shimming, and indicating again. With measurement in the spindle, the machine touches the part at a series of points and the control shifts and rotates the work coordinates to fit. On a part that takes a crane and half a shift to load, that is time recovered on every job.
The option sits beside XYZ-axis linear scale feedback, also optional, which matters for the same reason at this length: what the probe finds is only as true as the axis that carries it.
The machine moves at 8 m/min in X/Y rapid, with a cutting feed range of 1-7,000 mm/min. Y travel is 2,300 mm on the MN-10023 and 3,000 mm on the MN-10030. Both axes of the MN-10030 qualify for the standard ballscrew support device. The spindle is a box way 4,000rpm gear type with 18.5/22 kW (24.8/29.5 hp).
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 10,100 mm (397.6 in) |
| Y Axis Travel | 2,300/ 3,000 mm (90.6/ 118.1 in) |
| Z Axis Travel Box Way Single Ballscrew | 920 / 1,020 mm (36.2 / 40.2 in)(Opt.) |
| Z Axis Travel Linear Way Enclosed Box Ram Dual Ballscrews | 1,000 mm (39.4 in)(Opt.) / 1,200 mm (47.2 in)(Opt.) / 1,400 mm (55.1 in)(Opt.) |
| Table Size | 10,000×2,050 mm (393.7×80.7 in) |
| Max Table Load | 26,000 kg (57,319 lb) |
| Spindle Power Cont 30 Min | 18.5/22 kW (24.8/29.5 hp)(22/26 kW (29.5/34.9 hp) Opt.)(30/37 kW (40.2/49.6 hp) Opt.) |
| Spindle Speed Box Way 2 Step Gear | 4,000 / 6,000 rpm(Opt.) |
| Spindle Speed Linear Way Enclosed Box Ram 2 Step Gear | 4,000 / 6,000 rpm(Opt.) |
| Spindle Speed Linear Way Enclosed Box Ram Direct Driven | 10,000 rpm(Opt.) |
| Cutting Feed Rate | 1-7,000 mm/min |
| Rapid Traverse Xy | 8 m/min |
| Rapid Traverse Z Box Way or Linear Way | 15 m/min |
| Rapid Traverse Z Enclosed Box Ram | 12 m/min |
Specifications sourced from visionwide-tech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 10,100 mm (397.6 in) of X travel, the longest MN length
- Optional auto measurement system and XYZ-axis linear scale feedback
- 26,000 kg (57,319 lb) table load
- X, Y-axis ballscrew support device is standard
Limitations
- Measurement and scales are both options
- X/Y rapid of 8 m/min and cutting feed of 1-7,000 mm/min
- Table width of 2,050 mm (80.7 in) is the narrowest at this length
Best For
Frequently Asked Questions
01
An auto measurement system is on the optional accessory list for the MN series. XYZ-axis linear scale feedback is also optional. Neither is part of the standard machine.
02
X travel is 10,100 mm (397.6 in) and the table measures 10,000×2,050 mm (393.7×80.7 in). The page gives no overall machine length or foundation data.
03
26,000 kg (57,319 lb). The eight-metre MN-8023 takes 24,000 kg (52,910 lb), so the longest table adds little capacity for its extra length.
04
2,300 mm (90.6 in) and 3,000 mm (118.1 in) respectively, from the row 2,300/ 3,000 mm (90.6/ 118.1 in). X travel is the same for both.
More from Vision Wide
Other Vertical Machining Centers (VMC)
Jingdiao JDLVM400T_A10S
Campro PV-2216
Feeler VMP-32
Hurco VMX24i

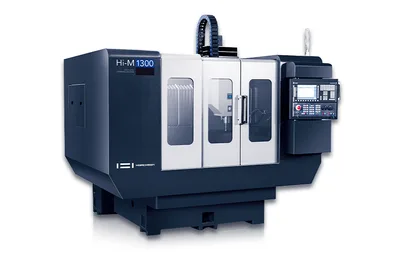

Hwacheon Hi-M1300
