Vision Wide Vertical Machining Centers (VMC)

Vision Wide SM-2622

Q: How much does the Vision Wide SM-2622 cost?

The price estimate for the Vision Wide SM-2622 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/vision-wide-sm-2622#price; the request is passed to Vision Wide or an authorised dealer.

Specs verified 2026-10-04 · visionwide-tech.com Updated 2026-10-04

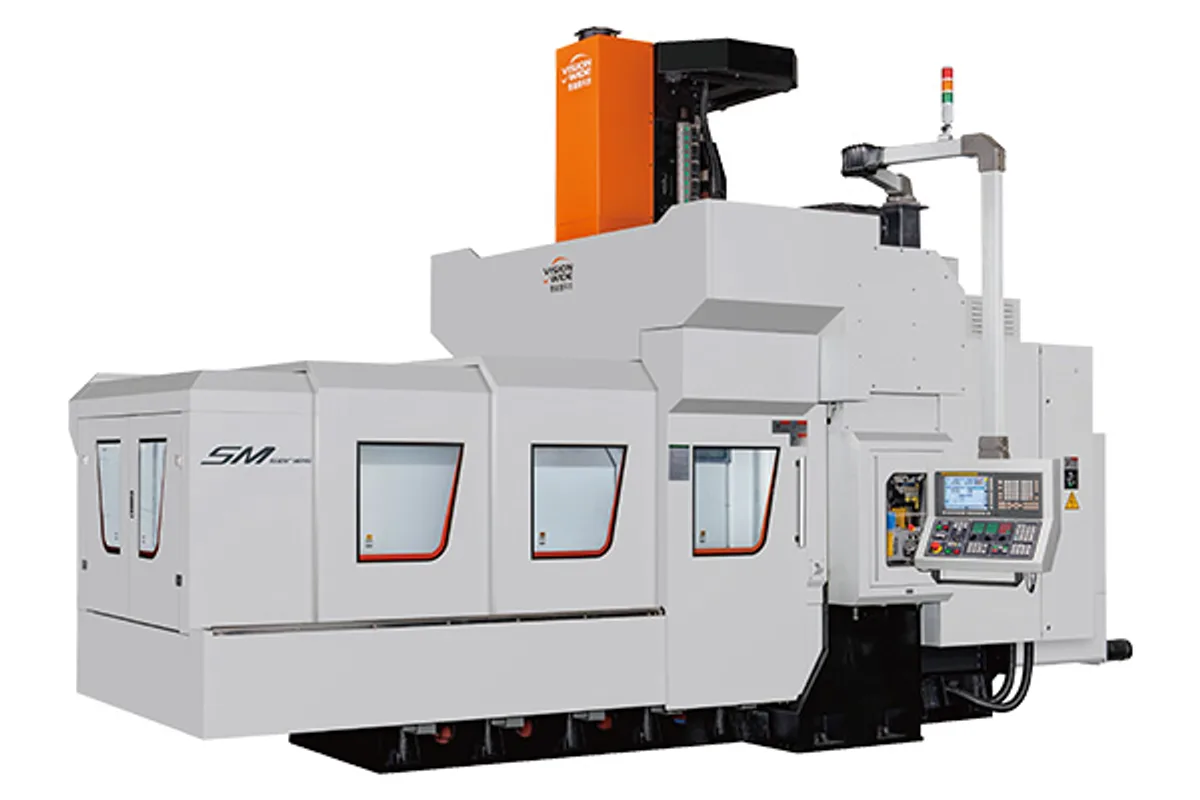

Image: visionwide-tech.com, Vision Wide

Key Specifications

Max Spindle

6,000 rpm

Table Size

2,800×2,100 mm (110.2×82.7 in)

x axis travel

2,600 mm (102.4 in)

y axis travel

2,200 mm (86.6 in)

z axis travel

800 / 1,000 mm (31.5 / 39.4 in)

max table load

12,000 kg (26,455 lb)

How much does the Vision Wide SM-2622 cost?

Price estimate

Uncertain

We do not have a price for the Vision Wide SM-2622 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

With the Vision Wide SM-2622 the SM series moves to its larger frame. Spindle power rises to 22 / 26 kW (29.5 / 34.9 hp), the table widens to 2,800×2,100 mm (110.2×82.7 in), and Y travel becomes 2,200 mm (86.6 in). X travel is 2,600 mm (102.4 in).

Compare the SM-2613, which shares the X stroke but has a 15 / 18.5 kW (20.1 / 24.8 hp) motor and a 2,800×1,100 mm (110.2×43.3 in) table. The SM-2622 is not just a wider version of it; it is a heavier class of machine that happens to start at the same length.

What does the wide table buy? Vision Wide names mold bases among the parts the SM is meant for. A mold base is a stack of thick plates, each needing its faces milled flat and its bores and pockets cut square, and plates of that kind can be set two or three abreast here.

The table load is 12,000 kg (26,455 lb). Spindle speed is 6,000 rpm through a 2-step gearbox. Tool capacity is listed as 24 / 32 / 40 pcs with a vertical type tool change, and the standard control is the FANUC 0iMF Plus.

Full Specifications

Parameter	Value
X Axis Travel	2,600 mm (102.4 in)
Y Axis Travel	2,200 mm (86.6 in)
Z Axis Travel	800 / 1,000 mm (31.5 / 39.4 in)
Table Size	2,800×2,100 mm (110.2×82.7 in)
Max Table Load	12,000 kg (26,455 lb)
Spindle Power Cont 30 Min	22 / 26 kW (29.5 / 34.9 hp)
Max Spindle Speed	6,000 rpm
Tool Capacity Vertical Tool Change	24 / 32 / 40 pcs

Specifications sourced from visionwide-tech.com — verified 2026-10-04

Strengths & Limitations

Strengths

22 / 26 kW (29.5 / 34.9 hp) spindle motor
2,800×2,100 mm (110.2×82.7 in) table
2,200 mm (86.6 in) of Y travel covers the table width
12,000 kg (26,455 lb) table load

Limitations

Shortest X travel of the larger SM frame at 2,600 mm (102.4 in)
6,000 rpm top speed with the standard geared spindle
No feed or rapid traverse figure can be taken from the maker's table

Best For

Mold base plates set side by side Heavy milling with a 22 / 26 kW (29.5 / 34.9 hp) geared spindle Wide steel parts up to 12,000 kg (26,455 lb)

Frequently Asked Questions

01 What spindle power does the Vision Wide SM-2622 have?

22 / 26 kW (29.5 / 34.9 hp), continuous and short-time, at a spindle speed of 6,000 rpm. The SM-2613 with the same X travel has 15 / 18.5 kW (20.1 / 24.8 hp).

02 How large is the SM-2622 table?

2,800×2,100 mm (110.2×82.7 in), with a maximum table load of 12,000 kg (26,455 lb). X travel is 2,600 mm (102.4 in) and Y travel 2,200 mm (86.6 in).

03 Is there an SM-2622 with more Y travel?

The SM-2622Y lists 2,700 mm (106.3 in) of Y travel with the same table, load and spindle. Vision Wide's feature list describes this as the Y axis increasing the machining stroke.

04 What tool magazine sizes are listed for the SM-2622?

24 / 32 / 40 pcs with a vertical type tool change. The arm type ATC magazine in those three sizes is on the optional accessory list for the SM series.
