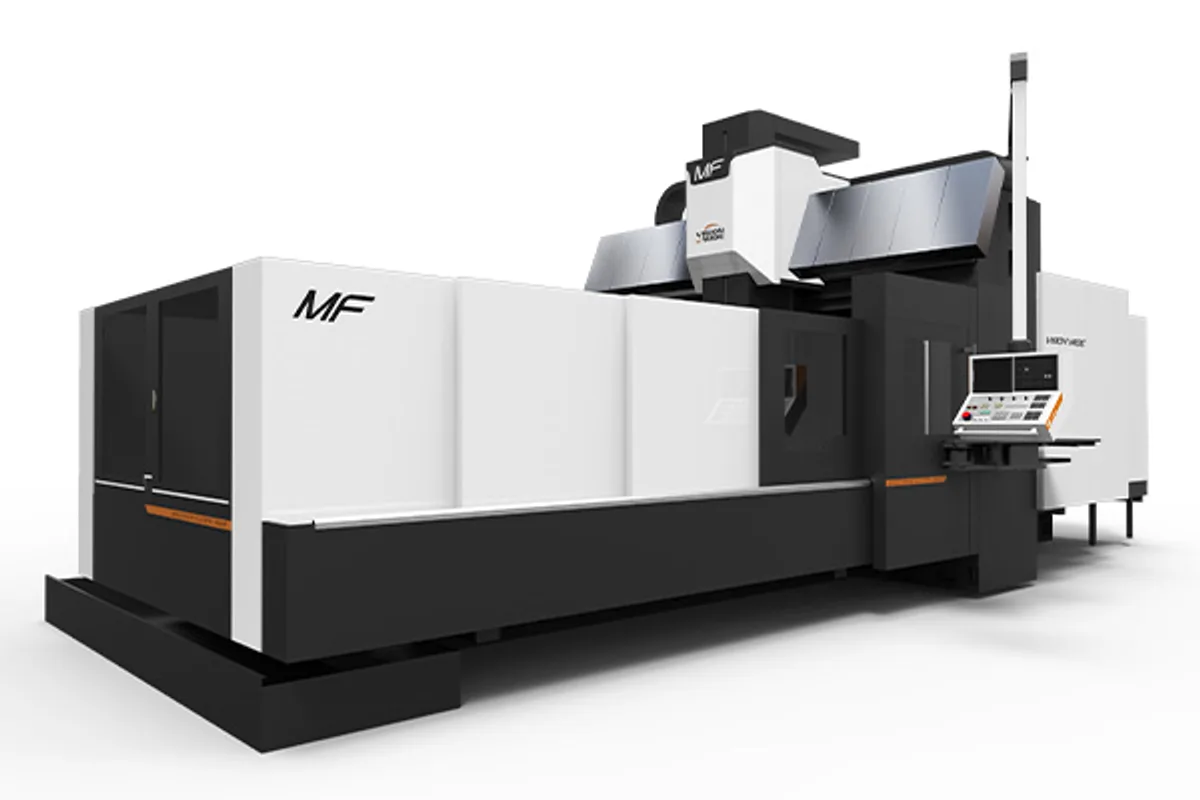

Vision Wide MF-4026
Image: visionwide-tech.com, Vision Wide
Key Specifications
Max Spindle
Tool Capacity
Table Size
x axis travel
y axis travel
z axis travel
How much does the Vision Wide MF-4026 cost?
Price estimate
We do not have a price for the Vision Wide MF-4026 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Vision Wide MF-4026 is a four-metre box way milling machine with a geared head: 4,200 mm (165.4 in) of X, 2,600 mm (102.4 in) of Y, and a 4,200x2,050 mm (165.4x80.7 in) table for 13,000 kg (28,660 lb).
The head is described in two statements. Its Z-axis is at the symmetrical position of the spindle motor, which the maker credits with accuracy and fine, smooth movement. And its gear head uses Japan-made JIS0 gears for high rigidity, high precision and low noise. A motor set on the ram's centreline loads both Z ways equally, so the ram does not twist as it feeds; precise gears pass the torque on without ripple.
The table lists the spindle as 4,000/6,000 rpm(Opt.). That means a 4,000 rpm two-step gear spindle as built and a 6,000 rpm gear spindle as the option. No faster spindle is offered, and none would suit the machine.
Motor power is where the choice lies. The standard is 18.5/22 kW (24.8/29.5 hp); the options are 22/26 kW (29.5/34.9 hp) and 30/37 kW (40.2/49.6 hp). For a 13,000 kg table and the slant-beam structure, the largest is a fair match.
Rapids are 10 m/min in X and 12 m/min in Y and Z.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 4,200 mm (165.4 in) |
| Y Axis Travel | 2,600 mm (102.4 in) |
| Z Axis Travel | 920/1,020 mm (36.2/40.2 in)(Opt.) |
| Table Size | 4,200x2,050 mm (165.4x80.7 in) |
| Max Table Load | 13,000 kg (28,660 lb) |
| Spindle Power Cont 30 Min | 18.5/22 kW (24.8/29.5 hp)(22/26 kW (29.5/34.9 hp) Opt.) (30/37 kW (40.2/49.6 hp) Opt.) |
| Max Spindle Speed | 4,000/6,000 rpm(Opt.) |
| Cutting Feed Rate | 1-7,000 mm/min |
| Rapid Traverse Xyz | X:10 m/min Y/Z:12 m/min |
| Tool Capacity | 40/60 pcs(Opt.) |
Specifications sourced from visionwide-tech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Gear head with Japan-made JIS0 gears, per the maker
- Z-axis at the symmetrical position of the spindle motor
- Motor options of 22/26 kW (29.5/34.9 hp) and 30/37 kW (40.2/49.6 hp)
- 4,200x2,050 mm (165.4x80.7 in) table for 13,000 kg (28,660 lb)
Limitations
- Top speed of 6,000 rpm, and only as an option
- No spindle torque figure is published
- X rapid of 10 m/min against 12 m/min in Y and Z
Best For
Frequently Asked Questions
01
A 4,000 rpm two-step gear spindle as standard and a 6,000 rpm 2-step gear spindle as an option. The gear head is described as using Japan-made JIS0 gears.
02
18.5/22 kW (24.8/29.5 hp) as standard, with 22/26 kW (29.5/34.9 hp) and 30/37 kW (40.2/49.6 hp) as options. Each pair is the continuous and short-time rating.
03
X 4,200 mm (165.4 in), Y 2,600 mm (102.4 in), Z 920 mm or optionally 1,020 mm. The table is 4,200x2,050 mm (165.4x80.7 in) for 13,000 kg (28,660 lb).
04
The MF-4000 has 2,300 mm (90.6 in) of Y travel and the MF-4026 has 2,600 mm (102.4 in). Table, load, spindle and rapids are identical in the maker's table.
