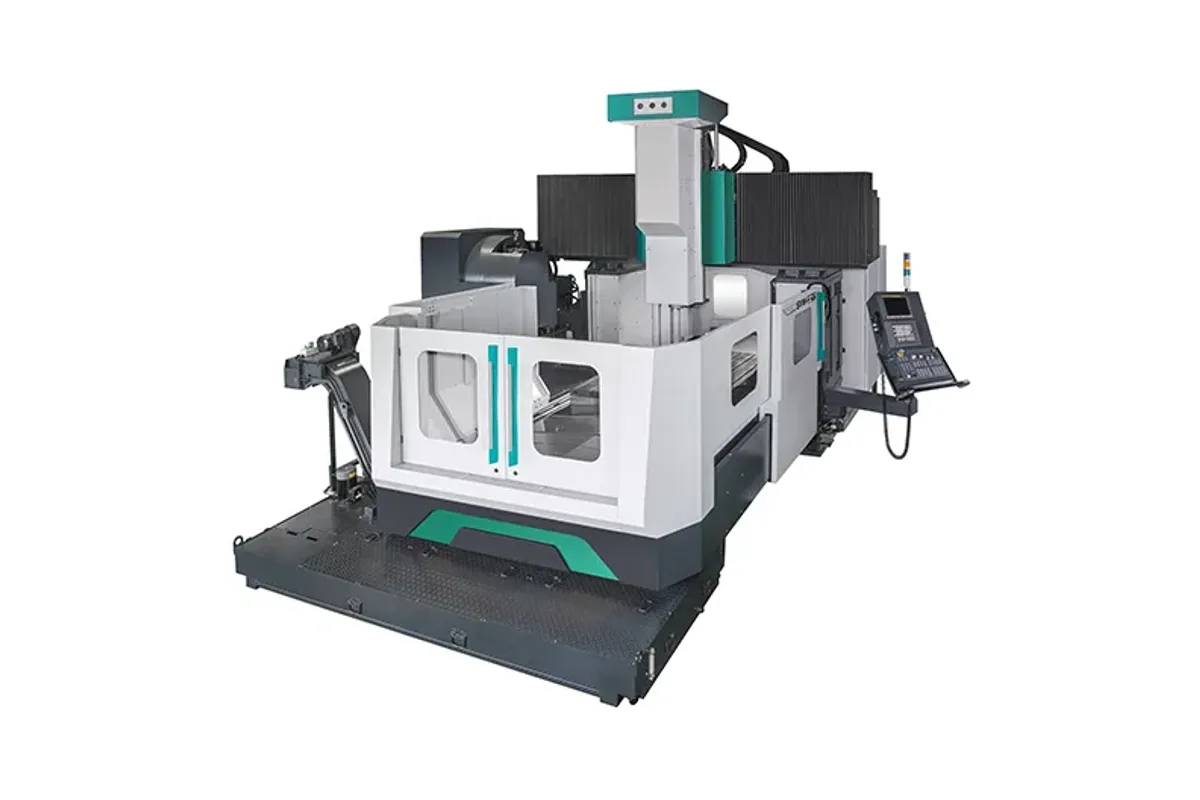

Feeler SVW-3222
Image: feeler.com, Feeler
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
x axis travel
z axis travel
table length
How much does the Feeler SVW-3222 cost?
Price estimate
We do not have a price for the Feeler SVW-3222 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Feeler SVW-3222 pairs a 3,000 × 1,800 mm (118.1 × 70.9 in) table with 3,200 mm (126.0 in) of X travel and a 12 ton load rating. It is the middle length of the 1,800 mm width: big enough for mould bases and machine frames, without the floor length of a four-metre table.
What multi-face machining adds at this size is the ability to finish the sides of a large block as well as its top. Feeler offers an optional automatic attachment change system for the series and says it reduces manual changeover time and machining errors. With an angle head changed automatically, side faces, end faces and the top can be cut in one clamping, which is where accuracy between faces comes from. The heads are not itemised in the table, so the quotation should list them.
The 12 ton rating compares with 11 ton on the shorter SVW-2822 and matches the wider SVW-3223. X rapid is 12 m/min (472 ipm), Y and Z 15 m/min (591 ipm).
The spindle is listed at 6,000 rpm on BT/DIN/CAT 50, driven through a two-speed gearbox, with 8,000-15,000 rpm and #40 as the bracketed alternative. Z travel is 800 mm (31.5 in) or 1,000 mm (39.4 in). The magazine is 24 tools, with 32, 40 and 60 listed as options.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 3,200 mm (126.0 in) |
| Z Axis Travel | 800 (1,000) mm (31.5 (39.4) in) |
| Table Length | 3,000 mm (118.1 in) |
| Table Width | 1,800 mm (70.9 in) |
| Max Table Load | 12 ton |
| Max Spindle Speed | 6,000 (8,000-15,000) rpm |
| Spindle Taper | BT/DIN/CAT 50 (#40) |
| Rapid Traverse X | 12 m/min (472 ipm) |
| Rapid Traverse Y | 15 m/min (591 ipm) |
| Rapid Traverse Z | 15 m/min (591 ipm) |
| Tool Capacity | 24 (32/40/60) |
Specifications sourced from feeler.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 3,000 × 1,800 mm (118.1 × 70.9 in) table with a 12 ton rating
- Optional automatic attachment change for side and end faces in one clamping
- Two-speed geared spindle on a 50 taper
- Y and Z rapids of 15 m/min (591 ipm)
Limitations
- X rapid is 12 m/min (472 ipm), below the 15 m/min of the SVW-2822
- Attachment heads are optional and not itemised in the table
- No Y travel, spindle power or torque on this page
Best For
Frequently Asked Questions
01
X travel 3,200 mm (126.0 in), Z travel 800 mm (31.5 in) with 1,000 mm (39.4 in) bracketed, table 3,000 × 1,800 mm (118.1 × 70.9 in), maximum load 12 ton.
02
The series is titled a gantry multi-face machining center, and Feeler offers an optional automatic attachment change system for versatile applications. Side machining depends on the attachment heads ordered, which the series table does not list.
03
The SVW-3223 has a 2,000 mm wide table against 1,800 mm here. Table length, X travel, the 12 ton load, rapids, spindle and magazine rows are identical in the two columns.
04
24 in the listed magazine, with 32, 40 or 60 as bracketed alternatives. With attachment heads in use, plan for the extra tools each face needs when choosing the magazine size.
