Vision Wide SM-2622Y

Q: How much does the Vision Wide SM-2622Y cost?

The price estimate for the Vision Wide SM-2622Y is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/vision-wide-sm-2622y#price; the request is passed to Vision Wide or an authorised dealer.

Specs verified 2026-10-04 · visionwide-tech.com Updated 2026-10-04

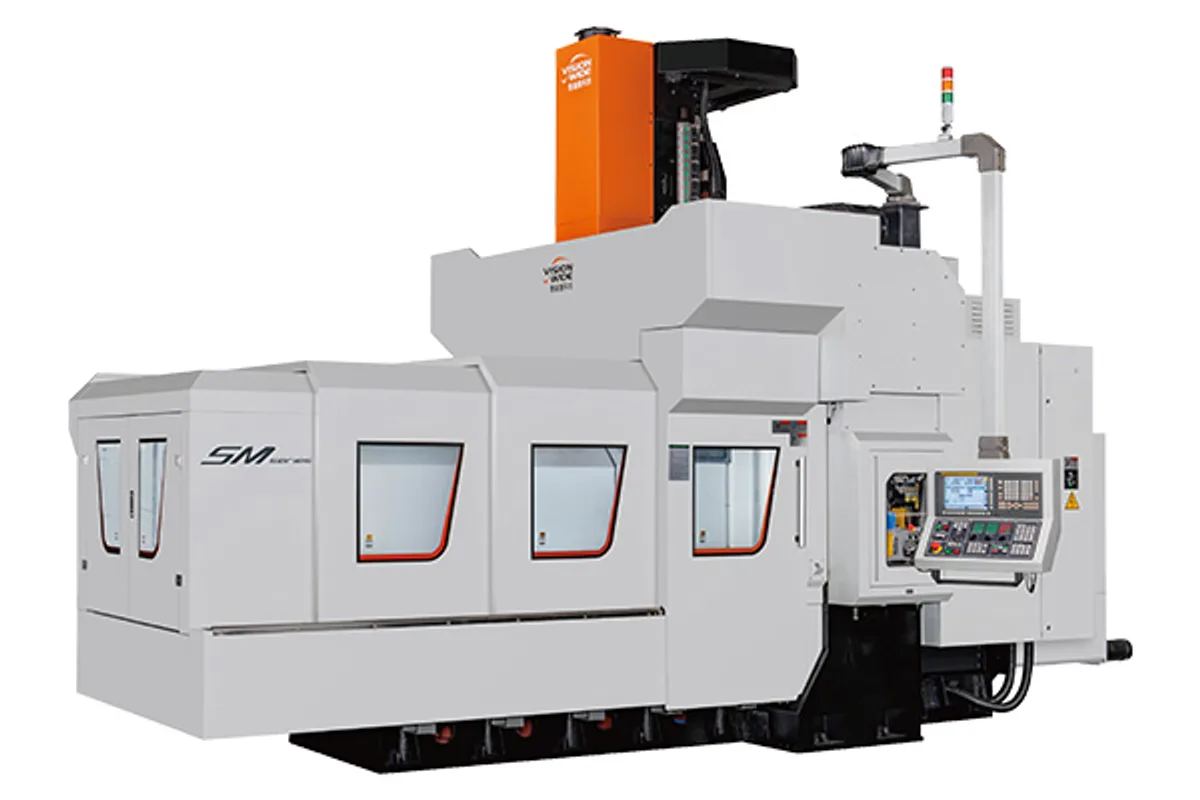

Image: visionwide-tech.com, Vision Wide

Key Specifications

Max Spindle

6,000 rpm

Table Size

2,800×2,100 mm (110.2×82.7 in)

x axis travel

2,600 mm (102.4 in)

y axis travel

2,700 mm (106.3 in)

z axis travel

800 / 1,000 mm (31.5 / 39.4 in)

max table load

12,000 kg (26,455 lb)

How much does the Vision Wide SM-2622Y cost?

Price estimate

Uncertain

We do not have a price for the Vision Wide SM-2622Y that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Y in Vision Wide SM-2622Y stands for a longer cross axis. Y travel is 2,700 mm (106.3 in), where the plain SM-2622 has 2,200 mm (86.6 in); the maker's feature list puts it as "Y axis increases machining stroke".

Nothing else in the table changes. X travel is 2,600 mm (102.4 in), the table is 2,800×2,100 mm (110.2×82.7 in) for 12,000 kg (26,455 lb), and the spindle is the 6,000 rpm geared unit on 22 / 26 kW (29.5 / 34.9 hp). So the question is only whether the spindle needs to travel beyond the edges of a 2,100 mm (82.7 in) wide table. It does when side faces are machined with an angle head, when a part overhangs the table, or when a probe or tool setter is mounted outside the work area.

This is also the squarest SM: the cross travel is slightly longer than the X travel.

A note on the model list. Vision Wide prints a separate column for an SM-2622E, and every row in it is the same as this model's, Y travel included. The page gives no explanation of what the E version changes. Anyone quoted an E machine should ask the maker what is different, because the published figures do not show it.

Full Specifications

Parameter	Value
X Axis Travel	2,600 mm (102.4 in)
Y Axis Travel	2,700 mm (106.3 in)
Z Axis Travel	800 / 1,000 mm (31.5 / 39.4 in)
Table Size	2,800×2,100 mm (110.2×82.7 in)
Max Table Load	12,000 kg (26,455 lb)
Spindle Power Cont 30 Min	22 / 26 kW (29.5 / 34.9 hp)
Max Spindle Speed	6,000 rpm
Tool Capacity Vertical Tool Change	24 / 32 / 40 pcs

Specifications sourced from visionwide-tech.com — verified 2026-10-04

Strengths & Limitations

Strengths

2,700 mm (106.3 in) of Y travel over a 2,100 mm (82.7 in) wide table
22 / 26 kW (29.5 / 34.9 hp) spindle motor
12,000 kg (26,455 lb) table load
Cross travel slightly longer than the 2,600 mm (102.4 in) X travel

Limitations

The table is no larger than on the SM-2622
The maker's page does not explain how the SM-2622E, with identical figures, differs
Standard Z travel is 800 mm

Best For

Side-face machining of parts as wide as the table Workpieces that overhang a 2,800×2,100 mm (110.2×82.7 in) table Square parts up to 12,000 kg (26,455 lb)

Frequently Asked Questions

01 What does the Y mean in Vision Wide SM-2622Y?

A longer Y axis. The SM-2622Y lists 2,700 mm (106.3 in) of Y travel and the SM-2622 lists 2,200 mm (86.6 in). All other rows of the two tables are the same.

02 Is the SM-2622E different from the SM-2622Y?

Not in the published figures. The SM-2622E column matches the SM-2622Y in every row, including 2,700 mm (106.3 in) of Y travel, and the page states no difference between them. Ask Vision Wide what the E version changes.

03 What are the table size and load of the SM-2622Y?

The table measures 2,800×2,100 mm (110.2×82.7 in) and carries up to 12,000 kg (26,455 lb). X travel is 2,600 mm (102.4 in).

04 What spindle does the SM-2622Y use?

A linear way 6,000 rpm 2-step gear type spindle is standard, with 22 / 26 kW (29.5 / 34.9 hp) of motor power. Faster built-in and direct driven spindles are optional.
