Sharp KMA-1H-CNC

Q: How much does the Sharp KMA-1H-CNC cost?

The price estimate for the Sharp KMA-1H-CNC is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/sharp-kma-1h-cnc#price; the request is passed to Sharp or an authorised dealer.

Specs verified 2026-10-04 · sharp-industries.com Updated 2026-10-04

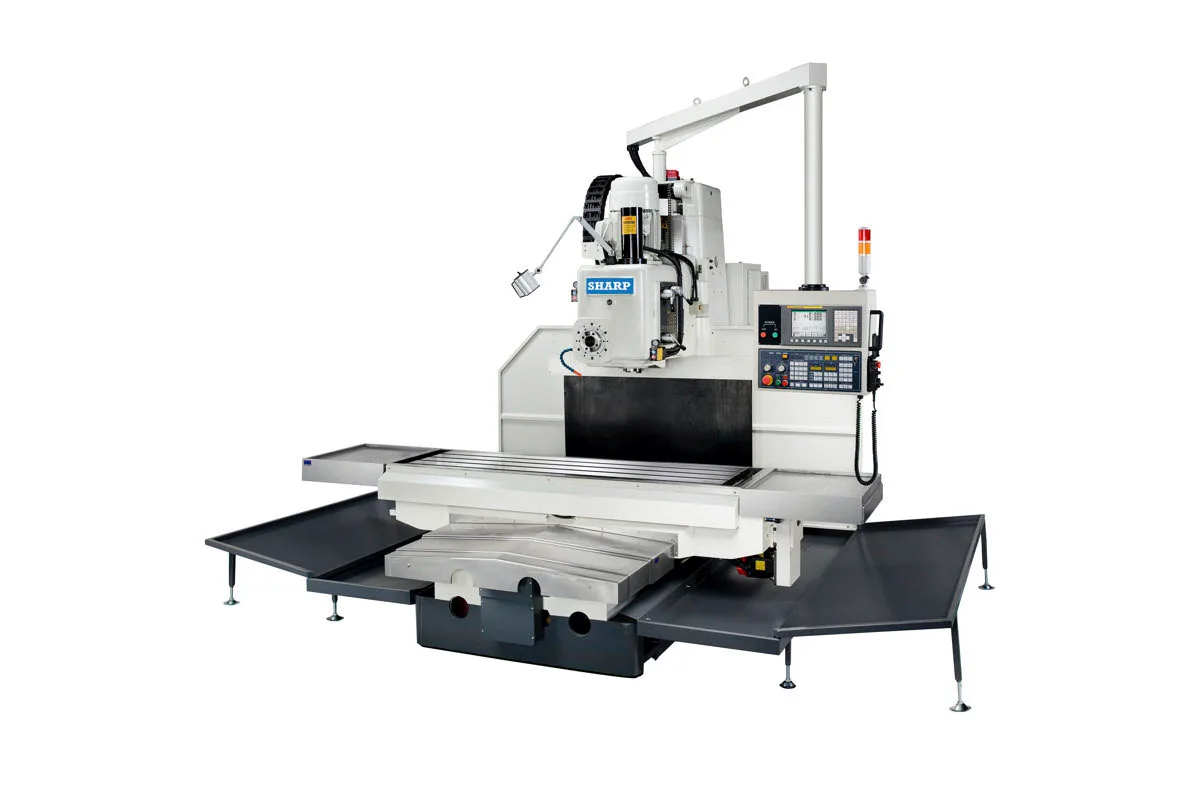

Sharp KMA-H-CNC series bed mill with vertical and horizontal spindles (series photo shown on the KMA-1H-CNC page)

Image: sharp-industries.com, Sharp

Key Specifications

Max Spindle

45-1500 rpm 18 steps

Spindle Taper

NT50

Table Size

74.8 x 19.7 in (1900 x 500 mm)

Spindle Power

4 hp, 10 hp (3 kW, 7.45 kW)

Accuracy

0.00039 in (0.01 mm)

Repeatability

0.000236 in (0.006 mm)

How much does the Sharp KMA-1H-CNC cost?

Price estimate

Uncertain

We do not have a price for the Sharp KMA-1H-CNC that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

Two spindles on one head set the Sharp KMA-1H-CNC apart from an ordinary CNC bed mill. The milling head carries a vertical and a horizontal spindle, driven by separate motors through 18-speed gearheads, and both take NT50 tooling. With an optional indexer or rotary table the horizontal spindle lets the machine reach the sides of a part as well as the top, which Sharp calls 5-sided machining. There is no automatic tool change.

Be careful with this model's travel figures. Sharp's bullet list gives 33.5" x 51.2" of travel on a 19.7" x 74.8" table. In the specification table the Y axis is confirmed at 33.5 in (850 mm), but the X row prints an inch value and a metric value that do not match and the Z row disagrees with the summary at the head of the page, so neither is repeated here as a table figure. Get the travels in writing before committing a job to it.

Other rows are consistent. The table is 74.8 x 19.7 in (1900 x 500 mm) and sits 32.25 in (820 mm) off the floor. Positioning accuracy is listed as 0.00039 in (0.01 mm) and repeatability as 0.000236 in (0.006 mm). The X axis runs on a dovetail way and Y and Z on square ways, all with Turcite B.

The spindle motor row reads 4 hp, 10 hp (3 kW, 7.45 kW) without saying which spindle each figure belongs to. Weight is 12,125 lb (5500 kg).

Full Specifications

Parameter	Value
Y Axis Travel	33.5 in (850 mm)
Distance Spindle Center to Column	18.9 in (480 mm)
Table Size	74.8 x 19.7 in (1900 x 500 mm)
Table Height From Floor	32.25 in (820 mm)
T-Slots	5 x 0.7 x 3.15 in (5 x 17.78 x 80 mm)
Spindle Taper	NT50
Max Spindle Speed	45-1500 rpm 18 steps
Spindle Motor Power	4 hp, 10 hp (3 kW, 7.45 kW)
Spindle Bearing Bore	3.54 in(Front) / 3.35 in (Rear) (90 mm (Front) / 85 mm (Rear))
Positioning Accuracy	0.00039 in (0.01 mm)
Repeatability	0.000236 in (0.006 mm)
X Axis Way Size Spacing	2.33+3.07 in / 16.54 in (59.2+78 mm / 420 mm)
Y Axis Way Size Spacing	4.72+4.72 in / 28.35 in (120+120 mm / 720 mm)
Z Axis Way Size Spacing	3.94+3.94 in / 15.75 in (100+100 mm / 400 mm)
Machine Dimensions	168.5 x 148.82 x 117.32 in (4280 x 3780 x 2980 mm)
Machine Height	117.32 in (2980 mm)
Machine Weight	12,125 lb (5500 kg)
Power Requirement	25 kVA
Air Requirement	6-8kg/cm2

Specifications sourced from sharp-industries.com — verified 2026-10-04

Strengths & Limitations

Strengths

Vertical and horizontal NT50 spindles on one milling head, driven by separate motors
33.5 in (850 mm) of Y travel
Listed positioning accuracy of 0.00039 in (0.01 mm)
Dovetail X way and square Y and Z ways with Turcite B
5-sided machining with the optional indexer or rotary table

Limitations

X and Z travel rows on Sharp's page are not self-consistent
No automatic tool change on either spindle
Spindle speeds stop at 1,500 rpm
Indexer, rotary table and outboard table support are optional

Best For

Parts needing top and side machining in one setup Heavy, slow cuts with NT50 tooling Long workpieces on a 74.8 in table Repair and tooling work where setups change more often than tools

Frequently Asked Questions

01 What are the two spindles on the KMA-1H-CNC for?

The vertical spindle works the top of the part and the horizontal spindle works its sides. Sharp says the horizontal spindle allows 5-sided machining when the machine is installed with the optional indexer or rotary table, so operations that would need several setups can be done at one.

02 What spindle speeds and motors does the KMA-1H-CNC have?

The table lists 45-1500 rpm in 18 steps on an NT50 taper, and a spindle motor entry of 4 hp, 10 hp (3 kW, 7.45 kW). Sharp's page does not state which figure applies to the vertical spindle and which to the horizontal one, so confirm it when quoting.

03 How accurate is the KMA-1H-CNC?

Sharp lists a positioning accuracy of 0.00039 in (0.01 mm) and a repeatability of 0.000236 in (0.006 mm). The axes run on plain ways with Turcite B, a dovetail on X and square ways on Y and Z, with hardened and ground slideways.

04 What are the size and services of the KMA-1H-CNC?

Overall dimensions are 168.5 x 148.82 x 117.32 in (4280 x 3780 x 2980 mm) and weight is 12,125 lb (5500 kg). Electrical demand is 25 kVA and the air supply is listed as 6-8kg/cm2. Machine height on its own is 117.32 in (2980 mm).
