Vision Wide Vertical Machining Centers (VMC)

Vision Wide MS-2127

Q: How much does the Vision Wide MS-2127 cost?

The price estimate for the Vision Wide MS-2127 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/vision-wide-ms-2127#price; the request is passed to Vision Wide or an authorised dealer.

Specs verified 2026-10-04 · visionwide-tech.com Updated 2026-10-04

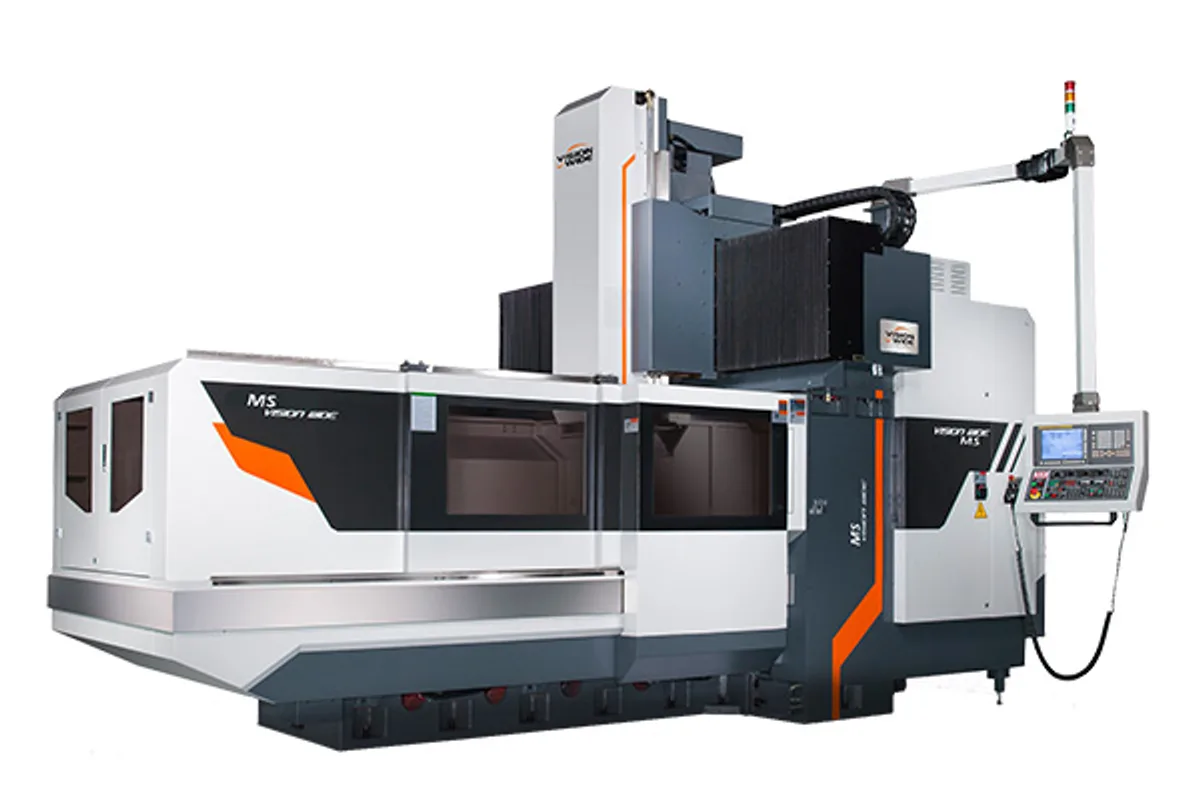

Image: visionwide-tech.com, Vision Wide

Key Specifications

Table Size

2,000x1,800 mm (78.7x70.9 in)

x axis travel

2,100 mm (82.7 in)

y axis travel

2,700 mm (106.3 in)

z axis travel box way

800/1,020 mm (31.5/40.2 in)(Opt.)

max table load

8,000 kg (17,637 lb)

spindle power cont 30 min

18.5/22 kW (24.8/29.5 hp) (22/26 kW (29.5/34.9 hp) Opt.)

How much does the Vision Wide MS-2127 cost?

Price estimate

Uncertain

We do not have a price for the Vision Wide MS-2127 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Vision Wide MS-2127 has the widest reach and the shortest bed of the MS milling machines. Y travel is 2,700 mm (106.3 in); X travel is 2,100 mm (82.7 in).

Its table measures 2,000x1,800 mm (78.7x70.9 in) and carries 8,000 kg (17,637 lb), exactly as on the MS-2120, which has 2,000 mm (78.7 in) of Y. The difference between the two is travel beyond the table edges. On the MS-2127 the head can run well clear of the part on either side.

That clearance has two uses. One is side milling with a head attachment, which needs room to bring the tool down beside the part. The other is simply access: with the head parked far to one side, a crane can lower a part straight onto the table without working around the spindle.

The Y axis carries its saddle on roller ways, with the upper way set on top of the beam for span, and it rapids at 20 m/min. X rapids at 24 m/min and Z at 15 m/min.

The head is the box way type with a 2-step gear spindle: 6,000 rpm, 18.5/22 kW (24.8/29.5 hp). Z travel is 800 mm, or 1,020 mm as an option.

Full Specifications

Parameter	Value
X Axis Travel	2,100 mm (82.7 in)
Y Axis Travel	2,700 mm (106.3 in)
Z Axis Travel Box Way	800/1,020 mm (31.5/40.2 in)(Opt.)
Table Size	2,000x1,800 mm (78.7x70.9 in)
Max Table Load	8,000 kg (17,637 lb)
Spindle Power Cont 30 Min	18.5/22 kW (24.8/29.5 hp) (22/26 kW (29.5/34.9 hp) Opt.)
Spindle Speed Box Way 2 Step Gear	6,000/4,000 rpm(Opt.)
Cutting Feed Rate	1-10,000 mm/min
Rapid Traverse Xyz	X/Y/Z : 24/20/15 m/min
Tool Capacity Floor Standing Vertical Tool Change	32/40 pcs(Opt.)
Tool Capacity Floor Standing Vertical Horizontal Tool Change	32 pcs(Opt.)/40 pcs(Opt.)/60 pcs(Opt.)

Specifications sourced from visionwide-tech.com — verified 2026-10-04

Strengths & Limitations

Strengths

2,700 mm (106.3 in) of Y travel on a 2,100 mm (82.7 in) bed
Head can park clear of the 2,000x1,800 mm (78.7x70.9 in) table for crane loading
Y-axis roller ways with the upper way on top of the beam
X rapid of 24 m/min on the short bed

Limitations

Table and load are no greater than on the MS-2120
Only the box way geared spindle is listed
Tool magazine is an option

Best For

Compact heavy blocks milled on top and sides Shops short of floor length Crane-loaded parts up to 8,000 kg (17,637 lb)

Frequently Asked Questions

01 What are the travels of the Vision Wide MS-2127?

X 2,100 mm (82.7 in), Y 2,700 mm (106.3 in), and Z 800/1,020 mm (31.5/40.2 in)(Opt.). Y travel is longer than X travel on this model.

02 How does the MS-2127 compare with the MS-2120?

Same 2,000x1,800 mm (78.7x70.9 in) table and 8,000 kg (17,637 lb) load. The MS-2120 has 2,000 mm (78.7 in) of Y; the MS-2127 has 2,700 mm (106.3 in) and lists floor-standing tool changers.

03 What rapids does the MS-2127 list?

The rapid traverse row reads X/Y/Z : 24/20/15 m/min. The cutting feed range is 1-10,000 mm/min, the same on every MS model.

04 What spindle does the MS-2127 use?

The box way 2-step gear spindle, 6,000 rpm standard and 4,000 rpm optional, with 18.5/22 kW (24.8/29.5 hp). No linear way spindle rows are listed for this model.
