Vision Wide SF-3129
Image: visionwide-tech.com, Vision Wide
Key Specifications
Table Size
x axis travel
y axis travel
z axis travel box way
z axis travel linear way
max table load
How much does the Vision Wide SF-3129 cost?
Price estimate
We do not have a price for the Vision Wide SF-3129 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Read the Y travel row before ordering a Vision Wide SF-3129. The model number suggests a wider machine, but the maker's table prints 2,200 mm (86.6 in) of Y travel, the same figure it gives for the SF-3122. X travel is 3,100 mm (122.0 in) and the table is 3,300×2,100 mm (129.9×82.7 in) for 14,000 kg (30,864 lb).
Whether that is the true stroke of this model or a figure carried over from the SF-3122 table is something only Vision Wide can confirm, and the answer affects any plan to work beside the part with a head attachment.
What clearly separates the two machines is the tool changer. The SF-3122 has a vertical type tool change. The SF-3129 lists a floor-standing type vertical tool change with 32 tools, 40 optional, and an optional vertical-horizontal type with 32, 40 or 60 pcs.
Unlike the lighter floor-standing models, this one keeps the full set of spindle rows: the box way 2-step gear spindle at 6,000 rpm, and on the linear way head direct-driven spindles at 10,000 rpm and 12,000 rpm and a built-in spindle at 10,000 rpm, all three optional. Power is 18.5/22 kW (24.8/29.5 hp).
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 3,100 mm (122.0 in) |
| Y Axis Travel | 2,200 mm (86.6 in) |
| Z Axis Travel Box Way | 800 / 1,020 mm (31.5 / 40.2 in) (Opt.) |
| Z Axis Travel Linear Way | 800 / 1,000 mm (31.5 / 39.4 in) (Opt.) |
| Table Size | 3,300×2,100 mm (129.9×82.7 in) |
| Max Table Load | 14,000 kg (30,864 lb) |
| Spindle Power Cont 30 Min | 18.5/22 kW (24.8/29.5 hp) (22/26 kW (29.5/34.9 hp) Opt.) |
| Spindle Speed Box Way 2 Step Gear | 6,000/4,000 rpm(Opt.) |
| Spindle Speed Linear Way Direct Driven | 10,000 rpm(Opt.)/ 12,000 rpm(Opt.) |
| Spindle Speed Linear Way Built in | 10,000 rpm(Opt.) |
| Cutting Feed Rate | 1-10,000 mm/min |
| Rapid Traverse Xyz | XY：20 m/min / Z：15 m/min |
| Tool Capacity Floor Standing Vertical Tool Change | 32/40 pcs(Opt.) |
| Tool Capacity Floor Standing Vertical Horizontal Tool Change | 32 pcs(Opt.)/40 pcs(Opt.)/60 pcs(Opt.) |
Specifications sourced from visionwide-tech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 14,000 kg (30,864 lb) table load with a floor-standing tool changer
- Linear way head with 10,000 rpm and 12,000 rpm spindle options is listed
- Vertical-horizontal tool change with up to 60 pcs as an option
- 3,300×2,100 mm (129.9×82.7 in) table
Limitations
- Y travel is printed as 2,200 mm (86.6 in), no more than the SF-3122, and should be confirmed
- X and Y rapids are 20 m/min
- X travel is shorter than the table length
Best For
Frequently Asked Questions
01
Vision Wide's table prints 2,200 mm (86.6 in). That equals the SF-3122 and is less than the model number implies, so ask the maker to confirm the stroke in writing before relying on it.
02
In the specification tables the travels, table, load, spindle and rapids match. The SF-3122 lists a vertical type tool change with 32/40 pcs(Opt.); the SF-3129 lists floor-standing changers, including a vertical-horizontal type.
03
The 2-step gear spindle on the box way head runs 6,000 rpm, or 4,000 rpm as an option. On the linear way head the table lists direct-driven spindles at 10,000 rpm and 12,000 rpm and a built-in spindle at 10,000 rpm, each marked Opt.
04
14,000 kg (30,864 lb) on a 3,300×2,100 mm (129.9×82.7 in) table. The longer SF-4129 is rated for 16,000 kg (35,273 lb).
More from Vision Wide
Other Vertical Machining Centers (VMC)

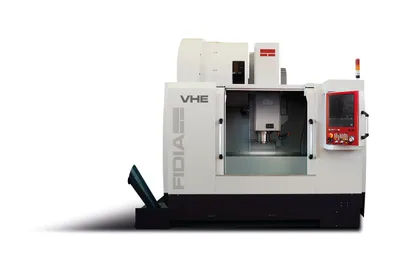

Fidia VHE 1687
