Vision Wide BM-10035 / 10042
Image: visionwide-tech.com, Vision Wide
Key Specifications
Table Size
x axis travel
y axis travel
z axis travel
w axis travel
max table load
How much does the Vision Wide BM-10035 / 10042 cost?
Price estimate
We do not have a price for the Vision Wide BM-10035 / 10042 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview

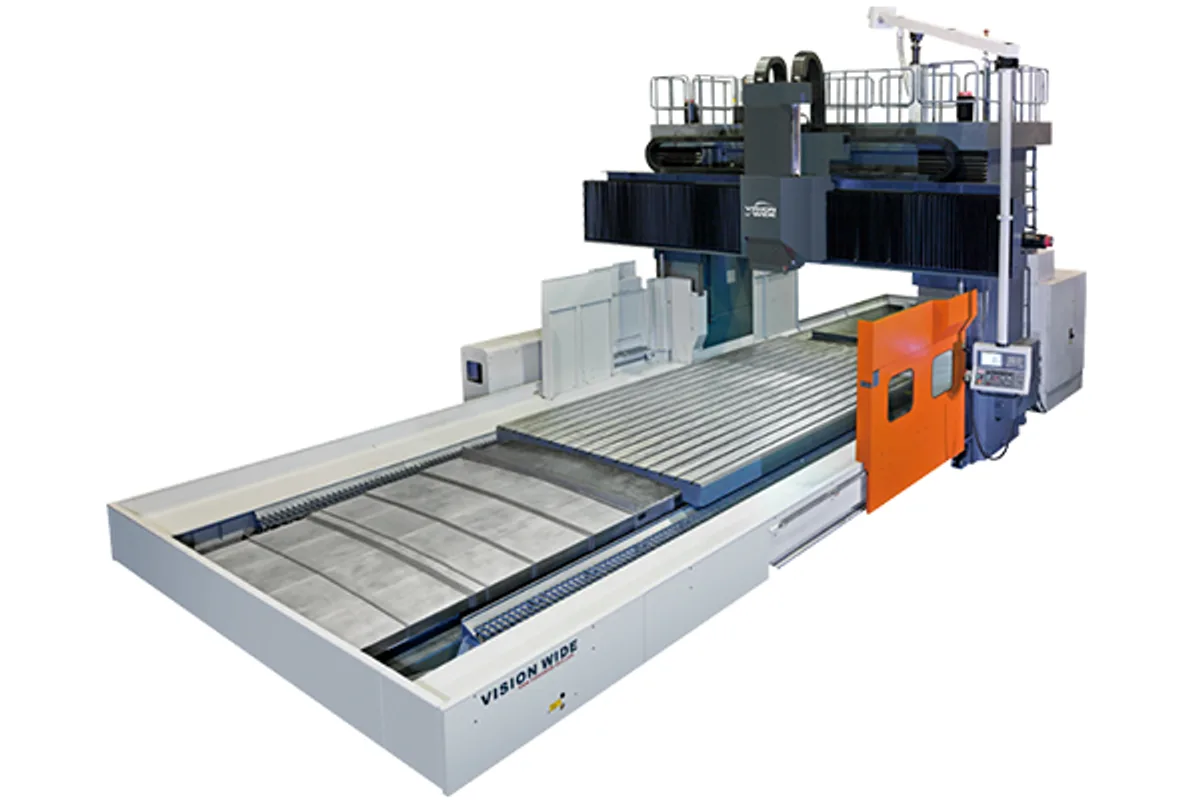

The largest BM is the Vision Wide BM-10035 / 10042. It has 10,100 mm (397.6 in) of X travel, 3,500 mm of Y, or 4,200 mm on the longer-Y version of the pair, and a 10,000×3,000 mm (393.7×118.1 in) table rated for 36,000 kg (79,365 lb). Above that, the cross rail moves on a W axis.
Put the figures together and the working volume is the largest of any moving-table machine in Vision Wide's tables for which a workpiece height is stated: ten metres long, three wide on the table, and up to 2,450mm high by the maker's figure for the series.
It will not be a quick machine, and the table says so. X rapids at 8 m/min, Y at 10 m/min, Z at 12 m/min and W at 2 m/min. Cutting feed is 1-7,000 mm/min on the three main axes and 1,000 mm/min on W.
What matters at this size is that the part is set once. The automatic head magazine, the AH five-face attachment and the automatic horizontal and vertical tool changer are there so that a 36-tonne part is not lifted and re-aligned between operations.
Standard power is 22/26 kW (29.5/34.9 hp). Chips are carried off by screw type conveyors on the table sides and a steel belt chip conveyor.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 10,100 mm (397.6 in) |
| Y Axis Travel | 3,500/ 4,200 mm (137.8/ 165.4 in) |
| Z Axis Travel | 1,000/ 1,200 mm (39.4/ 47.2 in)(Opt.)/1,400 mm (55.1 in)(Opt.) |
| W Axis Travel | 1,000/ 1,200 mm (39.4/ 47.2 in)(Opt.)/1,500 mm (59.1 in)(Opt.) |
| Table Size | 10,000×3,000 mm (393.7×118.1 in) |
| Max Table Load | 36,000 kg (79,365 lb) |
| Spindle Power Cont 30 Min | 22/26 kW (29.5/34.9 hp) (30/37 kW (40.2/49.6 hp) Opt.) |
| Spindle Speed Direct Driven | 8,000 rpm(Opt.)/ 10,000 rpm(Opt.) |
| Cutting Feed Rate | XYZ:1-7,000 mm/min W:1,000 mm/min |
| Rapid Traverse Xyzw | 8 / 10 / 12 / 2 m/min |
| Tool Capacity Floor Standing Vertical Tool Change | 40/60 pcs(Opt.)/90 pcs(Opt.) |
| Tool Capacity Floor Standing Vertical Horizontal Fixed | 40 pcs(Opt.)/60 pcs(Opt.)/90 pcs(Opt.) |
| Tool Capacity Floor Standing Vertical Horizontal Random | 40 pcs(Opt.)/60 pcs(Opt.)/90 pcs(Opt.) |
Specifications sourced from visionwide-tech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Largest BM envelope: 10,100 mm (397.6 in) of X, a 3,000 mm (118.1 in) wide table, W-axis cross rail
- 36,000 kg (79,365 lb) table load
- Automatic head magazine and horizontal and vertical tool changer
- Table-side screw conveyors and steel belt chip conveyor are standard
Limitations
- Rapids of 8 m/min in X and 2 m/min in W
- W cutting feed of 1,000 mm/min
- Standard power of 22/26 kW (29.5/34.9 hp) for a 36,000 kg class table
Best For
Frequently Asked Questions
01
The BM-10035 / 10042: 10,100 mm (397.6 in) of X travel, 3,500/ 4,200 mm (137.8/ 165.4 in) of Y, and a 10,000×3,000 mm (393.7×118.1 in) table for 36,000 kg (79,365 lb).
02
Vision Wide states a maximum height for workpiece and machining of 2,450mm and 2,400mm for the BM series. Z and W travel are each 1,000 mm as standard, with up to 1,400 mm and 1,500 mm optional.
03
8 / 10 / 12 / 2 m/min for X, Y, Z and W, so the cross rail is by far the slowest axis. Cutting feed is listed as XYZ:1-7,000 mm/min W:1,000 mm/min.
04
Both list a 10,000×3,000 mm (393.7×118.1 in) table for 36,000 kg (79,365 lb) and 10,100 mm (397.6 in) of X. The HF-10035 has a fixed rail with 920 mm of standard Z; the BM-10035 has a movable cross rail with a W axis.
