Vision Wide Vertical Machining Centers (VMC)

Vision Wide HF-6040 / HF-6047

Q: How much does the Vision Wide HF-6040 / HF-6047 cost?

The price estimate for the Vision Wide HF-6040 / HF-6047 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/vision-wide-hf-6040-hf-6047#price; the request is passed to Vision Wide or an authorised dealer.

Specs verified 2026-10-04 · visionwide-tech.com Updated 2026-10-04

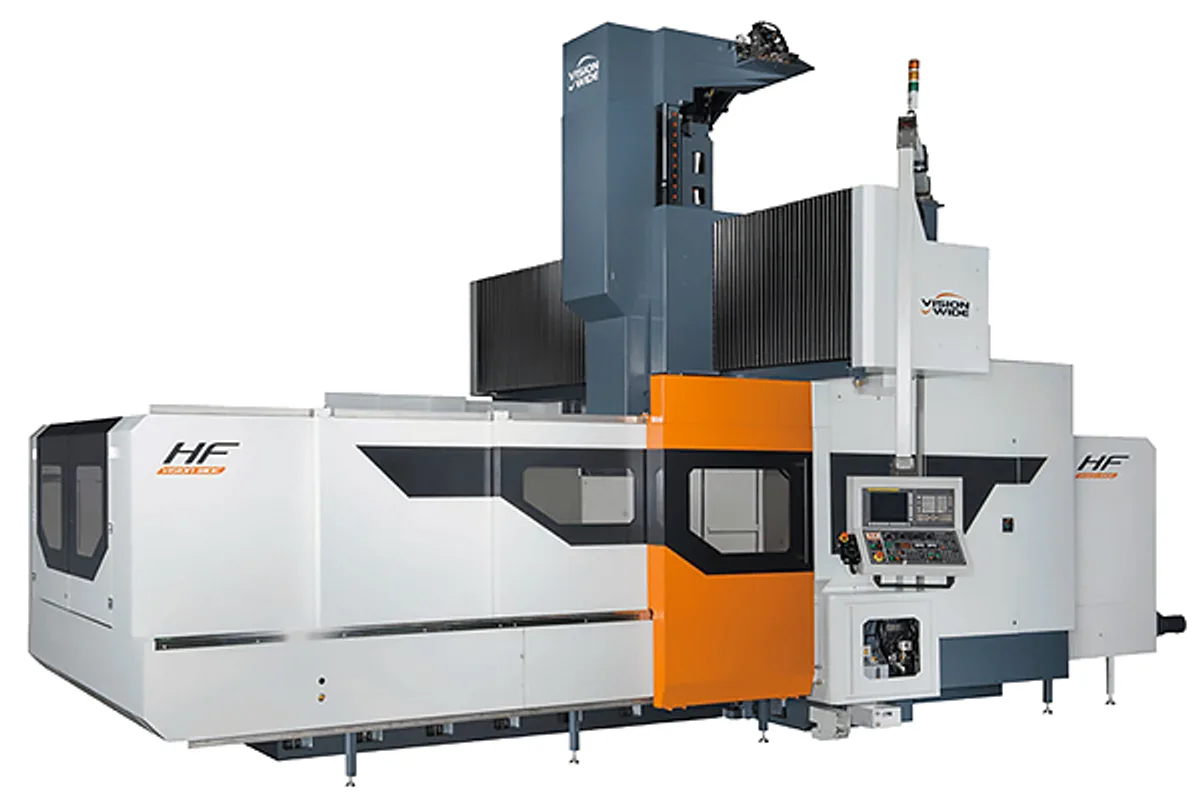

Image: visionwide-tech.com, Vision Wide

Key Specifications

Table Size

6,000×3,500 mm (236.2×137.8 in)

x axis travel

6,100 mm (240.2 in)

y axis travel

4,000/ 4,700 mm (157.5/ 185.0 in)

z axis travel box way single ballscrew

920 / 1,020 mm (36.2 / 40.2 in)(Opt.)

z axis travel linear way enclosed box ram dual ballscrews

1,000 mm (39.4 in)(Opt.) / 1,200 mm (47.2 in)(Opt.) / 1,400 mm (55.1 in)(Opt.)

max table load

28,000 kg (61,728 lb)

How much does the Vision Wide HF-6040 / HF-6047 cost?

Price estimate

Uncertain

We do not have a price for the Vision Wide HF-6040 / HF-6047 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

Coolant planning matters on the Vision Wide HF-6040 / HF-6047, a 6,100 mm (240.2 in) by 4,000 mm (157.5 in) or 4,700 mm (185.0 in) machine that spends much of its time with an attachment head on the spindle.

The option list has four coolant items. A spindle ring cutting coolant device is one, but it is marked for machines with no head attachment. A coolant through spindle system 20/70 bar is another, with the interface for it listed separately. Then there is a coolant through tool holder interface and an oil mist cooling device. What is standard is a cutting fluid cooling system, which controls the temperature of the fluid, and a spindle cooling system.

On a table of 6,000×3,500 mm (236.2×137.8 in), flood coolant from fixed nozzles will not reach a cut made several metres away on a side face. Through-tool delivery or mist, carried with the head, is what gets fluid to the edge. Confirm with the maker which of these work through each attachment head.

The table load is 28,000 kg (61,728 lb). X/Y rapid is 8 m/min, the motor is 22/26 kW (29.5/34.9 hp), and the standard spindle is the 4,000 rpm gear type on box ways.

Full Specifications

Parameter	Value
X Axis Travel	6,100 mm (240.2 in)
Y Axis Travel	4,000/ 4,700 mm (157.5/ 185.0 in)
Z Axis Travel Box Way Single Ballscrew	920 / 1,020 mm (36.2 / 40.2 in)(Opt.)
Z Axis Travel Linear Way Enclosed Box Ram Dual Ballscrews	1,000 mm (39.4 in)(Opt.) / 1,200 mm (47.2 in)(Opt.) / 1,400 mm (55.1 in)(Opt.)
Table Size	6,000×3,500 mm (236.2×137.8 in)
Max Table Load	28,000 kg (61,728 lb)
Spindle Power Cont 30 Min	22/26 kW (29.5/34.9 hp)(30/37 kW (40.2/49.6 hp) Opt.)
Spindle Speed Box Way 2 Step Gear	4,000 / 6,000 rpm(Opt.)
Spindle Speed Linear Way Enclosed Box Ram 2 Step Gear	4,000 / 6,000 rpm(Opt.)
Spindle Speed Linear Way Enclosed Box Ram Direct Driven	10,000 rpm(Opt.)
Cutting Feed Rate	1-7,000 mm/min
Rapid Traverse Xy	8 m/min
Rapid Traverse Z Box Way or Linear Way	15 m/min
Rapid Traverse Z Enclosed Box Ram	12 m/min
Tool Capacity Vertical Tool Change	32 / 40 pcs (Opt.) / 60 pcs (Opt.)
Tool Capacity Floor Standing Vertical Tool Change	32 pcs(Opt.) / 40 pcs (Opt.) / 60 pcs (Opt.)
Tool Capacity Floor Standing Vertical Horizontal Tool Change	32 pcs(Opt.) / 40 pcs (Opt.) / 60 pcs (Opt.)

Specifications sourced from visionwide-tech.com — verified 2026-10-04

Strengths & Limitations

Strengths

6,000×3,500 mm (236.2×137.8 in) table for 28,000 kg (61,728 lb)
Coolant through spindle system 20/70 bar and oil mist cooling available
Y travel of up to 4,700 mm (185.0 in) on the HF-6047
Cutting fluid cooling system is standard

Limitations

Spindle ring coolant is only for machines with no head attachment
All through-tool coolant items are options
X/Y rapid traverse of 8 m/min

Best For

Side-face drilling and milling far from the table edge Wide parts up to 28,000 kg (61,728 lb) Long cycles in steel where coolant delivery limits tool life

Frequently Asked Questions

01 What coolant systems are available on the Vision Wide HF-6040?

Standard: cutting fluid cooling system. Optional: spindle ring cutting coolant device (for no head attachment), coolant through spindle system 20/70 bar, the interface of coolant through spindle, coolant through tool holder interface, and oil mist cooling device.

02 What are the HF-6040 / HF-6047 travels?

X is 6,100 mm (240.2 in). Y is 4,000/ 4,700 mm (157.5/ 185.0 in) for the HF-6040 and HF-6047. Z is 920 mm on the standard head, with 1,020 mm, 1,000 mm, 1,200 mm and 1,400 mm listed as options by head type.

03 How much load does the HF-6040 take?

28,000 kg (61,728 lb) on a 6,000×3,500 mm (236.2×137.8 in) table, the same rating as the HF-6035 with its 6,000×3,000 mm (236.2×118.1 in) table.

04 What is the rapid traverse of the HF-6040 / HF-6047?

8 m/min in X/Y, 15 m/min in Z with the box way or linear way head, and 12 m/min in Z with the enclosed box ram. The cutting feed range is 1-7,000 mm/min.
