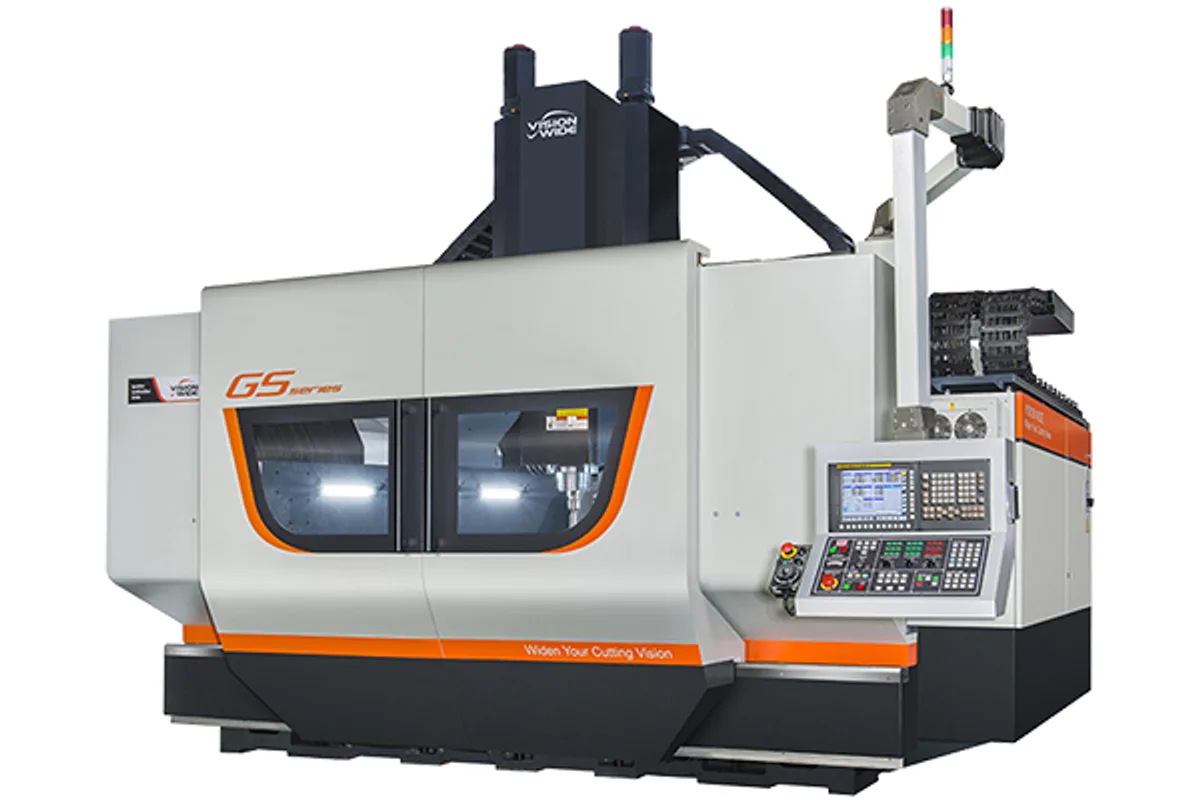

Vision Wide GS-2020
Image: visionwide-tech.com, Vision Wide
Key Specifications
Max Spindle
Table Size
x axis travel
y axis travel
z axis travel
max table load
How much does the Vision Wide GS-2020 cost?
Price estimate
We do not have a price for the Vision Wide GS-2020 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
A square two-metre table defines the Vision Wide GS-2020: 2,000 x 2,000 mm (78.7 x 78.7 in), with 2,000 mm (78.7 in) of travel in both X and Y.
The load rating is where a gantry differs from a moving-table machine. Vision Wide gives 3,000 kg/m2 for the GS, a pressure on the table surface, not a total. Since the table is part of the bed casting and never moves, a heavier part does not slow the axes or change how the servo drives behave. A dense steel mold and a light aluminum plate are cut with the same axis dynamics.
Vision Wide describes a pyramid type weight distribution through the spindle, ram, cross beam and bed, with the mass low and wide. It also points to a low table height, a close operating zone and a wide door, which matter when a two-metre part has to be loaded by crane and set up by hand.
The spindle runs to 15,000 rpm on 15 / 18.5 kW (20.1 / 24.8 hp). Rapids are 24 / 24 / 24 m/min. For a longer part the GS-2520 has 2,500 mm (98.4 in) of X travel with the same cross travel.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 2,000 mm (78.7 in) |
| Y Axis Travel | 2,000 mm (78.7 in) |
| Z Axis Travel | 800 / 1,000 mm (31.5 / 39.4 in) (Opt.) |
| Table Size | 2,000 x 2,000 mm (78.7 x 78.7 in) |
| Max Table Load | 3,000 kg/m2 |
| Spindle Power Cont 30 Min | L：15 / 18.5 kW (20.1 / 24.8 hp) |
| Max Spindle Speed | 15,000 rpm |
| Cutting Feed Rate | 1-24,000 mm/min |
| Rapid Traverse Xyz | 24 / 24 / 24 m/min; 30 / 30 / 24 m/min (Opt.) |
Specifications sourced from visionwide-tech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Square 2,000 x 2,000 mm (78.7 x 78.7 in) table with matching travels
- Table load of 3,000 kg/m2 on a fixed table
- Low table height and wide door for loading, per the maker
- 24 / 24 / 24 m/min rapid traverse
Limitations
- No total table load is published, only the load per square metre
- Z travel is 800 mm unless the 1,000 mm option is ordered
- Standard spindle is 15,000 rpm with a modest 15 / 18.5 kW (20.1 / 24.8 hp)
Best For
Frequently Asked Questions
01
Vision Wide rates it at 3,000 kg/m2, a figure per square metre of the 2,000 x 2,000 mm (78.7 x 78.7 in) table. No total is given, so check concentrated loads with the maker.
02
2,000 mm (78.7 in) in X, 2,000 mm (78.7 in) in Y, and 800 / 1,000 mm (31.5 / 39.4 in) (Opt.) in Z, where the longer Z stroke is optional.
03
The GS is a gantry type with the columns, bed and table in one piece casting, so the table does not move. The moving axes therefore carry the same mass whatever the part weighs.
04
A direct-driven spindle at 15,000rpm is standard, with 15 / 18.5 kW (20.1 / 24.8 hp). Built-in and other direct driven spindles are optional.
