Vision Wide SV-1470

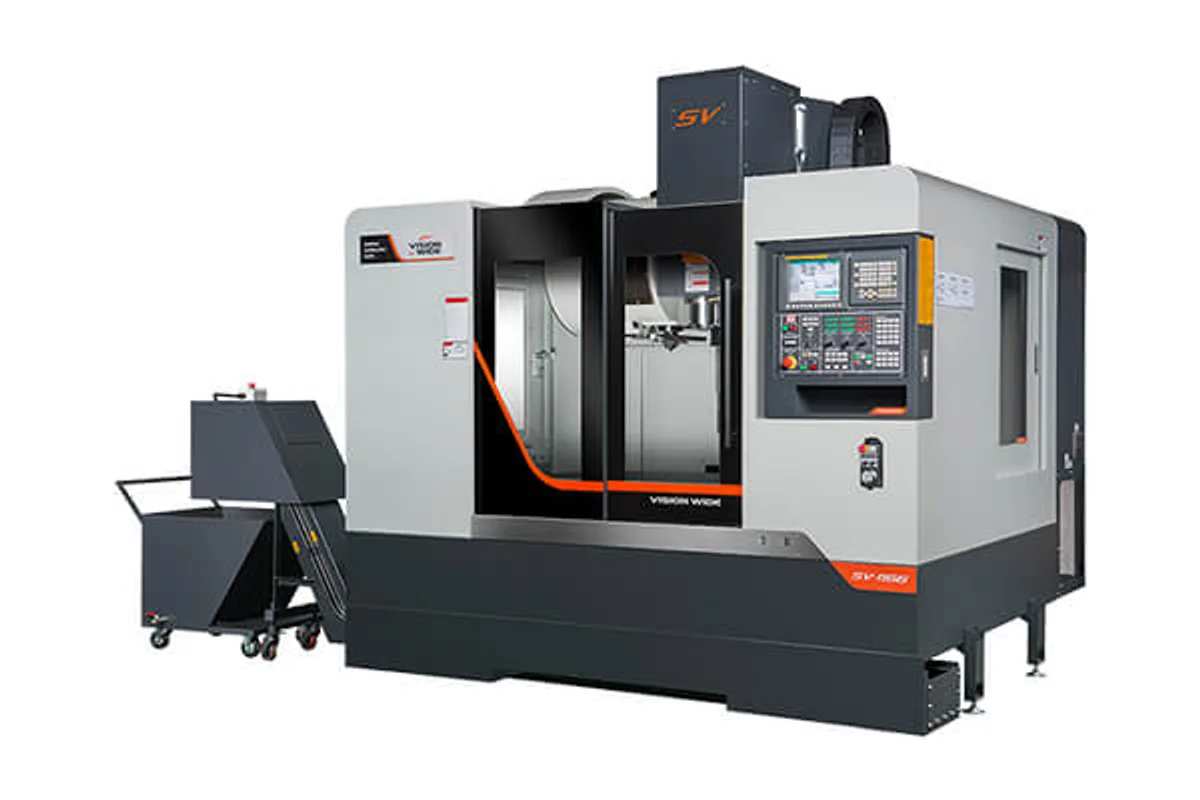

Image: visionwide-tech.com, Vision Wide
Key Specifications
Max Spindle
Tool Capacity
Table Size
x axis travel
y axis travel
z axis travel
How much does the Vision Wide SV-1470 cost?
Price estimate
We do not have a price for the Vision Wide SV-1470 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
For long parts that are not especially deep, the Vision Wide SV-1470 offers 1,400 mm (55.1 in) of X travel on the 700 mm (27.6 in) Y and 650 mm (25.6 in) Z of the SV-1270. Its table is 1,550×650 mm (61.0×25.6 in).
Table load rises to 1,500 kg (3,307 lb), the highest figure in the SV series and the same as the SV-1480 and SV-1680 above it. Rapids go the other way. The SV-1470 lists 30 / 30 / 24 m/min, where the SV-1270 lists 36 / 36 / 30 m/min, which is the usual trade when a longer and heavier table has to be moved.
Spindle choices match the SV-1270: 10,000 rpm standard, 12,000 / 15,000 rpm above that, and a power row of 7.5 / 11 kW (10.1 / 14.8 hp) with 11 / 15 kW (14.8 / 20.1 hp) printed in brackets. A shop that expects to load the table near its limit will be cutting large steel blocks, and for that work the bracketed rating is the one to ask about.
Where does it sit against the SV-1480? The SV-1480 has the same X travel but 800 mm (31.5 in) of Y, 700 mm (27.6 in) of Z and a base spindle rating of 11 / 15 kW (14.8 / 20.1 hp). The SV-1470 is the narrower machine for the same length of part.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 1,400 mm (55.1 in) |
| Y Axis Travel | 700 mm (27.6 in) |
| Z Axis Travel | 650 mm (25.6 in) |
| Table Size | 1,550×650 mm (61.0×25.6 in) |
| Max Table Load | 1,500 kg (3,307 lb) |
| Max Spindle Speed | 10,000 rpm (STD); 12,000 / 15,000 rpm |
| Spindle Power Cont 30 Min | 7.5 / 11 kW (10.1 / 14.8 hp) (11 / 15 kW (14.8 / 20.1 hp)) |
| Cutting Feed Rate | 1-10 m/min |
| Rapid Traverse Xyz | 30 / 30 / 24 m/min |
| Tool Capacity | 24 / 32 pcs |
Specifications sourced from visionwide-tech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 1,400 mm (55.1 in) of X travel with a 1,550×650 mm (61.0×25.6 in) table
- 1,500 kg (3,307 lb) table load, the highest rating in the SV series
- Same 700 mm (27.6 in) Y and 650 mm (25.6 in) Z as the SV-1270
- Caterpillar type chip conveyor and water tank can be ordered for heavy chip loads
Limitations
- Rapids drop to 30 / 30 / 24 m/min from the 36 / 36 / 30 m/min of the SV-1270
- Base spindle rating is still 7.5 / 11 kW (10.1 / 14.8 hp) on a table that takes 1,500 kg (3,307 lb)
- Y travel is 700 mm (27.6 in); the SV-1480 gives 800 mm (31.5 in) on the same X
- Magazine sizes are 24 / 32 pcs only
Best For
Frequently Asked Questions
01
The table is 1,550×650 mm (61.0×25.6 in) and the maximum table load is 1,500 kg (3,307 lb). X travel is 1,400 mm (55.1 in), so the table is longer than the stroke.
02
Y and Z travel are identical at 700 mm (27.6 in) and 650 mm (25.6 in). The SV-1470 has 1,400 mm (55.1 in) of X and a 1,500 kg (3,307 lb) table with 30 / 30 / 24 m/min rapids. The SV-1270 has 1,200 mm (47.2 in) of X, a 1,200 kg (2,646 lb) table and 36 / 36 / 30 m/min rapids.
03
Rapid traverse is 30 / 30 / 24 m/min on X, Y and Z. The cutting feed range is 1-10 m/min. All three axes run on roller type linear guideways with direct-driven ball-screws.
04
The optional accessory list for the series includes a caterpillar type chip conveyor with water tank, as well as a rotary table and auto workpiece coordinate measurement. A spindle cooling system is on the standard list.
