Vision Wide Vertical Machining Centers (VMC)

Vision Wide SE-1612

Q: How much does the Vision Wide SE-1612 cost?

The price estimate for the Vision Wide SE-1612 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/vision-wide-se-1612#price; the request is passed to Vision Wide or an authorised dealer.

Specs verified 2026-10-04 · visionwide-tech.com Updated 2026-10-04

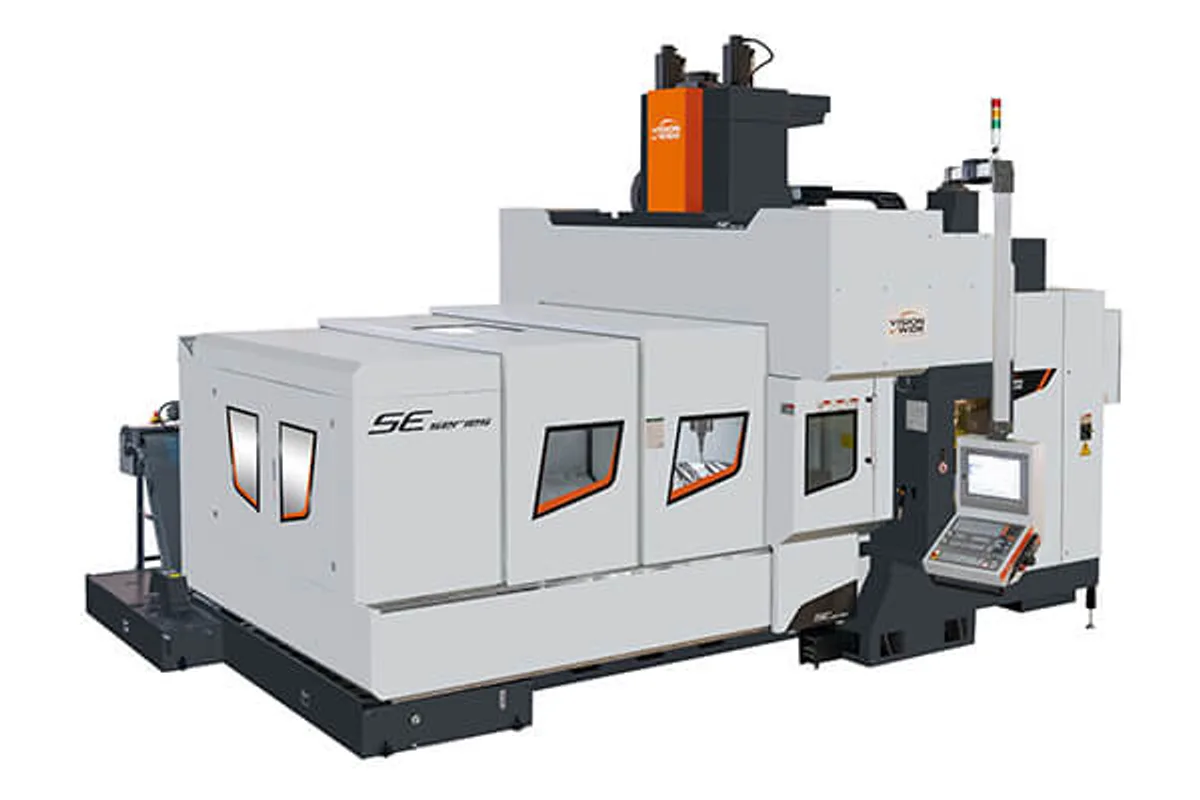

Image: visionwide-tech.com, Vision Wide

Key Specifications

Max Spindle

15,000 rpm

Tool Capacity

24 pcs (20/32/40 pcs Opt.)

Table Size

1,800x1,100 mm (70.9x43.3 in)

x axis travel

1,600 mm (63.0 in)

y axis travel

1,200 mm (47.2 in)

z axis travel

800/1,000 mm (31.5/39.4 in) (Opt.)

How much does the Vision Wide SE-1612 cost?

Price estimate

Uncertain

We do not have a price for the Vision Wide SE-1612 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Vision Wide SE-1612 is the smallest of the SE high-speed double-column machining centers, a portal machine with 1,600 mm (63.0 in) of X travel, 1,200 mm (47.2 in) of Y and a 15,000 rpm spindle as its standard build.

Speed is the point of the series. Vision Wide says the SE was released in 2017 for mold processing, aluminum alloy machining and mass removal machining, and the standard spindle is a direct driven 15,000 rpm unit with a BBT-40 taper. Cutting feed runs from 1-24,000 mm/min. Rapid traverse is 24 m/min, with 30 m/min offered as an option.

For a machine of this footprint the table is strong. It measures 1,800x1,100 mm (70.9x43.3 in) and carries 8,000 kg (17,637 lb), so a steel mold base that fills it is within the rating. The table is longer than the X travel, which leaves clamping room at the ends.

A 40-taper spindle on 15/ 18.5 kW (20.1/ 24.8 hp) is a finishing and light-roughing tool, though. Buyers who want to hog steel should look at the #50 spindle options before ordering, and those who need more room across the table should compare the SE-1618, which has 1,800 mm (70.9 in) of Y on the same X stroke.

Full Specifications

Parameter	Value
X Axis Travel	1,600 mm (63.0 in)
Y Axis Travel	1,200 mm (47.2 in)
Z Axis Travel	800/1,000 mm (31.5/39.4 in) (Opt.)
Table Size	1,800x1,100 mm (70.9x43.3 in)
Max Table Load	8,000 kg (17,637 lb)
Spindle Power Cont 30 Min	15/ 18.5 kW (20.1/ 24.8 hp)
Max Spindle Speed	15,000 rpm
Cutting Feed Rate	1-24,000 mm/min
Rapid Traverse Xyz	24/30 m/min (Opt.)
Tool Capacity	24 pcs (20/32/40 pcs Opt.)

Specifications sourced from visionwide-tech.com — verified 2026-10-04

Strengths & Limitations

Strengths

15,000 rpm direct driven spindle (BBT-40) is standard
Cutting feed up to 24,000 mm/min
8,000 kg (17,637 lb) table load on a 1,800x1,100 mm (70.9x43.3 in) table
XYZ axis linear scale feedback is on the standard accessory list

Limitations

Smallest envelope of the SE series: 1,600 mm (63.0 in) by 1,200 mm (47.2 in)
Standard spindle power is 15/ 18.5 kW (20.1/ 24.8 hp) on a 40-taper
The 30 m/min rapid traverse is an option; 24 m/min is standard

Best For

Small and medium molds needing high spindle speed Aluminum alloy plates and structural parts Steel mold bases up to 8,000 kg (17,637 lb), finished at speed

Frequently Asked Questions

01 What spindle is standard on the Vision Wide SE-1612?

A direct driven spindle at 15,000 rpm with a BBT-40 taper, according to the standard accessory list. The specification table gives spindle power as 15/ 18.5 kW (20.1/ 24.8 hp), continuous and short-time.

02 How big is the SE-1612 work area?

X travel is 1,600 mm (63.0 in) and Y travel is 1,200 mm (47.2 in). Z travel is 800 mm, or 1,000 mm as an option. The table measures 1,800x1,100 mm (70.9x43.3 in).

03 How fast are the SE-1612 feeds?

Cutting feed is listed as 1-24,000 mm/min. Rapid traverse is given as 24/30 m/min (Opt.), which means 24 m/min on the standard machine and 30 m/min when the option is ordered.

04 Which controls are available for the SE-1612?

The Fanuc 0iMF PLUS controller is standard. The option list names the FANUC 31iB Controller and the HEIDENHAIN TNC 620/640 Controller, and some spindle options are tied to one control or the other.
