Fidia BSE 2200

Q: How much does the Fidia BSE 2200 cost?

The price estimate for the Fidia BSE 2200 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/fidia-bse-2200#price; the request is passed to Fidia or an authorised dealer.

Specs verified 2026-10-05 · fidia.it Updated 2026-10-05

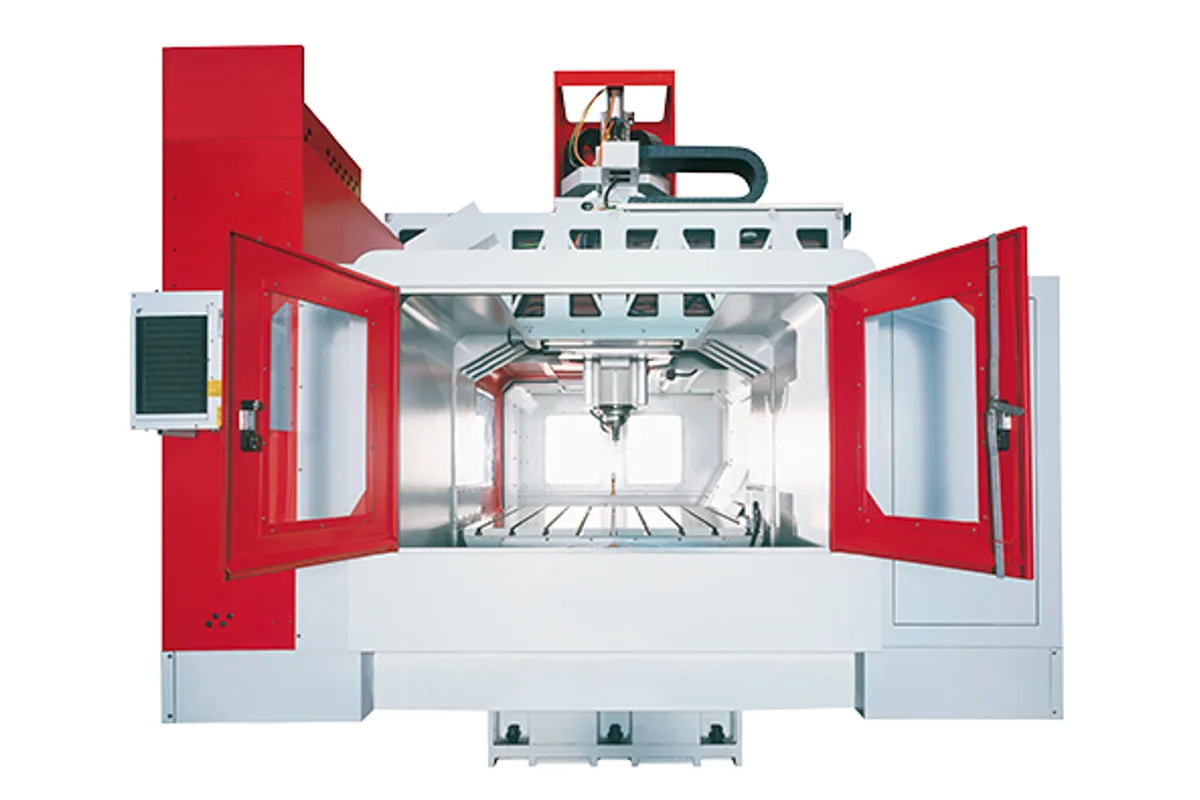

Fidia BSE 2200 bridge-type machining centre with doors open

Image: fidia.it, Fidia

Key Specifications

Max Spindle

18,000 rpm (24,000 rpm optional)

Spindle Taper

HSK 63A

Tool Capacity

24 positions (32 / 40 / 60 optional)

Table Size

2,100 x 1,600 mm (82.7 x 63.0 in)

Accuracy

VDI 3441: P = 0.012 mm

Repeatability

VDI 3441: PS = 0.008 mm

How much does the Fidia BSE 2200 cost?

Price estimate

Uncertain

We do not have a price for the Fidia BSE 2200 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Fidia BSE 2200 is the largest of Fidia's BSE bridge-type high-speed machining centres. X travel is 2,200 mm (86.6 in), Y is 1,750 mm (68.9 in) and Z is 750 mm (29.5 in); the 2,100 x 1,600 mm (82.7 x 63.0 in) table is rated for 6,000 kg (13,228 lb).

Y is where it departs from its smaller sibling. The BSE 1700 has 1,000 mm (39.4 in) of Y under the same bridge; here the full 1,750 mm (68.9 in) between the columns is usable travel, and the table load doubles as well. The price of moving a table of this size is in the X axis, which feeds at 24 m/min against 30 m/min for Y and Z.

Thermal control gets specific attention on this size. The screw nuts are air-oil cooled, the spindle is water cooled, and the ballscrew mounting brackets are cast into the bridge base and saddle. The ballscrews are 63 / 55 / 50 mm in diameter. Stated accuracy to VDI 3441 is P = 0.012 mm and PS = 0.008 mm, with linear scales in the basic machine.

The spindle is the 18,000 rpm HSK 63A motor spindle with 26/32 kW, 124/154 Nm, with 24,000 rpm optional. Tools are limited to 80 mm / 250 mm and 7 kg in a 24-position changer, with 32 / 40 / 60 optional. For heavier cutters and higher torque on a bridge machine, the BHE is the alternative, with 956 Nm.

Full Specifications

Parameter	Value
Table Size	2,100 x 1,600 mm (82.7 x 63.0 in)
T-Slots	18 mm x 9 x 180 mm (size x No. x pitch)
Max Table Load	6,000 kg (13,228 lb)
X Axis Travel	2,200 mm (86.6 in)
Y Axis Travel	1,750 mm (68.9 in)
Z Axis Travel	750 mm (29.5 in)
Axis Feed Rate Xyz	24 / 30 / 30 m/min
Distance Between Columns	1,750 mm (68.9 in)
Distance Spindle Nose to Table	152 ~ 902 mm
Floor to Table Top	895 mm (35.2 in)
Spindle Motor	26/32 kW, 124/154 Nm
Spindle Taper	HSK 63A
Max Spindle Speed	18,000 rpm (24,000 rpm optional)
Tool Capacity	24 positions (32 / 40 / 60 optional)
Tool Change Time	3/10 sec (tool to tool)
Max Tool Size	80 mm / 250 mm (diameter/length)
Max Tool Weight	7 kg
Ballscrews	63 / 55 / 50 mm diameter, 16 / 16 / 12 mm pitch (X/Y/Z)
Ballscrew Precision Class	C3 - mm/300 mm : 0.008
Linear Roller Guide Width	55 / 55 / 55 mm (X/Y/Z)
Positioning Accuracy	VDI 3441: P = 0.012 mm
Repeatability	VDI 3441: PS = 0.008 mm
Coolant Tank Capacity	425 liters
Power Requirement	20 kVA

Specifications sourced from fidia.it — verified 2026-10-05

Strengths & Limitations

Strengths

1,750 mm (68.9 in) of Y travel, the full distance between the columns
Table of 2,100 x 1,600 mm (82.7 x 63.0 in) for 6,000 kg (13,228 lb)
Air-oil cooled screw nuts and a water cooled spindle
Ballscrew mounting brackets integrated in the bridge base and saddle castings
18,000 rpm HSK 63A spindle, with 24,000 rpm optional

Limitations

X feeds at 24 m/min, slower than the 30 / 30 / 30 m/min of the BSE 1700
Z travel of 750 mm (29.5 in) is the same as on the smaller size
Tools are limited to 80 mm / 250 mm and 7 kg on HSK 63A
Spindle torque of 124/154 Nm suits high-speed cutting, not heavy roughing

Best For

Large moulds and dies up to 6,000 kg (13,228 lb) in high-speed milling Wide parts that need 1,750 mm (68.9 in) of Y travel Long finishing cycles where cooled screws and spindle help hold size

Frequently Asked Questions

01 What is the capacity of the Fidia BSE 2200?

Travels are 2,200 mm (86.6 in) in X, 1,750 mm (68.9 in) in Y and 750 mm (29.5 in) in Z. The table is 2,100 x 1,600 mm (82.7 x 63.0 in) and the maximum loading is 6,000 kg (13,228 lb).

02 How does the BSE 2200 differ from the BSE 1700?

It has more X and much more Y: the BSE 1700 lists 1,750 mm (68.9 in) of X and 1,000 mm (39.4 in) of Y with a 3,000 kg (6,614 lb) table load. Z travel, the distance between columns and the spindle are the same on both.

03 How is heat controlled on the BSE 2200?

Fidia states that the screw nuts are air-oil cooled to draw away heat from high speed movements and that the spindle is water cooled to control thermal effects. The ballscrews are precision class C3 and linear scales are in the basic machine.

04 What spindle does the BSE 2200 use?

A built-in motor spindle at 18,000 rpm on an HSK 63A cone with 26/32 kW, 124/154 Nm. A 24,000 rpm HSK 63A unit with 21/27 kW and 85/116 Nm is listed among the main options, as is coolant through the spindle.
