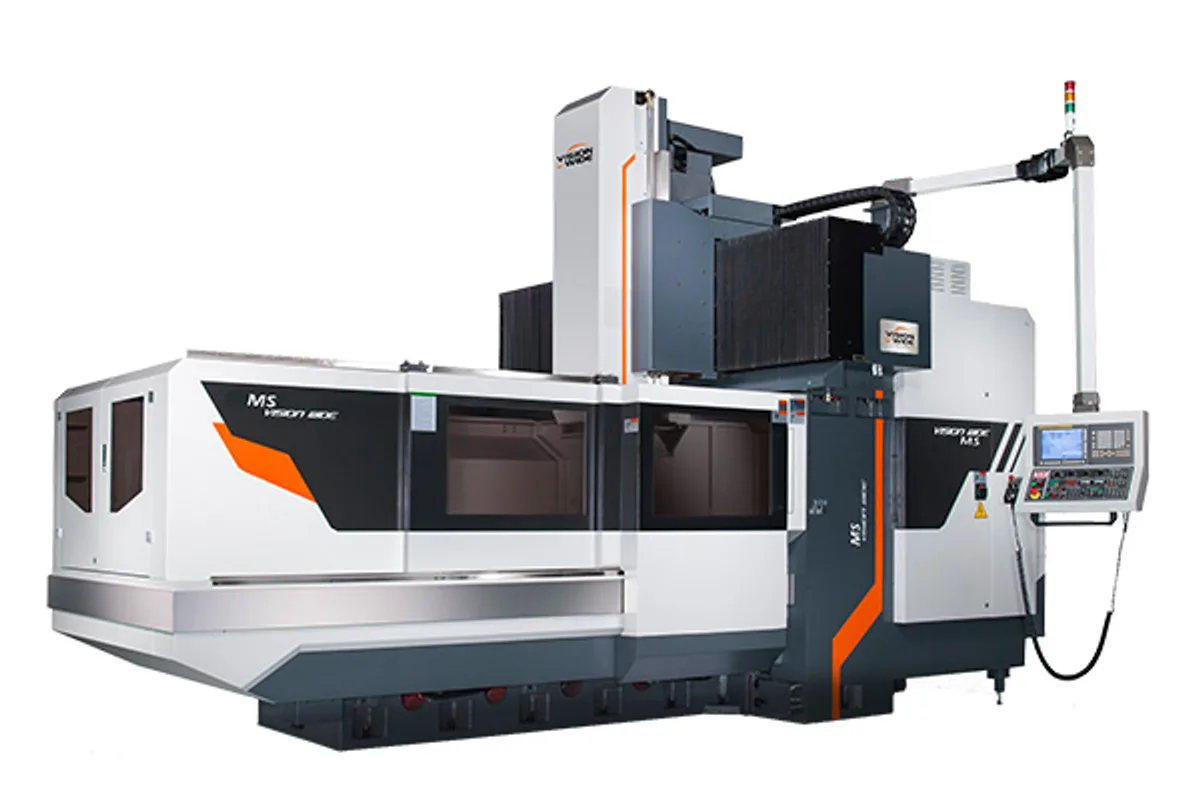

Vision Wide MS-3127
Image: visionwide-tech.com, Vision Wide
Key Specifications
Table Size
x axis travel
y axis travel
z axis travel box way
max table load
spindle power cont 30 min
How much does the Vision Wide MS-3127 cost?
Price estimate
We do not have a price for the Vision Wide MS-3127 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Vision Wide MS-3127 gives a 3,000x1,800 mm (118.1x70.9 in) table 2,700 mm (106.3 in) of cross travel. X travel is 3,100 mm (122.0 in) and the table load 10,000 kg (22,046 lb).
Three MS models share this table length and load, and they form a simple ladder. The MS-3120 has 2,000 mm (78.7 in) of Y and the same table; its table lists a vertical type tool change and the linear way spindle options. The MS-3123 has 2,300 mm (90.6 in) of Y over a narrower 3,000x1,500 mm (118.1x59.1 in) table. This model combines the wider table with the longest Y.
So the MS-3127 is the pick when the part is both wide and in need of side access. A gearbox housing or a machine column that fills the table can have its top milled, then its long sides, without being moved.
Its table shows only the box way head. The spindle is a 2-step gear type, 6,000 rpm as built and 4,000 rpm as the option, on an 18.5/22 kW (24.8/29.5 hp) motor. Rapid traverse is X/Y/Z : 24/20/15 m/min, and the Z-axis is counterbalanced by twin hydraulic cylinders with a nitrogen accumulator.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 3,100 mm (122.0 in) |
| Y Axis Travel | 2,700 mm (106.3 in) |
| Z Axis Travel Box Way | 800/1,020 mm (31.5/40.2 in)(Opt.) |
| Table Size | 3,000x1,800 mm (118.1x70.9 in) |
| Max Table Load | 10,000 kg (22,046 lb) |
| Spindle Power Cont 30 Min | 18.5/22 kW (24.8/29.5 hp) (22/26 kW (29.5/34.9 hp) Opt.) |
| Spindle Speed Box Way 2 Step Gear | 6,000/4,000 rpm(Opt.) |
| Cutting Feed Rate | 1-10,000 mm/min |
| Rapid Traverse Xyz | X/Y/Z : 24/20/15 m/min |
| Tool Capacity Floor Standing Vertical Tool Change | 32/40 pcs(Opt.) |
| Tool Capacity Floor Standing Vertical Horizontal Tool Change | 32 pcs(Opt.)/40 pcs(Opt.)/60 pcs(Opt.) |
Specifications sourced from visionwide-tech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 3,000x1,800 mm (118.1x70.9 in) table with 2,700 mm (106.3 in) of Y travel
- 10,000 kg (22,046 lb) table load
- Counterbalanced Z axis with twin hydraulic cylinders
- Geared spindle at 6,000 rpm, or 4,000 rpm optional
Limitations
- Linear way spindle options are not in this model's table, unlike the MS-3120
- Y rapid of 20 m/min, slower than the X axis
- Standard Z travel of 800 mm
Best For
Frequently Asked Questions
01
All have 3,100 mm (122.0 in) of X and carry 10,000 kg (22,046 lb). The MS-3120 has 2,000 mm (78.7 in) of Y, the MS-3123 has 2,300 mm (90.6 in) and the MS-3127 has 2,700 mm (106.3 in).
02
3,000x1,800 mm (118.1x70.9 in), rated for 10,000 kg (22,046 lb). Y travel of 2,700 mm (106.3 in) extends well past the table width.
03
By twin hydraulic cylinders plus a pressured nitrogen accumulator. The maker says the Z-axis can reach 0.5G acceleration and hold position at power failure.
04
Rapid traverse is X/Y/Z : 24/20/15 m/min and cutting feed is 1-10,000 mm/min. Z travel is 800 mm, or 1,020 mm with the option.
