Mazak VCN-430A
Key Specifications
X Travel
Y Travel
Z Travel
Max Spindle
Spindle Taper
Tool Capacity
Overview
The Mazak VCN-430A is a compact production vertical machining center in the VCN (Vertical Center Nexus) series, designed for high-throughput manufacturing of smaller parts. The 430A sits at the entry point of the VCN lineup, offering the build quality, spindle performance, and control sophistication of the production-grade VCN platform in a smaller-footprint package.
Axis travels measure 762 x 430 x 460 mm (30.0 x 16.9 x 18.1 in) with a 12,000 RPM CAT No. 40 spindle delivering 15 kW (20 hp). The spindle is built-in motor design for reduced vibration and better surface finish compared to belt-driven alternatives. Through-spindle coolant at 20 bar standard supports production drilling and tapping. The table measures 900 x 430 mm (35.4 x 16.9 in) with a maximum load of 400 kg (882 lb).
The 30-tool arm-type ATC provides 1.3-second tool-to-tool change time, keeping cycle times competitive in production environments. Rapid traverse of 42 m/min on all axes via linear roller guides ensures fast positioning. The roller guide construction with ball screw core cooling maintains accuracy through extended production runs. At approximately 5,000 kg (11,023 lb), the machine provides solid mass for vibration damping.
The MAZATROL SmoothG CNC handles both conversational programming and standard G-code with 3D simulation, tool life management, and automatic tool offset compensation. The SmoothG is a significant step up from the SmoothEz on entry-level machines, offering more programming sophistication and production management features.
New VCN-430A machines price between $115,000 and $165,000 depending on options. The machine competes with the Haas VF-2, Okuma GENOS M460-V, and DMG Mori CMX 600 V in the compact production VMC segment.
Full Specifications
| Parameter | Value |
|---|---|
| X-Axis Travel | 762 mm (30.0 in) |
| Y-Axis Travel | 430 mm (16.9 in) |
| Z-Axis Travel | 460 mm (18.1 in) |
| Max Spindle Speed | 12,000 RPM (15,000 RPM optional) |
| Spindle Taper | CAT No. 40 |
| Spindle Motor Power | 15 kW (20 hp) |
| Spindle Type | Built-in motor |
| Tool Capacity | 30 (arm-type ATC); 48 optional |
| Tool Change Time | 1.3 seconds (tool-to-tool) |
| Table Size | 900 x 430 mm (35.4 x 16.9 in) |
| Max Table Load | 400 kg (882 lb) |
| Rapid Traverse Rate | 42 m/min (1,654 ipm) |
| Through Spindle Coolant | 20 bar standard |
| CNC Control | MAZATROL SmoothG CNC |
| Guide Type | Linear roller guides (all axes) |
| Ball Screw Cooling | Core cooling |
| Machine Weight | 5,000 kg (11,023 lb) approx. |
| Series Name | Pallet size |
| Simultaneous 5 Axis Controlintegrex I Neo | 6" / 8" |
| 8 To 12 | Φ26.38" |
| Simultaneous 5 Axis Controlintegrex I H | 6" / 8" |
| Simultaneous 5 Axis Controlintegrex I 150 | 6″ |
| Simultaneous 4 Axis Controlentry Modelintegrex J | 8" to 12" |
| Simultaneous 4 Axis Controlentry Modelenvironmentally Friendlyintegrex J 200 Neo | 8" |
| Simultaneous 5 Axis Controlintegrex I 500 | 10″ |
| Simultaneous 5 Axis Controlfor Long And Large Diameter Workpiecesintegrex E H | 15" to 32" |
| Verticalsimultaneous 5 Axis Controlfor Large Workpiecesintegrex I V | CAT No.40 / CAT No.50 |
| Double Columnsimultaneous 5 Axis Controlfor Large Workpieceintegrex E V | CAT No.50 |
| Integration Of Gear Machining And Measurementintegrex Ag | 8" to 12" |
| 315 To 5512 | Φ41.34" to Φ90.55" |
| Environmentally Friendlyvariaxis I Neo | Φ27.56" × width 19.69" |
| 315 Width 248 | BIG-PLUS No.50 |
| Best Selling Machinesvariaxis I | Φ19.69" × width 15.75" to Φ23.62" × width 19.69" |
| 4134 Width 315 | BIG-PLUS No.50 / CAT No.50 |
| Compact Entry Modelautomation Availablevariaxis C | Φ23.62" × width 19.69" |
| Compact Entry Modelvariaxis J | Φ19.69" × width 15.75" |
| Simultaneous 5 Axis Controlvc Ez X | 37.4" × 14.17" to 49.21" × 19.37" |
| High Mix Low Volume Productionautomation Availablevariaxis I 300 Awc | Clamp interfaceHSK-A100 holder |
| Tilt Spindle Verticalfor Large Workpiecesvortex I V | 24.8" × 24.8" |
| Tilt Spindle Double Columnfor Large Workpiecesvortex E V | 31.5" × 31.5" |
| From 3937 3927 | CAT No.50 |
| Tilt Spindle Fixed Tablefor Long Workpiecesvtc | 137.8" × 32.28" |
| Aerospace Industrytilt Spindle Vortex Ii | 127.56" × 31.89" / 157.48" ×49.21" |
| High Speed 5 Axis Machiningtilt Spindle Vortex Horizontal Profiler | 157.48" × 49.21" / 157.48" ×62.99" |
| Horizontalhigh Speed 5 Axis Machininghcr | 19.69" × 19.69" |
| Die And Moldhigh Accuracy And Ultra Precision Machiningud | 12.6" × 12.6" |
| 5 Axis Double Column Machining Centeruniversal Headversatech | 118.11" × 82.68" to393.7" × 122.05" |
| Best Selling Machinesquick Turn | 6" to 21" |
| Cost Performance Modelqt Ez | 8" to 12" |
| Cost Performance Modelqte | 6" to 10" |
| Compact 2 Axis Turning Centersqt Primos | 5" to 8" |
| Turret Lathe For Heavy Duty Machiningslant Turn | 18" to 24" |
| Flat Turning Centers For Heavy Duty Cutting Turning Center | 12" |
| Flat Turning Centers For Heavy Duty Cutting Power Master | 15" |
| Milling2 Spindles And 2 Turretsmultiplex W | 8″ |
| 2 Spindles And 2 Turretsdual Turn 200 | 8″ |
| Milling2 Spindles And 3 Turretshqr Neo | 8" / 10" |
| Milling2 Spindle And Upper And Lower Turrethqr | 6″ |
| 8 To 10 | Φ13.54" |
| Milling Upper And Lower Turretsqrx 50 | 6" |
| Vertical Turning Centersmirror Modelmega Turn | 12" to Φ59.06" |
| Unique Turn Face Headstockorbitec 20 | 24.8" |
| High Speed Small Precise Parts Productionsyncrex | Φ0.375" to Φ1.5" |
| Cost Performance Modelvc Ez | CAT No.40 |
| Fixed Tablelong Workpiecesvtc Ez | CAT No.40 |
| Cat No50 | 6000 min-1 (rpm) |
| High Rigidity And High Torqueheavy Duty Cuttingmtv | CAT No.50 |
| Fixed Tablespace Savingvtc | CAT No.40 |
| Fixed Tablelong Workpiecesultra High Speedsvc | CAT No.40 |
| Mass Production Linepallet Size 400 Mm 400 Mmun | CAT No.30 |
| Double Columnhigh Accuracy And High Productivitybt40fjv | CAT No.40 |
| Double Columnhigh Accuracy And High Productivitybt50fjv | CAT No.50 |
| Double Columnhigh Accuracy And High Productivity5 Face Machiningfjv 5 Face | CAT No.50 |
| 5 Face Double Column Machining Centershigh Torque Spindleangle Headfjw | CAT No.50 |
| 5 Face Double Column Machining Centersuniversal Headsimultaneous 5 Axis Controlversatech | CAT No.50 |
| Environmentally Friendlyhcn Neo | 15.75" × 15.75" / 19.69" × 19.69" |
| Best Selling Machineshcn | up to 19.69" × 19.69" |
| From 315 315 | CAT No.50 |
| Difficult Machining Materialhigh Efficiency Machiningmega | 31.5" × 31.5" |
| Quill Axislarge Workpieceshcn Q | 49.21" × 39.37" to 62.99" × 49.21" |
| Ultra High Accuracy | 31.5" × 31.5" |
| Mass Productionspace Savingff | 19.69" × 19.69" |
| Mass Production Line Constructionpallet Size 400 Mm 400 Mmun | 15.75" × 15.75" |
Specifications sourced from mazak.com — verified 2026-03-28
Strengths & Limitations
Strengths
- Production-grade VCN construction with built-in motor spindle, ball screw core cooling, and roller guides in a compact package
- 1.3-second tool-to-tool change is among the fastest in the class, significantly reducing non-cutting time on multi-tool parts
- 42 m/min rapids on all axes keep positioning time short between cuts for tight production cycle times
- SmoothG CNC with tool life management and 3D simulation provides production management features absent from entry-level controls
- Through-spindle coolant at 20 bar standard supports aggressive drilling and tapping operations in production
- 48-tool expansion option accommodates complex multi-operation parts without mid-run manual tool loading
Limitations
- 430 mm Y-travel is tight for wider parts and tombstone-style fixtures; the VCN-530C offers 100 mm more Y-travel
- 15 kW spindle is adequate but not powerful for heavy roughing in steel; the VCN-530C and VCN-600 offer more power
- Starting at $115K, it is significantly more expensive than entry-level VMCs like the Haas VF-2 for similar travel
- Compact table size limits multi-part fixture setups compared to larger VCN models
- Mazak proprietary parts and service network means higher long-term maintenance costs than Haas or Fanuc-based machines
Best For
Frequently Asked Questions
01
New VCN-430A machines start around $115,000 for base configurations and reach $165,000 with options like 15,000 RPM spindle, 48-tool magazine, high-pressure coolant upgrade, probing, and chip conveyor. Used units from recent production typically sell in the $60,000-$90,000 range.
02
The VCN-530C offers 1,050 mm X-travel vs 762 mm, 530 mm Y-travel vs 430 mm, more spindle power (18.5 kW vs 15 kW), and a larger table. The VCN-430A is more compact and less expensive. Choose the 430A for smaller parts where floor space and budget matter; the 530C for larger parts and more versatility.
03
Both have similar X-travel (30 inches) but the VCN-430A is a production-grade machine with built-in motor spindle, 42 m/min rapids (vs 36), 1.3-second tool changes (vs ~2.5 seconds), SmoothG control (vs SmoothEz), and ball screw core cooling. The VC-Ez 20 is the entry-level alternative at roughly half the price.
04
Yes. The SmoothG CNC includes tool life management, broken tool detection support, and automatic tool offset compensation for extended unattended runs. Adding a pallet changer or robotic loading further extends unattended operation.

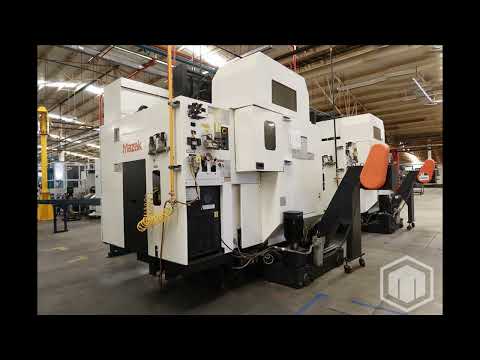

Videos
