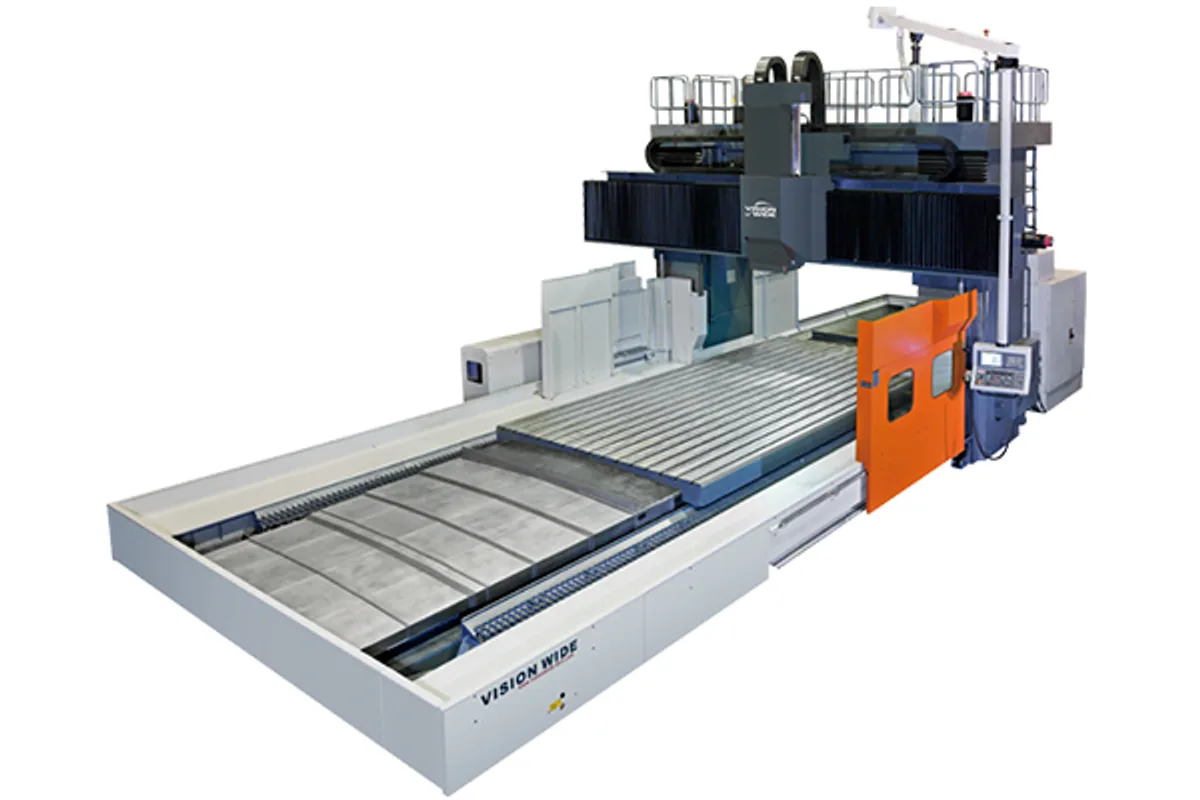

Vision Wide BM-6030 / 6037
Image: visionwide-tech.com, Vision Wide
Key Specifications
Table Size
x axis travel
y axis travel
z axis travel
w axis travel
max table load
How much does the Vision Wide BM-6030 / 6037 cost?
Price estimate
We do not have a price for the Vision Wide BM-6030 / 6037 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Two beams, one fixed and one moving, form the bridge of the Vision Wide BM-6030 / 6037. Vision Wide calls it a double beams configuration: the fixed beam keeps parallelism and structural rigidity, and the movable beam is designed for dynamic straightness and to sustain the cutting power.
The arrangement answers the usual objection to movable cross rails, which is that a beam free to slide on the columns is less stiff than one bolted to them. Here the columns stay tied together at the top by the fixed beam. When the moving beam reaches its working height, a precise clamping device holds it tightly, and the maker credits that clamp with supporting spindle cutting accuracy. A hydraulic system controls the parallelism of the rail as it travels, whatever the position of the headstock along Y, and dual cylinders support the W-axis movement.
Under the bridge is a 6,000×2,450 mm (236.2×96.5 in) table rated for 22,000 kg (48,501 lb), with 6,100 mm (240.2 in) of X travel. Y travel is 3,000 mm, or 3,700 mm on the longer of the two models.
Rapids are 8 / 10 / 12 / 2 m/min for X, Y, Z and W. The spindle motor is 22/26 kW (29.5/34.9 hp), and the control is a FANUC 0iMF Plus.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 6,100 mm (240.2 in) |
| Y Axis Travel | 3,000/ 3,700 mm (118.1/ 145.7 in) |
| Z Axis Travel | 1,000/ 1,200 mm (39.4/ 47.2 in)(Opt.)/1,400 mm (55.1 in)(Opt.) |
| W Axis Travel | 1,000/ 1,200 mm (39.4/ 47.2 in)(Opt.)/1,500 mm (59.1 in)(Opt.) |
| Table Size | 6,000×2,450 mm (236.2×96.5 in) |
| Max Table Load | 22,000 kg (48,501 lb) |
| Spindle Power Cont 30 Min | 22/26 kW (29.5/34.9 hp) (30/37 kW (40.2/49.6 hp) Opt.) |
| Spindle Speed Direct Driven | 8,000 rpm(Opt.)/ 10,000 rpm(Opt.) |
| Cutting Feed Rate | XYZ:1-7,000 mm/min W:1,000 mm/min |
| Rapid Traverse Xyzw | 8 / 10 / 12 / 2 m/min |
| Tool Capacity Floor Standing Vertical Tool Change | 40/60 pcs(Opt.)/90 pcs(Opt.) |
| Tool Capacity Floor Standing Vertical Horizontal Fixed | 40 pcs(Opt.)/60 pcs(Opt.)/90 pcs(Opt.) |
| Tool Capacity Floor Standing Vertical Horizontal Random | 40 pcs(Opt.)/60 pcs(Opt.)/90 pcs(Opt.) |
Specifications sourced from visionwide-tech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Double beams configuration: fixed top beam plus movable cross rail
- Clamping device holds the cross beam at working height
- 6,000×2,450 mm (236.2×96.5 in) table for 22,000 kg (48,501 lb)
- Hydraulic control of cross rail parallelism with dual support cylinders
Limitations
- X rapid of 8 m/min on the table axis
- No stiffness or accuracy figures back the structural description
- W travel beyond 1,000 mm is an option
Best For
Frequently Asked Questions
01
A fixed beam to keep parallelism and structural rigidity, and a movable beam for dynamic straightness and cutting power, in the maker's words. A precise clamping device holds the cross beam during cutting.
02
8 / 10 / 12 / 2 m/min for X, Y, Z and W. Cutting feed is 1-7,000 mm/min on X, Y and Z and 1,000 mm/min on W, the cross rail axis.
03
6,000×2,450 mm (236.2×96.5 in), with a 22,000 kg (48,501 lb) load. X travel is 6,100 mm (240.2 in) and Y travel 3,000 mm, or 3,700 mm on the longer-Y version of the BM-6030 / 6037.
04
W travel is listed as 1,000/ 1,200 mm (39.4/ 47.2 in)(Opt.)/1,500 mm (59.1 in)(Opt.): 1,000 mm standard, 1,200 mm or 1,500 mm optional.
