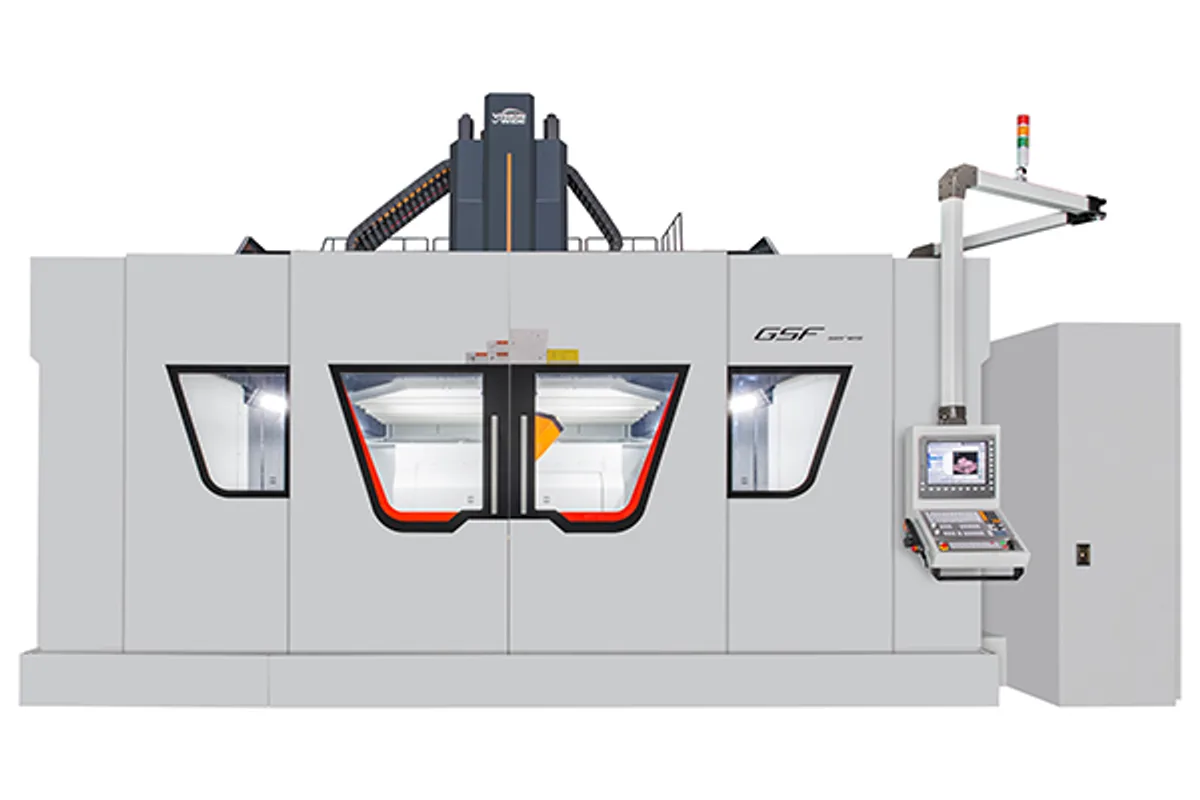

Vision Wide GSF-5027
Image: visionwide-tech.com, Vision Wide
Key Specifications
Max Spindle
Tool Capacity
Table Size
x axis travel
y axis travel
z axis travel
How much does the Vision Wide GSF-5027 cost?
Price estimate
We do not have a price for the Vision Wide GSF-5027 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Vision Wide GSF-5027 is one of the few machines in the maker's range offered with a choice of two five-axis controls. A HEIDENHAIN TNC640 controller is standard, and a SIEMENS 840D SL controller is the option.
On a simultaneous five-axis machine the control is not a detail. It runs the tool-centre-point function that the TCPM figure of 0.04mm is measured through, and the shop's post-processors, probing cycles and operator habits are all tied to one control family or the other. Being able to match the machine to what the programmers already use removes a real obstacle.
The machine has 5,000 mm (196.9 in) of X travel, 2,700 mm (106.3 in) of Y and a 5,000 x 2,700 mm (196.9 x 106.3 in) fixed table. Five metres is a common length for wing and fuselage tooling, long molds and large structural parts in aluminum.
Its head carries a built-in spindle direct-driven on the B and C axes, 15,000 rpm, with 50/65 kW (67.1/87.2 hp). Rapids are 32 m/min in X and Y and 20 m/min in Z, and cutting feed runs 1-20,000 mm/min. Z travel is 1,000/1,200 mm (39.4/47.2 in).
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 5,000 mm (196.9 in) |
| Y Axis Travel | 2,700 mm (106.3 in) |
| Z Axis Travel | 1,000/1,200 mm (39.4/47.2 in) |
| Table Size | 5,000 x 2,700 mm (196.9 x 106.3 in) |
| Max Table Load | 3,000 kg/m2 |
| Spindle Power S1 S6 | 50/65 kW (67.1/87.2 hp) |
| Max Spindle Speed | 15,000 rpm |
| Cutting Feed Rate | 1-20,000 mm/min |
| Rapid Traverse Xyz | XY:32 m/min / Z:20 m/min |
| Tool Capacity | 20/32/40/60 pcs |
Specifications sourced from visionwide-tech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- HEIDENHAIN TNC640 standard, SIEMENS 840D SL optional
- 5,000 x 2,700 mm (196.9 x 106.3 in) fixed table at 3,000 kg/m2
- TCPM accuracy of 0.04mm stated by the maker
- Cutting feed up to 20,000 mm/min on a five-metre gantry
Limitations
- Only these two controls are listed for the series
- Z travel of 1,000/1,200 mm (39.4/47.2 in)
- Larger tool magazines than 20T are extras
Best For
Frequently Asked Questions
01
The HEIDENHAIN TNC640 controller is standard and the SIEMENS 840D SL controller is listed as an option. No other control appears in the GSF accessory lists.
02
X travel is 5,000 mm (196.9 in), Y travel 2,700 mm (106.3 in) and Z travel 1,000/1,200 mm (39.4/47.2 in). The table is 5,000 x 2,700 mm (196.9 x 106.3 in).
03
Vision Wide states a 5 axis dynamic rotation synchronization accuracy (TCPM) of 0.04mm for the GSF series, with a B/C rotation positioning accuracy of ±5 arc-seconds.
04
Both have 5,000 mm (196.9 in) of X and 2,700 mm (106.3 in) of Y with a 15,000 rpm spindle. The GSF-5027 moves its B and C axes during cutting; the GSA-5027 indexes its head between cuts.
