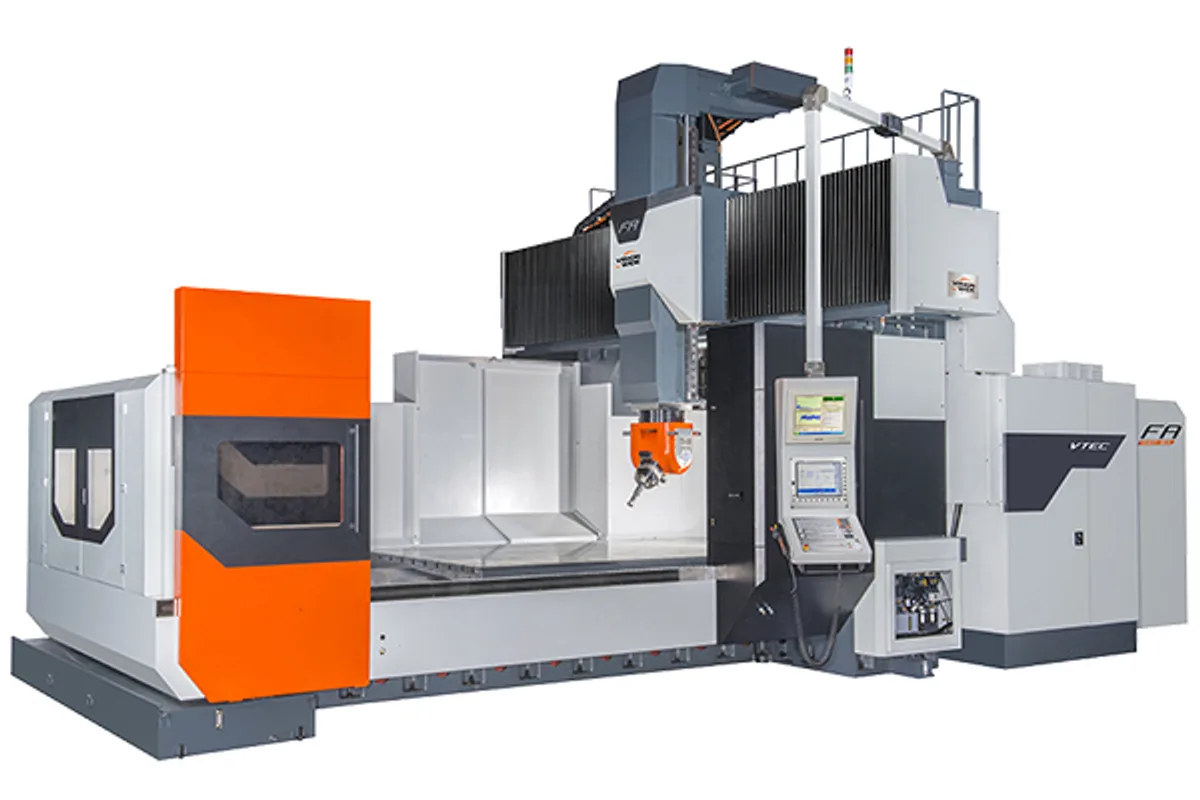

Vision Wide FA-2623
Image: visionwide-tech.com, Vision Wide
Key Specifications
Max Spindle
Spindle Taper
Table Size
x axis travel
y axis travel
z axis travel
How much does the Vision Wide FA-2623 cost?
Price estimate
We do not have a price for the Vision Wide FA-2623 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Measurement is built into the Vision Wide FA-2623. The standard accessory list includes Blum TC 60 auto measurement compensation of rotation axis accuracy, and the feature list adds auto measurement compensation for tool accuracy. A five-axis machine is only as accurate as its knowledge of where the rotary axes really are, and here the machine checks that itself.
The results it is expected to hold are stated. Positioning accuracy is ±0.004 mm (±0.00016 in) over full travel, repeatability ±0.001 mm (±0.00004 in), and TCPM 0.04mm. Linear scales on X, Y and Z are standard.
Thermal behaviour is covered too. Vision Wide says the machine is not affected by spindle thermal variation and environment temperature change, with thermal elongation less than 0.02mm, and that spindle vibration is lower than 1 mm/sec. For long five-axis finishing passes those two figures decide whether the surface matches from the first hour to the last.
The FA-2623 has 2,600 mm (102.4 in) of X travel and 2,300 mm (90.6 in) of Y. Its table is 2,800x1,600 mm (110.2x63.0 in) for 12,000 kg (26,455 lb). The spindle is the HSK-A63 high-speed type with 25 / 30 kW (33.5 / 40.2 hp), and rapids are 24 / 24 / 20 m/min.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 2,600 mm (102.4 in) |
| Y Axis Travel | 2,300 mm (90.6 in) |
| Z Axis Travel | 800 / 1,000 mm (31.5 / 39.4 in)(opt.) |
| Port Width | 1,700 mm (66.9 in) |
| Table Size | 2,800x1,600 mm (110.2x63.0 in) |
| Max Table Load | 12,000 kg (26,455 lb) |
| Max Spindle Speed | 24,000 rpm |
| Spindle Power Cont 30 Min | 25 / 30 kW (33.5 / 40.2 hp) |
| Spindle Torque Cont 30 Min | 30 / 36 Nm (22.1 / 26.6 lb-ft) |
| Spindle Taper | HSK-A63 |
| Cutting Feed Rate | 1~24,000 mm/min |
| Rapid Traverse Xyz | 24 / 24 / 20 m/min |
| Positioning Accuracy Jis B6333 | ±0.004 mm (±0.00016 in)/Full travel |
| Repeatability Jis B6333 | ±0.001 mm (±0.00004 in) |
| Tool Capacity Floor Standing Vertical Tool Change | 24/32 pcs(opt.)/40 pcs(opt.) |
Specifications sourced from visionwide-tech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Blum TC 60 auto measurement compensation of rotation axis accuracy is standard
- Thermal elongation stated as less than 0.02mm
- Spindle vibration stated as lower than 1 mm/sec
- ±0.004 mm (±0.00016 in) full-travel positioning with linear scales on all axes
Limitations
- Y travel of 2,300 mm (90.6 in) with a port width of 1,700 mm (66.9 in)
- Spindle torque is 30 / 36 Nm (22.1 / 26.6 lb-ft)
- Coolant through spindle system is an option
Best For
Frequently Asked Questions
01
Blum TC 60 auto measurement compensation of rotation axis accuracy is a standard accessory. The feature list also names auto measurement compensation for tool accuracy and a TCPM figure of 0.04mm.
02
The FA text says the machine is not affected by spindle thermal variation and environment temperature change, with thermal elongation less than 0.02mm. Spindle vibration is given as lower than 1 mm/sec.
03
Table: 2,800x1,600 mm (110.2x63.0 in), 12,000 kg (26,455 lb). Travels: 2,600 mm (102.4 in) in X, 2,300 mm (90.6 in) in Y, and 800 mm in Z with 1,000 mm optional.
04
A HEIDENHAIN TNC640 controller is standard. The standard list notes that the remote monitoring software is not available for a Siemens controller, which implies a Siemens option, but none is named on the page.
