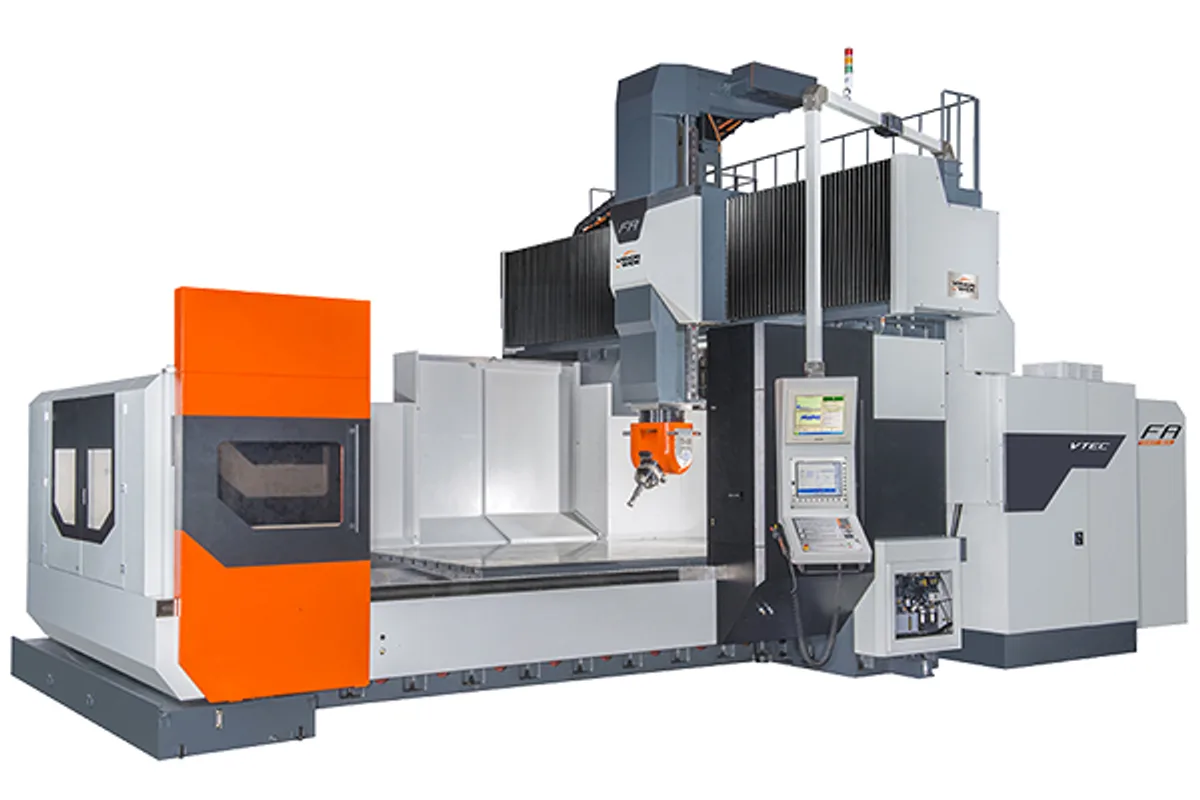

Vision Wide FA-3123
Image: visionwide-tech.com, Vision Wide
Key Specifications
Max Spindle
Spindle Taper
Table Size
x axis travel
y axis travel
z axis travel
How much does the Vision Wide FA-3123 cost?
Price estimate
We do not have a price for the Vision Wide FA-3123 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Vision Wide FA-3123 is the longest FA with the high-speed spindle: 3,100 mm (122.0 in) of X travel, 2,300 mm (90.6 in) of Y, and a 3,300x1,600 mm (129.9x63.0 in) table rated for 14,000 kg (30,864 lb).
There is a mismatch here that a buyer should see clearly. The table will carry fourteen tonnes, but the spindle delivers 30 / 36 Nm (22.1 / 26.6 lb-ft). That torque suits ball mills and small end mills, not the face mills a part of that weight is usually roughed with. In other words the FA-3123 finishes heavy parts; it does not rough them. A large mold arrives pre-machined, and this machine takes the last passes at up to 24,000 mm/min of cutting feed.
If roughing has to happen on the same machine, look instead at the FA-3027, which has the same X travel with an HSK-A100 spindle producing 162 / 205 Nm (119 / 151 lb-ft) at 12,000 rpm.
What the FA-3123 gives in return is the tighter accuracy class of the series, ±0.004 mm (±0.00016 in) over full travel, and the faster axes, 24 / 24 / 20 m/min. Z travel is 800 mm, or 1,000 mm as an option. Twenty-four tools are standard in a floor-standing changer.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 3,100 mm (122.0 in) |
| Y Axis Travel | 2,300 mm (90.6 in) |
| Z Axis Travel | 800 / 1,000 mm (31.5 / 39.4 in)(opt.) |
| Port Width | 1,700 mm (66.9 in) |
| Table Size | 3,300x1,600 mm (129.9x63.0 in) |
| Max Table Load | 14,000 kg (30,864 lb) |
| Max Spindle Speed | 24,000 rpm |
| Spindle Power Cont 30 Min | 25 / 30 kW (33.5 / 40.2 hp) |
| Spindle Torque Cont 30 Min | 30 / 36 Nm (22.1 / 26.6 lb-ft) |
| Spindle Taper | HSK-A63 |
| Cutting Feed Rate | 1~24,000 mm/min |
| Rapid Traverse Xyz | 24 / 24 / 20 m/min |
| Positioning Accuracy Jis B6333 | ±0.004 mm (±0.00016 in)/Full travel |
| Repeatability Jis B6333 | ±0.001 mm (±0.00004 in) |
| Tool Capacity Floor Standing Vertical Tool Change | 24/32 pcs(opt.)/40 pcs(opt.) |
Specifications sourced from visionwide-tech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 3,300x1,600 mm (129.9x63.0 in) table for 14,000 kg (30,864 lb)
- Cutting feed of 1~24,000 mm/min for long finishing passes
- ±0.004 mm (±0.00016 in) positioning accuracy over full travel
- Rapids of 24 / 24 / 20 m/min
Limitations
- 30 / 36 Nm (22.1 / 26.6 lb-ft) of spindle torque: a finishing spindle only
- X travel is shorter than the table length
- Z travel of 800 mm as standard
Best For
Frequently Asked Questions
01
It is not suited to it. Spindle torque is 30 / 36 Nm (22.1 / 26.6 lb-ft) on an HSK-A63 taper. The FA-3027 has 162 / 205 Nm (119 / 151 lb-ft) on HSK-A100 and is the better choice for mixed roughing and finishing.
02
03
X is 3,100 mm (122.0 in), Y is 2,300 mm (90.6 in) and Z is 800 / 1,000 mm (31.5 / 39.4 in)(opt.). Port width is 1,700 mm (66.9 in).
04
The table lists 24/32 pcs(opt.)/40 pcs(opt.) with a floor-standing type vertical tool change. A 24 tools magazine with ATC is standard and a 32/40 tool magazine is optional.
