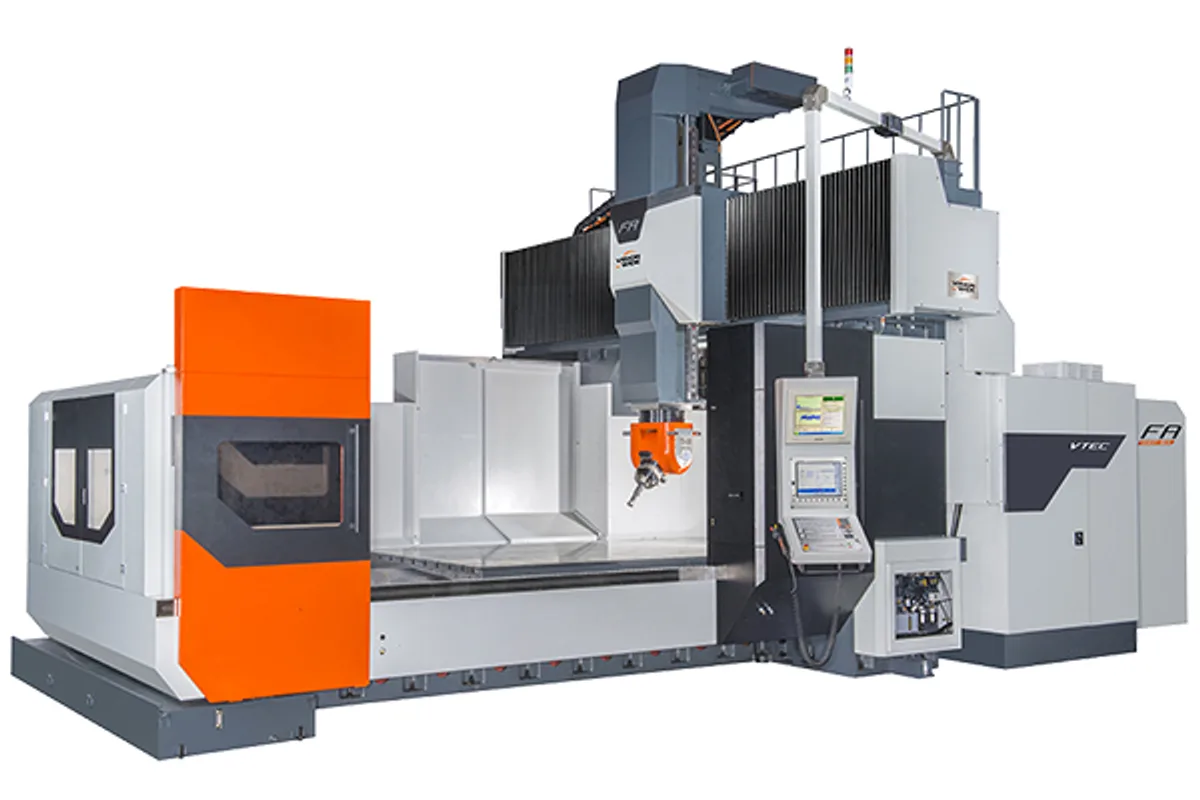

Vision Wide FA-8033
Image: visionwide-tech.com, Vision Wide
Key Specifications
Max Spindle
Spindle Taper
Table Size
x axis travel
y axis travel
z axis travel
How much does the Vision Wide FA-8033 cost?
Price estimate
We do not have a price for the Vision Wide FA-8033 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Eight metres is as long as the FA series goes. The Vision Wide FA-8033 has 8,100 mm (318.9 in) of X travel, 3,300 mm (129.9 in) of Y, and an 8,000×2,450 mm (315.0×96.5 in) table that carries 24,000 kg (52,910 lb).
Five-axis machines of this length are uncommon, and the parts that call for one are specific: long aerostructure tooling, large blade molds, vehicle body dies, rail and marine components with compound surfaces. What they share is a surface that cannot be finished from a fixed tool angle and a length that will not fit a shorter bed.
The X axis is the slow one. Its rapid is 8 m/min, against 15 m/min for Y and Z, and cutting feed is 1-10,000 mm/min. A program that sweeps along the length of the part should be planned with that in mind; sweeping across it uses the faster axis.
Vision Wide states a five-axis dynamic accuracy (TCPM) of 0.04mm for the series and, for this frame, positioning of ±0.010 mm (±0.0004 in) over full travel. The spindle is the 12,000 rpm HSK-A100 type with 34 / 43 kW (45.6 / 57.7 hp). An X axis ball screw supporter and XYZ linear scales are standard. Z travel is 1,000 mm, or 1,200 mm.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 8,100 mm (318.9 in) |
| Y Axis Travel | 3,300 mm (129.9 in) |
| Z Axis Travel | 1,000 / 1,200 mm (39.4 / 47.2 in)(opt.) |
| Port Width | 2,700 mm (106.3 in) |
| Table Size | 8,000×2,450 mm (315.0×96.5 in) |
| Max Table Load | 24,000 kg (52,910 lb) |
| Max Spindle Speed | 12,000 rpm |
| Spindle Power Cont 30 Min | 34 / 43 kW (45.6 / 57.7 hp) |
| Spindle Torque Cont 30 Min | 162 / 205 Nm (119 / 151 lb-ft) |
| Spindle Taper | HSK-A100 |
| Cutting Feed Rate | 1-10,000 mm/min |
| Rapid Traverse Xyz | 8 / 15 / 15 m/min |
| Positioning Accuracy Jis B6333 | ±0.005/300, mm (±0.00020/11.8 in) ±0.010 mm (±0.0004 in)/Full travel |
| Repeatability Jis B6333 | ±0.002 mm (±0.00008 in) |
| Tool Capacity Floor Standing Vertical Tool Change | 24/32 pcs(opt.)/40 pcs(opt.) |
Specifications sourced from visionwide-tech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 8,100 mm (318.9 in) of X travel, the longest FA
- 24,000 kg (52,910 lb) on an 8,000×2,450 mm (315.0×96.5 in) table
- TCPM accuracy of 0.04mm stated for the series
- X axis ball screw supporter and XYZ linear scales are standard
Limitations
- X rapid of 8 m/min, the slowest in the FA series
- Z travel of 1,000 mm, or 1,200 mm optional, on an eight-metre machine
- Cutting feed of 1-10,000 mm/min
Best For
Frequently Asked Questions
01
The FA-8033, with 8,100 mm (318.9 in) of X travel, 3,300 mm (129.9 in) of Y, and an 8,000×2,450 mm (315.0×96.5 in) table rated for 24,000 kg (52,910 lb).
02
Rapid traverse is 8 / 15 / 15 m/min for X, Y and Z, so X is the slowest axis. Cutting feed is 1-10,000 mm/min.
03
Positioning accuracy of ±0.005/300 and ±0.010 mm (±0.0004 in)/Full travel, repeatability of ±0.002 mm (±0.00008 in), and a five-axis TCPM accuracy of 0.04mm.
04
12,000 rpm on HSK-A100 with 34 / 43 kW (45.6 / 57.7 hp) and 162 / 205 Nm (119 / 151 lb-ft). A 20,000rpm HSK-A63 spindle is optional for the FA-xx33 series.
