Vision Wide GSF-6027

Q: How much does the Vision Wide GSF-6027 cost?

The price estimate for the Vision Wide GSF-6027 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/vision-wide-gsf-6027#price; the request is passed to Vision Wide or an authorised dealer.

Specs verified 2026-10-04 · visionwide-tech.com Updated 2026-10-04

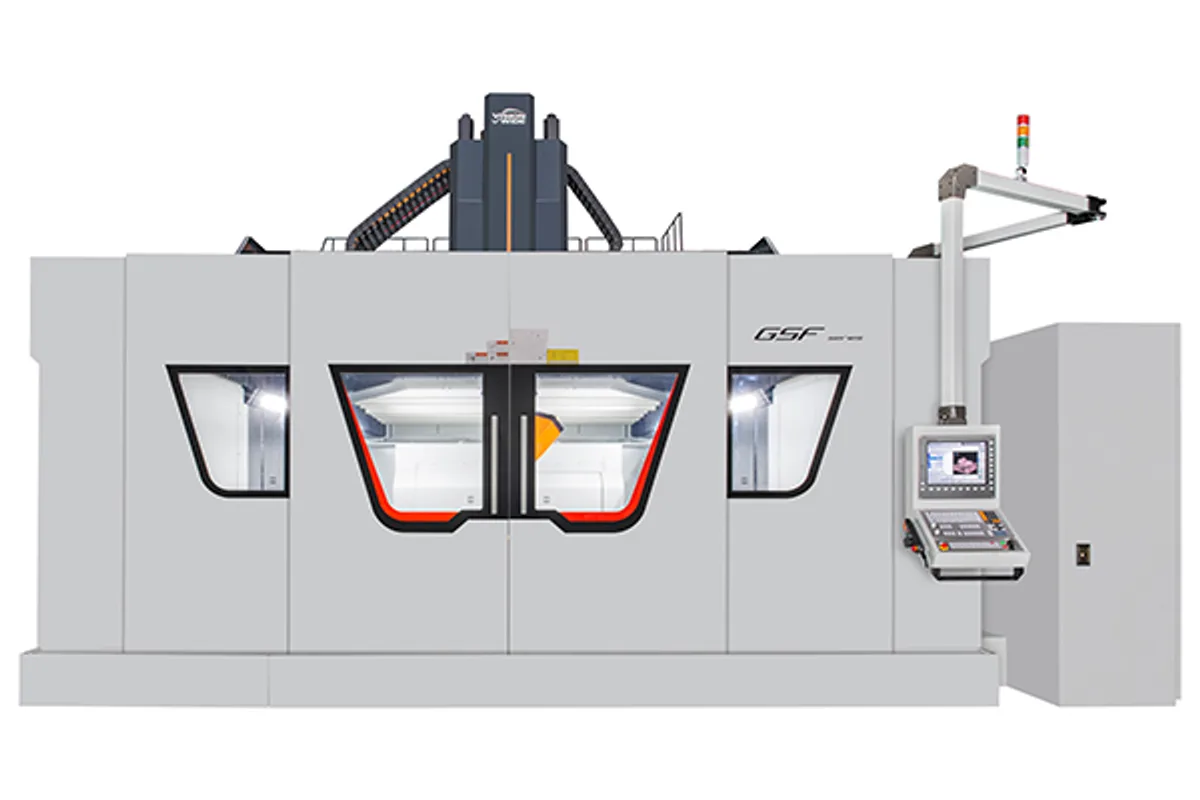

Image: visionwide-tech.com, Vision Wide

Key Specifications

Max Spindle

15,000 rpm

Tool Capacity

20/32/40/60 pcs

Table Size

6,000 x 2,700 mm (236.2 x 106.3 in)

x axis travel

6,000 mm (236.2 in)

y axis travel

2,700 mm (106.3 in)

z axis travel

1,000/1,200 mm (39.4/47.2 in)

How much does the Vision Wide GSF-6027 cost?

Price estimate

Uncertain

We do not have a price for the Vision Wide GSF-6027 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

Six metres of X travel and a five-axis head make the Vision Wide GSF-6027 a machine for long parts with contoured surfaces: 6,000 mm (236.2 in) in X, 2,700 mm (106.3 in) in Y, over a 6,000 x 2,700 mm (236.2 x 106.3 in) fixed table.

Coolant through a tilting head is harder than through a fixed spindle, and the option list is specific. There is a coolant through spindle system at 20/ 60 bars, the interface for it on its own, and a combined version with coolant at 20 / 60 bars plus air through at 6 bars. The air-through function matters for materials cut dry, where the tool needs chip clearing and cooling without fluid. A cutting fluid cooling system is standard.

Chip removal is standard too. The feature text mentions a chain type chip conveyor, and the accessory list has screw type conveyors on the table sides and a caterpillar type conveyor with water tank.

The spindle is the 15,000 rpm built-in unit with 50/65 kW (67.1/87.2 hp). Rapids are 32 m/min in X and Y and 20 m/min in Z. The maker points to a low table height, a close operating zone and a wide door, useful when a six-metre part has to be loaded and set.

Full Specifications

Parameter	Value
X Axis Travel	6,000 mm (236.2 in)
Y Axis Travel	2,700 mm (106.3 in)
Z Axis Travel	1,000/1,200 mm (39.4/47.2 in)
Table Size	6,000 x 2,700 mm (236.2 x 106.3 in)
Max Table Load	3,000 kg/m2
Spindle Power S1 S6	50/65 kW (67.1/87.2 hp)
Max Spindle Speed	15,000 rpm
Cutting Feed Rate	1-20,000 mm/min
Rapid Traverse Xyz	XY:32 m/min / Z:20 m/min
Tool Capacity	20/32/40/60 pcs

Specifications sourced from visionwide-tech.com — verified 2026-10-04

Strengths & Limitations

Strengths

6,000 mm (236.2 in) of X travel with simultaneous five-axis cutting
Coolant through spindle at 20/ 60 bars, with an air-through option at 6 bars
Table-side screw conveyors and caterpillar chip conveyor are standard
Low table height and wide door, per the maker

Limitations

Through-spindle coolant and air are options
Y travel of 2,700 mm (106.3 in); the GSF-6032 is wider
Z travel of 1,000/1,200 mm (39.4/47.2 in) on a six-metre machine

Best For

Long contoured parts and tooling Dry cutting with air through the spindle Six-metre molds finished in five axes

Frequently Asked Questions

01 What coolant options does the Vision Wide GSF-6027 have?

Optional: coolant through spindle system 20/ 60 bars, the interface of coolant through spindle, and coolant through spindle system 20 / 60 bars plus air through 6 bars. A cutting fluid cooling system is standard.

02 How long is the GSF-6027?

X travel is 6,000 mm (236.2 in) and the fixed table measures 6,000 x 2,700 mm (236.2 x 106.3 in). Y travel is 2,700 mm (106.3 in). Overall machine dimensions are not given in the table.

03 How are chips handled on the GSF-6027?

A screw type chip conveyor on the table sides and a caterpillar type chip conveyor with water tank are standard. The feature text also describes a chain type chip conveyor as standard.

04 What is the spindle on the GSF-6027?

A built-in spindle direct-driven on the B and C axes, 15,000 rpm, rated 50/65 kW (67.1/87.2 hp). The standard head is listed as HST810x15,000 rpm/HSK-A100.
