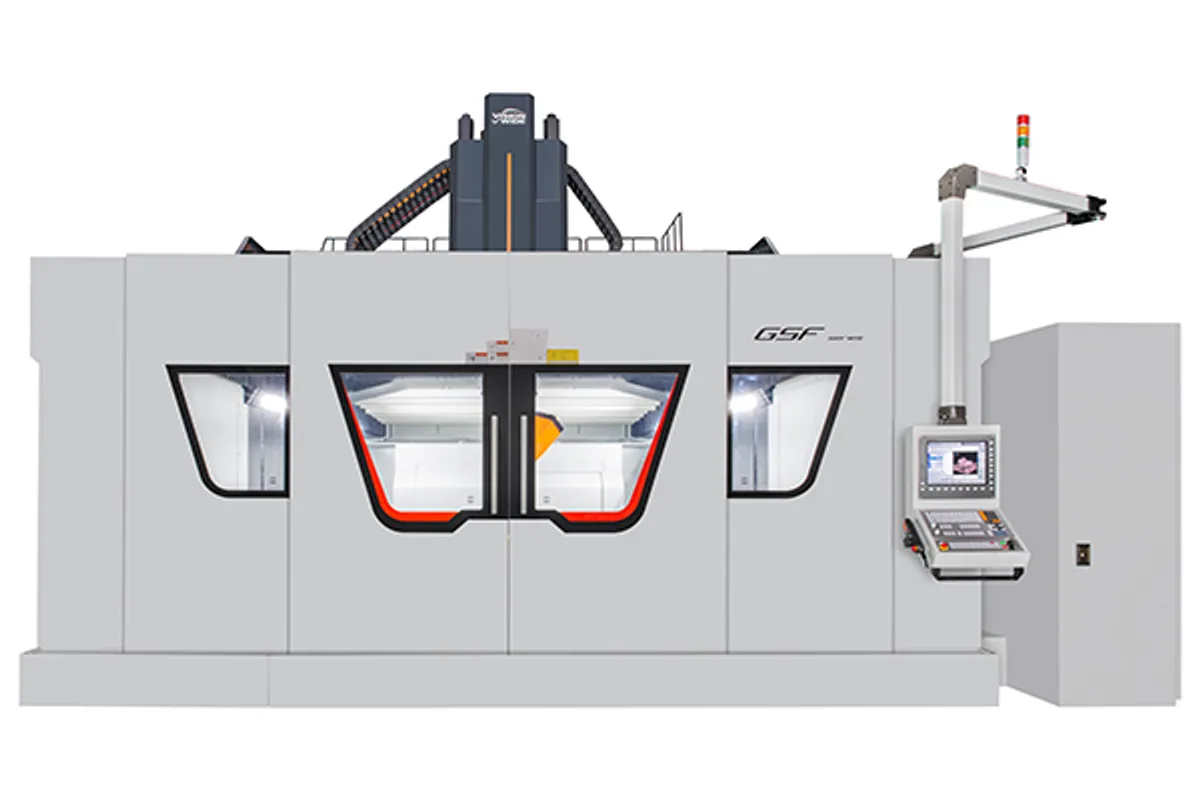

Vision Wide GSF-3032
Image: visionwide-tech.com, Vision Wide
Key Specifications
Max Spindle
Tool Capacity
Table Size
x axis travel
y axis travel
z axis travel
How much does the Vision Wide GSF-3032 cost?
Price estimate
We do not have a price for the Vision Wide GSF-3032 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Tool capacity is the row to look at on the Vision Wide GSF-3032. The specification table lists 20/32/40/60 pcs, four sizes, while the accessory lists name a vertical type tool magazine 20T as standard and a 32T magazine as the option, and say nothing of 40 or 60.
Five-axis finishing runs long and uses many cutters: roughing tools, a range of ball and bull-nose mills, and duplicates of the finishing tools so a worn one can be swapped without stopping. Twenty pockets fill quickly. Whoever specifies the machine should settle which of the four sizes is actually on offer for this frame and what it does to the footprint.
The frame is the wide one, 3,200 mm (126.0 in) in Y, with 3,000 mm (118.1 in) of X and a 3,000 x 3,200 mm (118.1 x 126.0 in) table rated 3,000 kg/m2. The working area is close to square, a good shape for large molds and for round parts such as casings and ring tooling.
In motion it matches the rest of the series: 32 m/min rapid in X and Y, 20 m/min in Z, cutting feed of 1-20,000 mm/min. The spindle is 15,000 rpm with 50/65 kW (67.1/87.2 hp), and the stated TCPM accuracy is 0.04mm.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 3,000 mm (118.1 in) |
| Y Axis Travel | 3,200 mm (126.0 in) |
| Z Axis Travel | 1,000/1,200 mm (39.4/47.2 in) |
| Table Size | 3,000 x 3,200 mm (118.1 x 126.0 in) |
| Max Table Load | 3,000 kg/m2 |
| Spindle Power S1 S6 | 50/65 kW (67.1/87.2 hp) |
| Max Spindle Speed | 15,000 rpm |
| Cutting Feed Rate | 1-20,000 mm/min |
| Rapid Traverse Xyz | XY:32 m/min / Z:20 m/min |
| Tool Capacity | 20/32/40/60 pcs |
Specifications sourced from visionwide-tech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Tool capacity listed up to 60 pcs
- Near-square 3,000 x 3,200 mm (118.1 x 126.0 in) fixed table
- TCPM accuracy of 0.04mm in five-axis motion
- Cutting feed of 1-20,000 mm/min
Limitations
- The table and the accessory lists disagree on which magazine sizes are offered
- Standard magazine is the 20T size
- Z travel is 1,000/1,200 mm (39.4/47.2 in)
Best For
Frequently Asked Questions
01
The specification table lists 20/32/40/60 pcs. The accessory lists show a vertical type tool magazine 20T as standard and 32T as optional. Confirm with the maker whether the 40 and 60 sizes are available for this model.
02
X travel is 3,000 mm (118.1 in), Y travel is 3,200 mm (126.0 in) and Z travel is 1,000/1,200 mm (39.4/47.2 in).
03
3,000 x 3,200 mm (118.1 x 126.0 in), fixed, with a load rating of 3,000 kg/m2. The GSF-3027 has a 3,000 x 2,700 mm (118.1 x 106.3 in) table.
04
A 15,000 rpm built-in spindle with 50/65 kW (67.1/87.2 hp), direct-driven on the B and C axes. Vision Wide states a TCPM accuracy of 0.04mm for five-axis motion.
