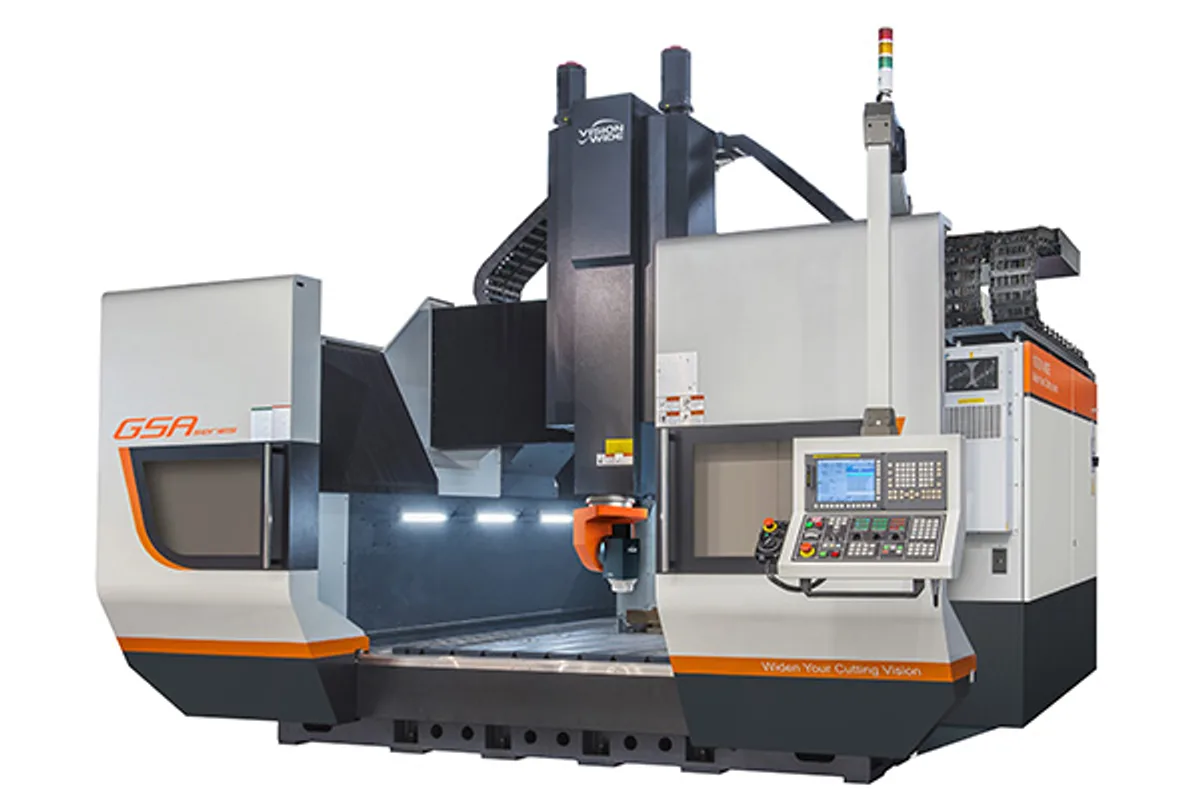

Vision Wide GSA-5027
Image: visionwide-tech.com, Vision Wide
Key Specifications
Max Spindle
Table Size
x axis travel
y axis travel
z axis travel
spindle power cont 30 min
How much does the Vision Wide GSA-5027 cost?
Price estimate
We do not have a price for the Vision Wide GSA-5027 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Speed over distance is the case for the Vision Wide GSA-5027. Its X travel is 5,000 mm (196.9 in), and the gantry crosses it at 32 m/min; Y, at 2,700 mm (106.3 in), moves at the same rate, and Z at 20 m/min.
Compare that with a moving-table machine of similar length. The SM-5122, for example, carries its work on a 5,300×2,100 mm (208.7×82.7 in) table rated for 18,000 kg (39,683 lb), and the whole table has to be accelerated with the part on it. The GSA moves only its gantry. That is why a five-metre gantry can list a cutting feed range of 1~20,000 mm/min.
The trade is in the kind of work. This is a machine for molds, tooling plates and contour finishing, where the maker promises high accuracy performance in mold cutting and highly precise contour finishing, milling, drilling and tapping. The spindle is a 15,000 rpm unit with 50/65 kW (67.1/87.2 hp), and the head indexes on two axes.
The table is 5,000×2,700 mm (196.9×106.3 in). A vertical type tool magazine 20T with arm type ATC is standard and a 32T magazine is the listed option. The control is a HEIDENHAIN TNC640.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 5,000 mm (196.9 in) |
| Y Axis Travel | 2,700 mm (106.3 in) |
| Z Axis Travel | 1,000/1,200 mm (39.4/47.2 in)(Opt.) |
| Table Size | 5,000×2,700 mm (196.9×106.3 in) |
| Spindle Power Cont 30 Min | 50/65 kW (67.1/87.2 hp) |
| Max Spindle Speed | 15,000 rpm |
| Cutting Feed Rate | 1~20,000 mm/min |
| Rapid Traverse Xyz | 32/32/20 m/min |
Specifications sourced from visionwide-tech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 32 m/min rapid over 5,000 mm (196.9 in) of X travel
- Cutting feed up to 20,000 mm/min
- Fixed 5,000×2,700 mm (196.9×106.3 in) table, so axis dynamics do not depend on part weight
- 50/65 kW (67.1/87.2 hp) spindle at 15,000 rpm
Limitations
- Largest tool magazine listed is 32T
- Usable table load is not clear from the maker's table
- Z travel of 1,000 mm, or 1,200 mm as an option
Best For
Frequently Asked Questions
01
Rapid traverse is 32/32/20 m/min in X/Y/Z and the cutting feed range is 1~20,000 mm/min. X travel is 5,000 mm (196.9 in).
02
It is not clear from the page. The GSA table prints one load figure, in kilograms, for every table size in the series, while the related GS and GSF tables give a load per square metre. Ask Vision Wide for the rating that applies to this table.
03
A vertical type tool magazine 20T with arm type ATC is standard. A vertical type tool magazine 32T with arm type ATC is the option.
04
5,000 mm (196.9 in) in X, 2,700 mm (106.3 in) in Y and 1,000/1,200 mm (39.4/47.2 in)(Opt.) in Z. The table measures 5,000×2,700 mm (196.9×106.3 in).
