Vision Wide GSF-2232

Q: How much does the Vision Wide GSF-2232 cost?

The price estimate for the Vision Wide GSF-2232 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/vision-wide-gsf-2232#price; the request is passed to Vision Wide or an authorised dealer.

Specs verified 2026-10-04 · visionwide-tech.com Updated 2026-10-04

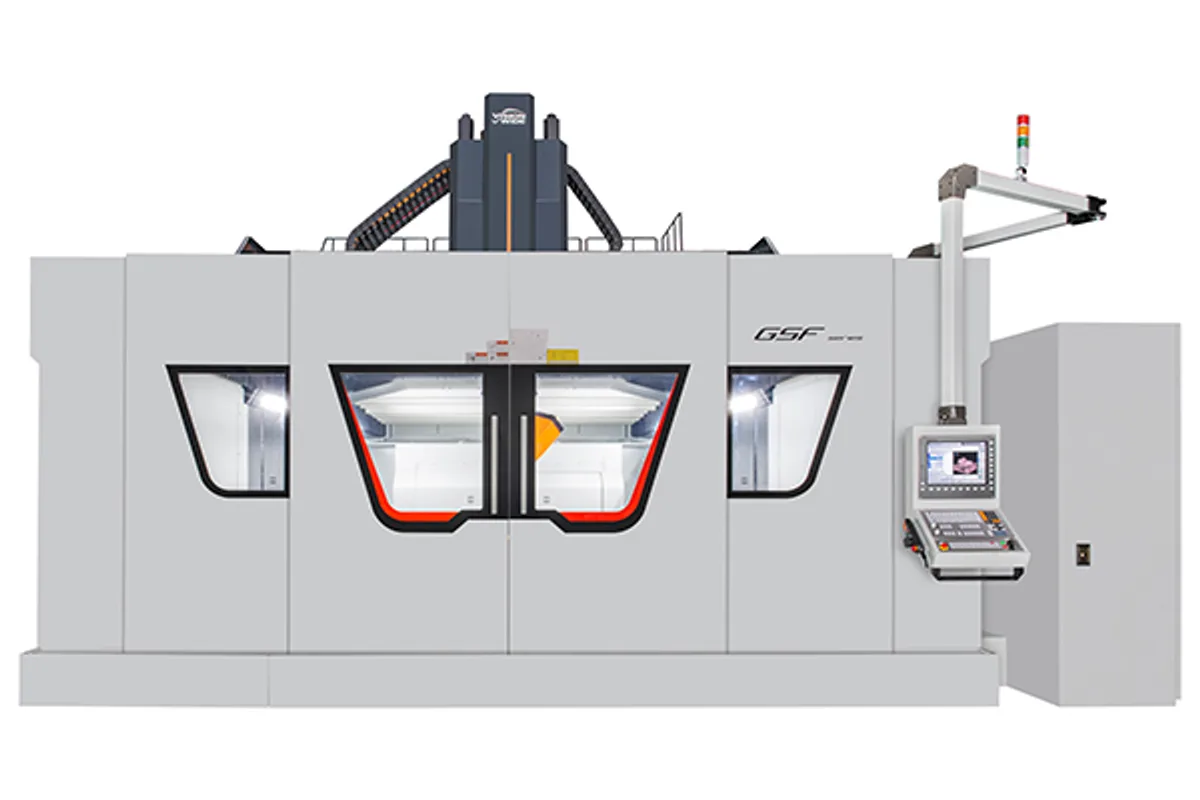

Image: visionwide-tech.com, Vision Wide

Key Specifications

Max Spindle

15,000 rpm

Tool Capacity

20/32/40/60 pcs

Table Size

2,200 x 3,200 mm (86.6 x 126.0 in)

x axis travel

2,200 mm (86.6 in)

y axis travel

3,200 mm (126.0 in)

z axis travel

1,000/1,200 mm (39.4/47.2 in)

How much does the Vision Wide GSF-2232 cost?

Price estimate

Uncertain

We do not have a price for the Vision Wide GSF-2232 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The wide frame of the GSF series begins with the Vision Wide GSF-2232, which spans 3,200 mm (126.0 in) in Y on a gantry stroke of 2,200 mm (86.6 in). Its fixed table measures 2,200 x 3,200 mm (86.6 x 126.0 in).

A five-axis head needs room around the part as well as over it. When the spindle tilts to cut a side wall, the head body swings outward, and the linear axes must travel beyond the part edge to keep the tool tip where it belongs. So a part that just fits the table in three-axis terms may not be reachable on all sides in five. The extra cross travel of this frame, compared with the 2,700 mm (106.3 in) of the GSF-2227, is partly bigger parts and partly that working margin.

Vision Wide publishes neither the swivel range of the B axis nor the length of the head from pivot to spindle nose. Both are needed to work out the reachable envelope for a tilted tool, and a buyer with a specific part should ask for a collision study.

The head holds a 50/65 kW (67.1/87.2 hp) built-in spindle at 15,000 rpm. Table load is 3,000 kg/m2. Rapids are 32 m/min in X and Y and 20 m/min in Z.

Full Specifications

Parameter	Value
X Axis Travel	2,200 mm (86.6 in)
Y Axis Travel	3,200 mm (126.0 in)
Z Axis Travel	1,000/1,200 mm (39.4/47.2 in)
Table Size	2,200 x 3,200 mm (86.6 x 126.0 in)
Max Table Load	3,000 kg/m2
Spindle Power S1 S6	50/65 kW (67.1/87.2 hp)
Max Spindle Speed	15,000 rpm
Cutting Feed Rate	1-20,000 mm/min
Rapid Traverse Xyz	XY:32 m/min / Z:20 m/min
Tool Capacity	20/32/40/60 pcs

Specifications sourced from visionwide-tech.com — verified 2026-10-04

Strengths & Limitations

Strengths

3,200 mm (126.0 in) of Y travel gives margin for a tilted five-axis head
2,200 x 3,200 mm (86.6 x 126.0 in) fixed table at 3,000 kg/m2
50/65 kW (67.1/87.2 hp) built-in spindle at 15,000 rpm
Short gantry stroke keeps the machine compact in X

Limitations

B-axis swivel range and head pivot length are not published
X travel of 2,200 mm (86.6 in) is the shortest on the wide frame
Z travel of 1,000/1,200 mm (39.4/47.2 in)

Best For

Wide parts machined on their side walls in five axes Broad molds loaded from the long side of the table Parts needing a full collision-checked five-axis envelope

Frequently Asked Questions

01 What are the travels of the Vision Wide GSF-2232?

2,200 mm (86.6 in) in X, 3,200 mm (126.0 in) in Y and 1,000/1,200 mm (39.4/47.2 in) in Z. The table measures 2,200 x 3,200 mm (86.6 x 126.0 in).

02 How far can the GSF-2232 head tilt?

The page does not give the B or C axis ranges. It states that the built-in spindle is direct-driven on the B and C axes with a rotation positioning accuracy of ±5 arc-seconds. Ask Vision Wide for the swivel range and head dimensions.

03 How does the GSF-2232 differ from the GSF-2227?

The GSF-2227 has 2,700 mm (106.3 in) of Y travel and a 2,200 x 2,700 mm (86.6 x 106.3 in) table. The GSF-2232 has 3,200 mm (126.0 in) of Y and a 2,200 x 3,200 mm (86.6 x 126.0 in) table. Other rows match.

04 What is the table load of the GSF-2232?

3,000 kg/m2, stated per square metre of the 2,200 x 3,200 mm (86.6 x 126.0 in) table. Because the table is fixed, the load does not affect how the axes move.
