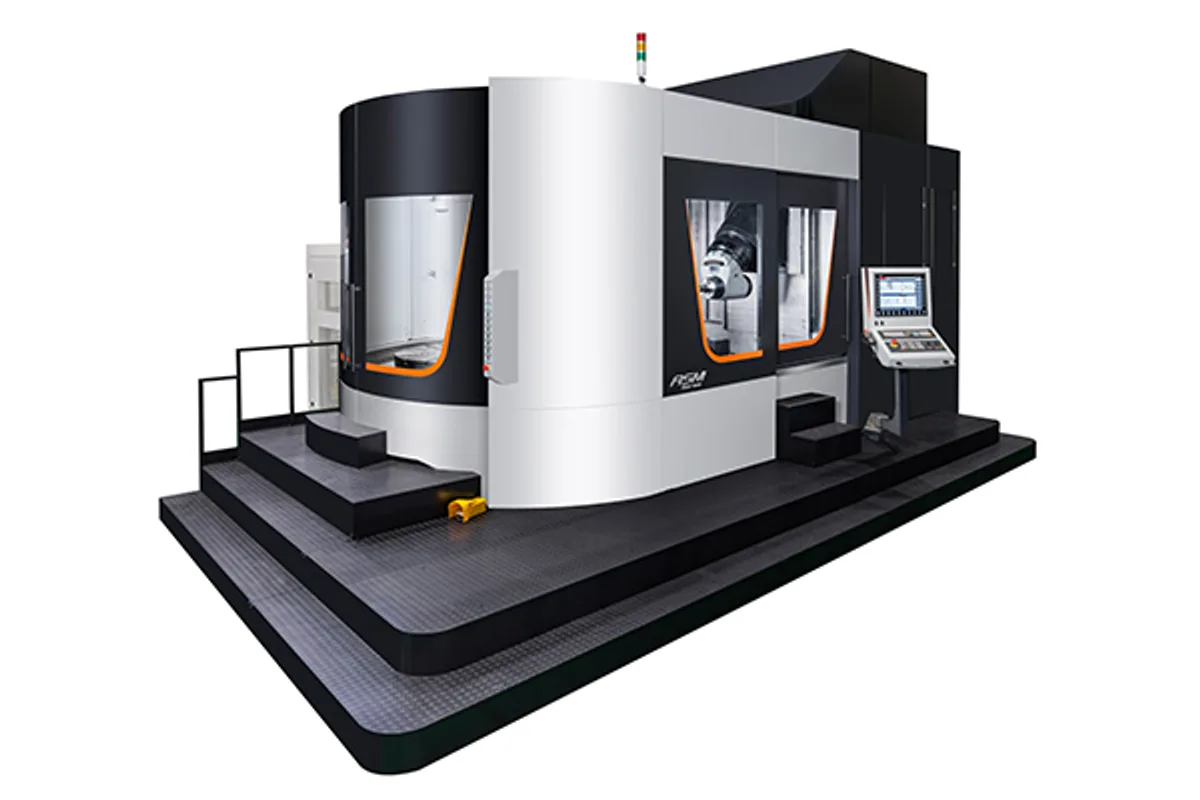

Vision Wide ASM-1012
Image: visionwide-tech.com, Vision Wide
Key Specifications
Max Spindle
x axis travel
y axis travel
z axis travel
table diameter
max table load central area
How much does the Vision Wide ASM-1012 cost?
Price estimate
We do not have a price for the Vision Wide ASM-1012 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Vision Wide ASM-1012 is a five-axis universal machining center built around a round table and a 45° universal head. The table is Ø1,000 mm (Ø39.4 in) and carries 2,000 kg (4,409 lb) in its central area; travels are 1,000 mm (39.4 in) in X, 1,260 mm (49.6 in) in Y and 1,050 mm (41.3 in) in Z.
Vision Wide calls the ASM its first 5-axis CNC turning and milling machining center and names aerospace components, tire molds, turbine blades and aluminum parts as the target work. The head and the rotary shafts use built-in D.D motors. The maker also says topology analysis was used to set the distance between the tool center point and the B-axis transmission; a short distance there keeps the linear axes from having to make large moves each time the head tilts.
It is a fast machine. Rapid traverse is 40 / 40 / 40 m/min and cutting feed 24 / 24 / 24 m/min, with a spindle speed of 10,000 rpm on the standard CM21X-01-10 head and an HSK-A100 interface.
The specification table prints an ASM-1012 FD column with the same figures in every row. The page is titled for both versions but does not state what the FD adds, so ask the maker before choosing between them.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 1,000 mm (39.4 in) |
| Y Axis Travel | 1,260 mm (49.6 in) |
| Z Axis Travel | 1,050 mm (41.3 in) |
| Table Diameter | Ø1,000 mm (Ø39.4 in) |
| Max Table Load Central Area | 2,000 kg (4,409 lb) |
| Max Spindle Speed | 10,000 rpm |
| Cutting Feed Rate | 24 / 24 / 24 m/min |
| Rapid Traverse Xyz | 40 / 40 / 40 m/min |
Specifications sourced from visionwide-tech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Rapid traverse of 40 / 40 / 40 m/min and cutting feed of 24 / 24 / 24 m/min
- 45° universal head with built-in D.D motors on the rotary shafts
- Z travel of 1,050 mm (41.3 in) over a Ø1,000 mm (Ø39.4 in) table
- X/Y/Z axis linear scale and HEIDENHAIN TNC 640 Controller as standard
- Horizontal chain type magazine with 40 tools as standard
Limitations
- Table load of 2,000 kg (4,409 lb), measured in the central area
- X travel of 1,000 mm (39.4 in) is the shortest in the series
- The page does not say how the ASM-1012 FD, with identical figures, differs
Best For
Frequently Asked Questions
01
A 5-axis universal machining center with a round table and a 45° universal head. Vision Wide describes the ASM as its first 5-axis CNC turning and milling machining center, aimed at aerospace components, tire molds, turbine blades and aluminum parts.
02
X travel 1,000 mm (39.4 in), Y travel 1,260 mm (49.6 in), Z travel 1,050 mm (41.3 in). The table diameter is Ø1,000 mm (Ø39.4 in) and the load in the central area is 2,000 kg (4,409 lb).
03
The published table shows none: every row is the same for both. The page is headed ASM/ASM-FD Series and gives no description of the FD version, so the difference has to be confirmed with Vision Wide.
04
The standard head is listed as CM21X-01-10 / 10,000 rpm / HSK-A100. Options include CG30X-01-07 / 7,000 rpm / HSK-A100 and HF29X-01-24 / 24,000 rpm / HSK-A63, plus two heads with an HSK-T100 interface.
