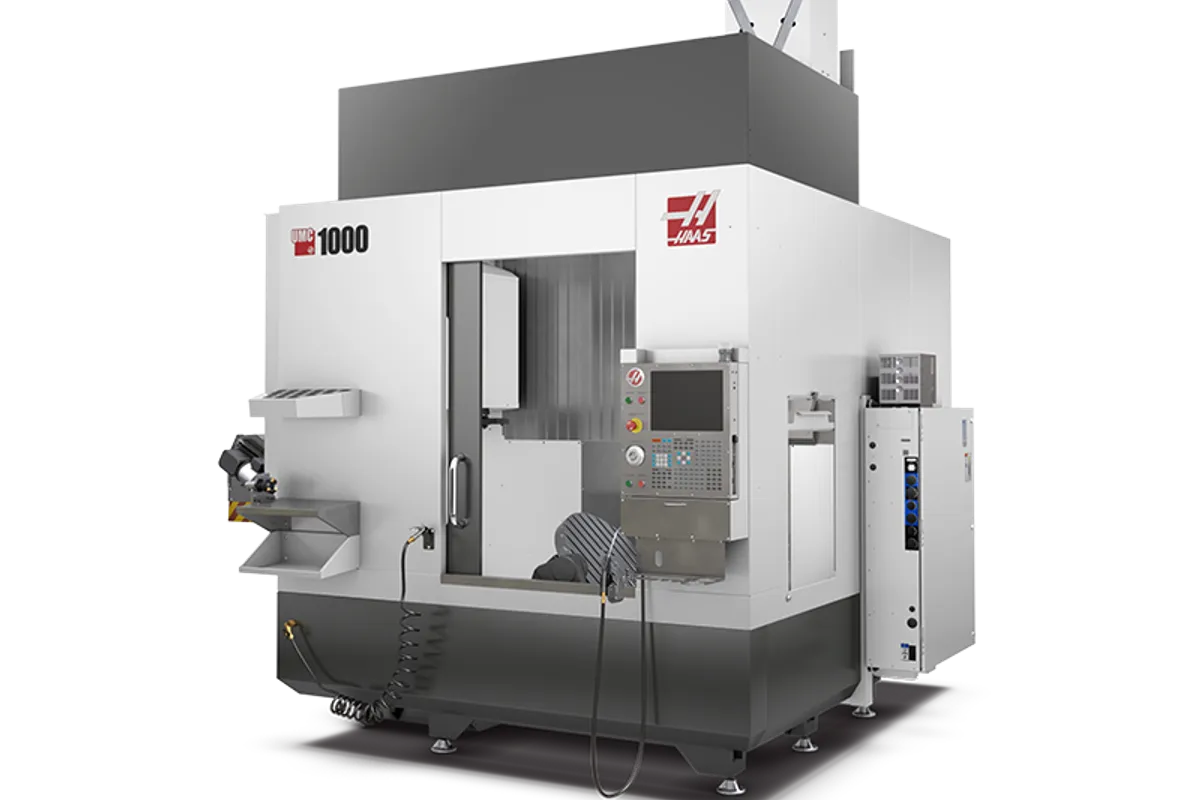

Haas UMC-1000

List US$251,995 Specs verified 2026-10-02 · haascnc.com Updated 2026-10-02

Key Specifications

X Travel

40 in (1,016 mm)

Y Travel

25 in (635 mm)

Z Travel

25 in (635 mm)

Max Spindle

8,100 rpm

Spindle Taper

CT40 / BT40 / HSK-A63

Tool Capacity

30+1

How much does the Haas UMC-1000 cost?

Manufacturer list price

US$251,995

As published by Haas, verified 2026-10-02. Options, tooling, freight and installation are extra.

Overview

The Haas UMC-1000 is a 5-axis trunnion mill for parts up to 1,000 lb (454 kg): a 25 in (635 mm) platter, 34 in (864 mm) of part swing and 40 × 25 × 25 in (1,016 × 635 × 635 mm) of travel. It uses the 30 hp (22.4 kW), 8,100 rpm, 40-taper spindle, and the starting price Haas publishes is US$251,995.

A platter load of 1,000 lb changes what the rotary figures mean. B has 2,240 ft-lbf (3,037 N·m) of torque and a 2,000 ft-lbf (2,712 N·m) brake. C has 1,854 ft-lbf (2,514 N·m) and a 900 ft-lbf (1,220 N·m) brake. A heavy part mounted off-centre and tilted loads those brakes with its own weight before the cut adds anything, so keep the centre of mass close to the platter and close to the C axis. Both axes run at 50°/sec through cycloidal drives, and B tilts from +120° to -35°.

The spindle is modest for the size of part the machine accepts: 90 ft-lbf (122 N·m) at 2,000 rpm, with CT40, BT40 or HSK-A63 tooling limited to 12 in (305 mm) in length and 12 lb (5.4 kg). In practice that means big parts machined with ordinary 40-taper cuts, with Z thrust of 4,050 lbf (18,015 N) and 3,300 lbf (14,680 N) on X and Y. Spindle nose to platter spans 4 in (102 mm) to 29 in (737 mm).

Within the family, the UMC-1250 goes to 50 × 30 × 28 in (1,270 × 762 × 711 mm) with a 30 in (762 mm) platter at the same 1,000 lb (454 kg), while the UMC-1000-P swaps the round platter for a 40 × 15 in (1,016 × 381 mm) table limited to 350 lb (159 kg). The UMC-1000SS has the 12,000 rpm spindle and 1,200 ipm (30.5 m/min) rapids on this envelope.

Full Specifications

Parameter	Value
X-Axis Travel	40 in (1,016 mm)
Y-Axis Travel	25 in (635 mm)
Z-Axis Travel	25 in (635 mm)
Spindle Nose to Platter (max)	29 in (737 mm)
Spindle Nose to Platter (min)	4 in (102 mm)
Spindle Motor Power	30 hp (22.4 kW)
Max Spindle Speed	8,100 rpm
Spindle Torque	90 ft-lbf @ 2,000 rpm (122 N·m @ 2,000 rpm)
Spindle Drive	Inline Direct-Drive
Spindle Taper	CT40 / BT40 / HSK-A63
Spindle Bearing Lubrication	Air / Oil Injection
Spindle Cooling	Liquid Cooled
B Axis Travel	120 ° to -35 °
B Axis Max Speed	50 °/sec
B Axis Torque	2,240 ft-lbf (3,037 N·m)
B Axis Brake Torque	2,000 ft-lbf (2,712 N·m)
C Axis Travel	360 °
C Axis Max Speed	50 °/sec
C Axis Torque	1,854 ft-lbf (2,514 N·m)
C Axis Brake Torque	900 ft-lbf (1,220 N·m)
C Axis Max Part Swing	34 in (864 mm)
Platter Diameter	25 in (635 mm)
Max Platter Load	1,000 lb (454 kg)
Max Platter Load with Pallet Pool	200 lb (90.7 kg)
Platter T Slot Width	0.626 in to 0.63 in (15.9 mm to 16 mm)
Platter T Slots	7
Max Cutting Feedrate	650 ipm (16.5 m/min)
Rapid Traverse Rate	900 ipm (22.9 m/min)
Max Thrust X	3,300 lbf (14,680 N)
Max Thrust Y	3,300 lbf (14,680 N)
Max Thrust Z	4,050 lbf (18,015 N)
Tool Changer Type	SMTC
Tool Capacity	30+1
Max Tool Diameter (full magazine)	2.5 in (64 mm)
Max Tool Diameter (adjacent pockets empty)	5 in (127 mm)
Max Tool Length	12 in (305 mm)
Max Tool Weight	12 lb (5.4 kg)
Tool Change (tool-to-tool)	2.8 s
Tool Change (chip-to-chip)	3.6 s
Coolant Capacity	55 gal (208 L)
Air Required	4 scfm @ 100 psi (113 L/min @ 6.9 bar)
Inline Air Hose	3/8 in
Air Coupler	3/8 in
Air Pressure Min	80 psi (5.5 bar)
Electrical Service (low voltage)	220 VAC 3-phase, 70 A
Electrical Service (high voltage)	440 VAC 3-phase, 35 A
Shipping Domestic Pallet	168 × 94 × 116 in (427 × 239 × 295 cm)
Shipping Export Pallet	174 × 92 × 101 in (442 × 234 × 257 cm)
Machine Weight	15,600 lb (7,077 kg)
Shipping Domestic Pallet with 70 plus 1 SMTC	168 × 94 × 130 in (427 × 239 × 330 cm)
Shipping Export Crate with 70 plus 1 SMTC	168 × 96 × 141.5 in (427 × 244 × 359 cm)
Machine Weight with 70 plus 1 SMTC	17,540 lb (7,956 kg)
Shipping Export Crate for Sheet Metal	96 × 26 × 44 in (243 × 65 × 110 cm)
Shipping Domestic Pallet with Conveyor 120 plus 1 SMTC	176 × 122.5 × 110 in (447 × 311 × 279 cm)

Specifications sourced from haascnc.com — verified 2026-10-02

Strengths & Limitations

Strengths

1,000 lb (454 kg) platter capacity on a 25 in (635 mm) platter
34 in (864 mm) maximum part swing with 25 in (635 mm) of Y and Z travel
2,240 ft-lbf (3,037 N·m) B-axis torque with a 2,000 ft-lbf (2,712 N·m) brake
Choice of CT40, BT40 or HSK-A63 spindle taper on a 30 hp (22.4 kW) spindle
Standard rollaway coolant tank and front-mounted control pendant in Haas's feature list

Limitations

Rapids of 900 ipm (22.9 m/min) and a 650 ipm (16.5 m/min) cutting feed across 40 in (1,016 mm) of X
Rotary axes limited to 50°/sec
Pallet pool reduces the platter load from 1,000 lb (454 kg) to 200 lb (90.7 kg)
Spindle torque of 90 ft-lbf (122 N·m) is small relative to the 1,000 lb (454 kg) parts the platter accepts

Best For

Large 5-axis parts up to 1,000 lb (454 kg) Five-sided work on castings and weldments within 34 in (864 mm) of swing Mould bases and plates on a 25 in (635 mm) platter with 7 T-slots 3+2 machining with a 2,000 ft-lbf (2,712 N·m) B-axis brake

Frequently Asked Questions

01 What is the largest part the UMC-1000 can handle?

The platter is 25 in (635 mm) in diameter and rated for 1,000 lb (454 kg), with a maximum part swing of 34 in (864 mm). X travel is 40 in (1,016 mm); Y and Z are 25 in (635 mm) each. With a pallet pool the platter load is limited to 200 lb (90.7 kg).

02 How does the UMC-1000 differ from the UMC-1000-P?

The travels and spindle are the same; the rotary arrangement is not. The UMC-1000 has a 25 in (635 mm) round platter for 1,000 lb (454 kg), with B tilting from +120° to -35° and a 360° C axis. The UMC-1000-P has a 40 × 15 in (1,016 × 381 mm) table for 350 lb (159 kg), with a 360° A axis and B tilting ±45°.

03 Is the UMC-1250 a better fit for larger parts?

It has more room but no more load capacity. The UMC-1250 lists 50 × 30 × 28 in (1,270 × 762 × 711 mm) of travel and a 30 in (762 mm) platter, with the same 1,000 lb (454 kg) platter load, spindle and feedrates as the UMC-1000. The UMC-1250 ships at 18,820 lb (8,536 kg) against 15,600 lb (7,077 kg) for the UMC-1000.

04 What are the rotary axis speeds and torques?

Both axes have a maximum speed of 50°/sec. B is rated at 2,240 ft-lbf (3,037 N·m) with a 2,000 ft-lbf (2,712 N·m) brake, and C at 1,854 ft-lbf (2,514 N·m) with a 900 ft-lbf (1,220 N·m) brake. Haas lists cycloidal drives on the rotary axes.

05 What should I know before installing a UMC-1000?

It ships at 15,600 lb (7,077 kg) on a 168 × 94 × 116 in (427 × 239 × 295 cm) domestic pallet; with the 70+1 tool changer the listing is 17,540 lb (7,956 kg). Power is 70 A at 220 VAC three-phase or 35 A at 440 VAC. Air use is 4 scfm at 100 psi (113 L/min at 6.9 bar), and the coolant tank holds 55 gal (208 L).
